Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor resistor to the HVAC module assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

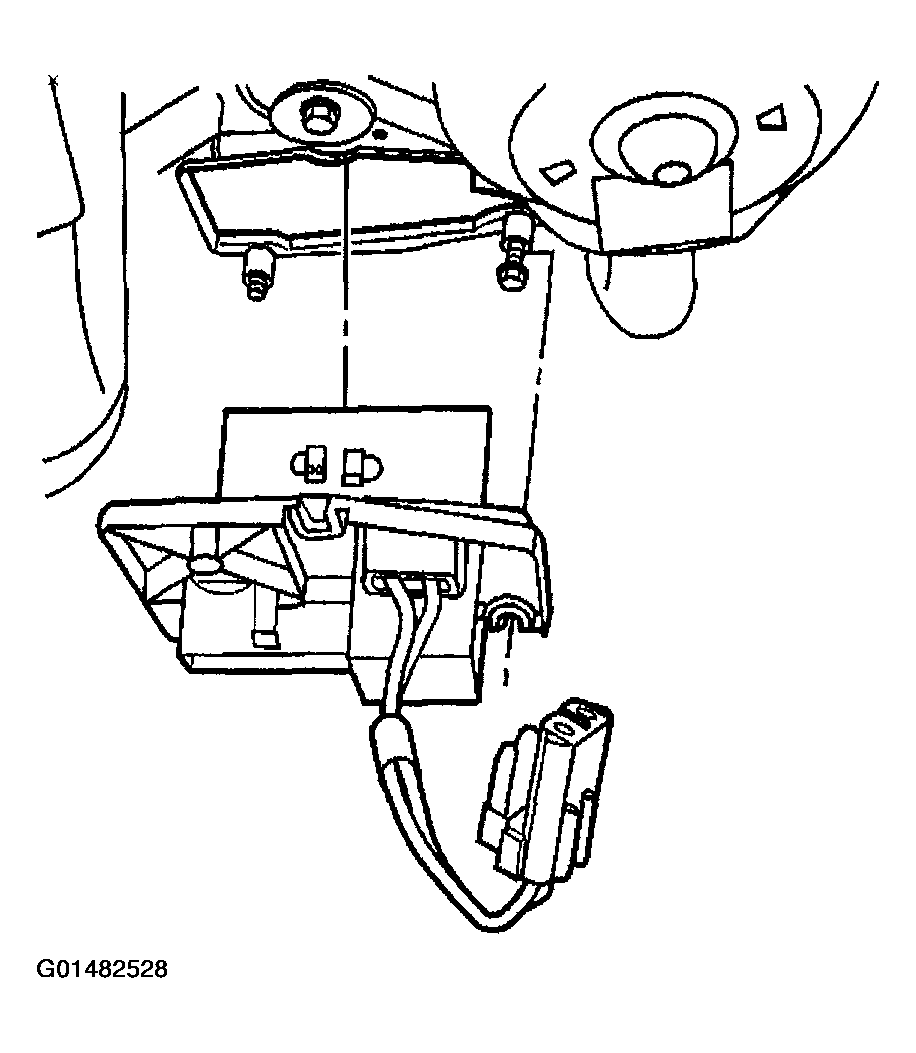

    Fig 1: Installing Blower Motor Resistor To HVAC Module Assembly
    G01482528Courtesy of GENERAL MOTORS CORP.
  2. Install the rearward blower motor resistor mounting screw.

    Tighten

    Tighten all the screws to 1.8 N.m (16 lb in).

  3. Connect the electrical connector to the blower motor resistor.

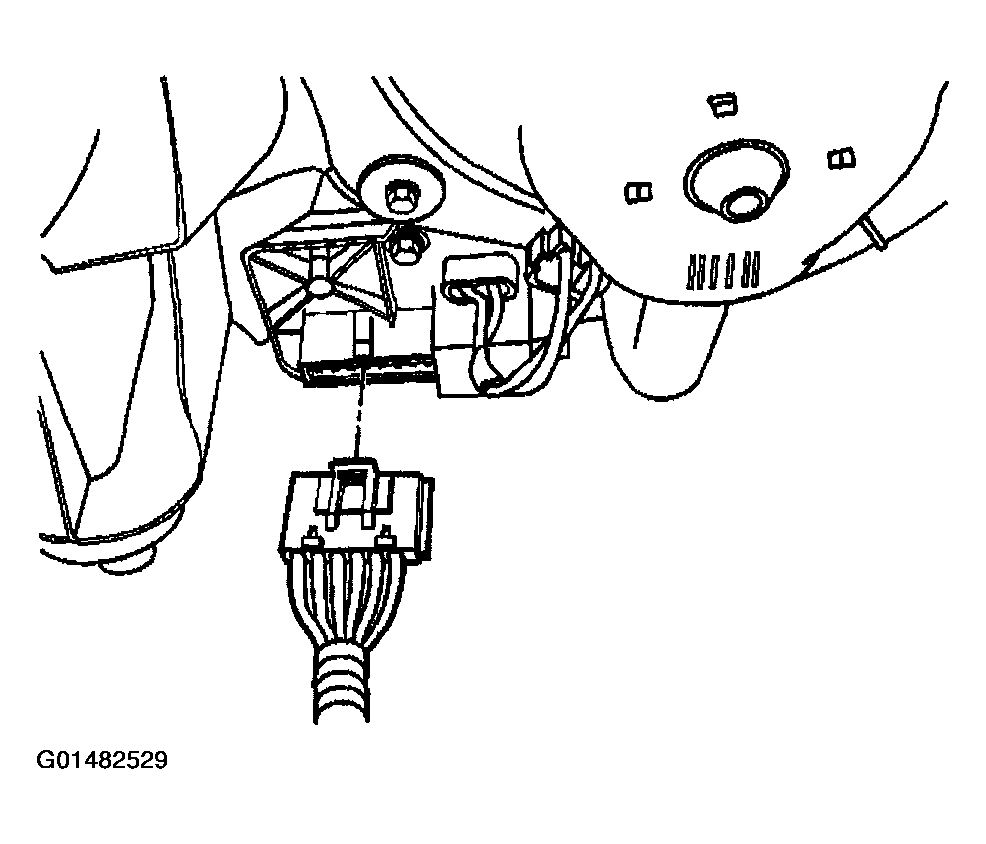

    Fig 2: Connecting Electrical Connector To Blower Motor Resistor
    G01482529Courtesy of GENERAL MOTORS CORP.
  4. Install the blower motor to the HVAC module assembly.
  5. Install the blower motor mounting screws.

    Tighten

    Tighten the screws to 1.8 N.m (16 lb in).

  6. Connect the electrical connector to the blower motor.

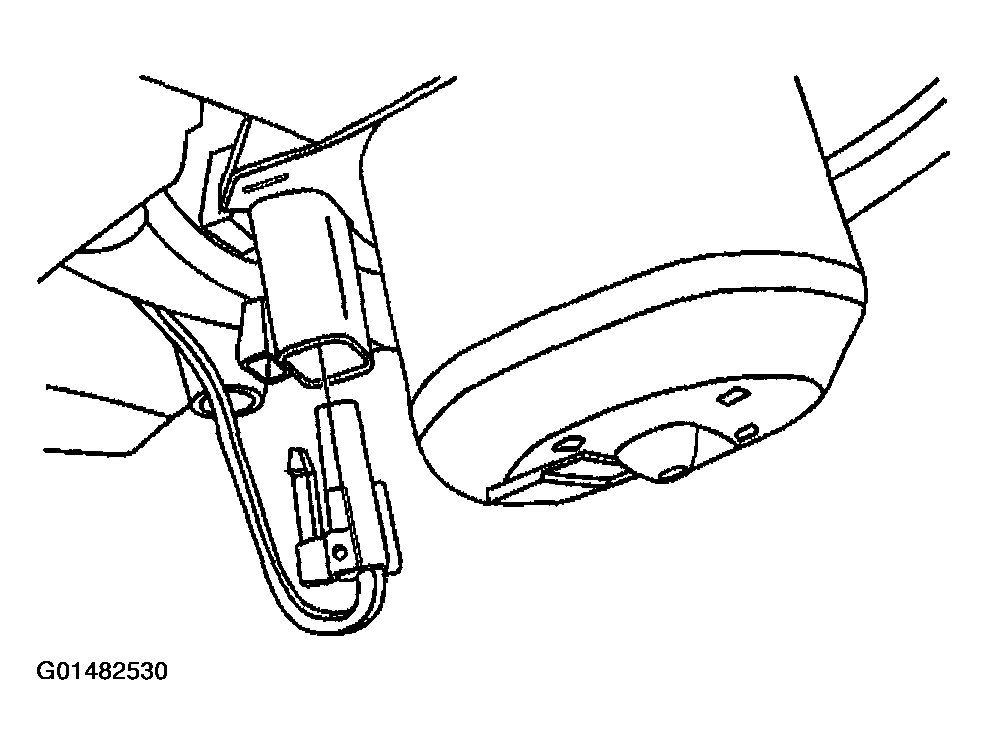

    Fig 3: Connecting Electrical Connector To Blower Motor
    G01482530Courtesy of GENERAL MOTORS CORP.
  7. Install the right side I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT  in Instrument Panel, Gages and Console.
