Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory panel from the left rear quarter trim.
  2. Disconnect the auxiliary blower motor resistor electrical connector.
  3. Remove the auxiliary blower motor resistor screws.
  4. Remove the auxiliary blower motor resistor from the auxiliary HVAC module assembly.

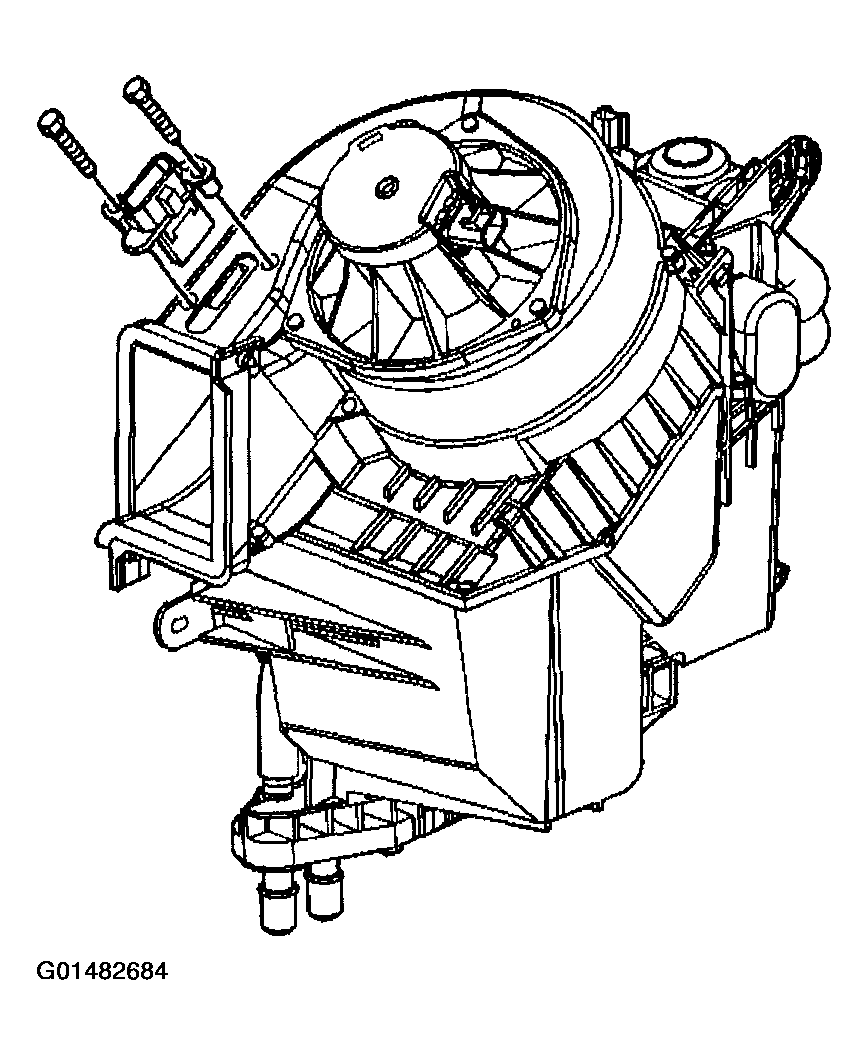

    Fig 1: Removing Auxiliary Blower Motor Resistor & Screws
    G01482684Courtesy of GENERAL MOTORS CORP.
