Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary blower motor resistor to the auxiliary HVAC module assembly.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the auxiliary blower motor resistor screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

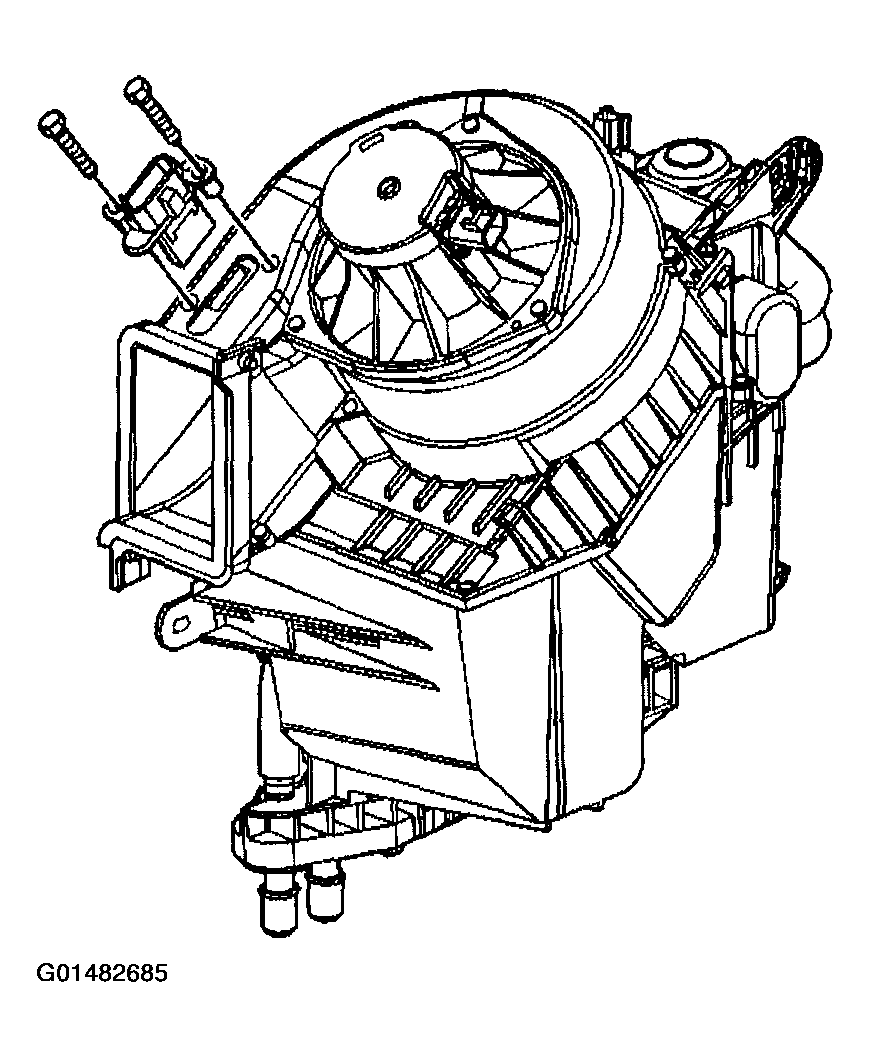

    Fig 1: Installing Auxiliary Blower Motor Resistor & Screws
    G01482685Courtesy of GENERAL MOTORS CORP.
  3. Connect the auxiliary blower motor resistor electrical connector.
  4. Install the accessory panel from the left rear quarter trim panel.
