Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right side I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT  in Instrument Panel, Gages and Console.
  2. Disconnect the blower motor electrical connector.
  3. Remove the blower motor mounting screws.

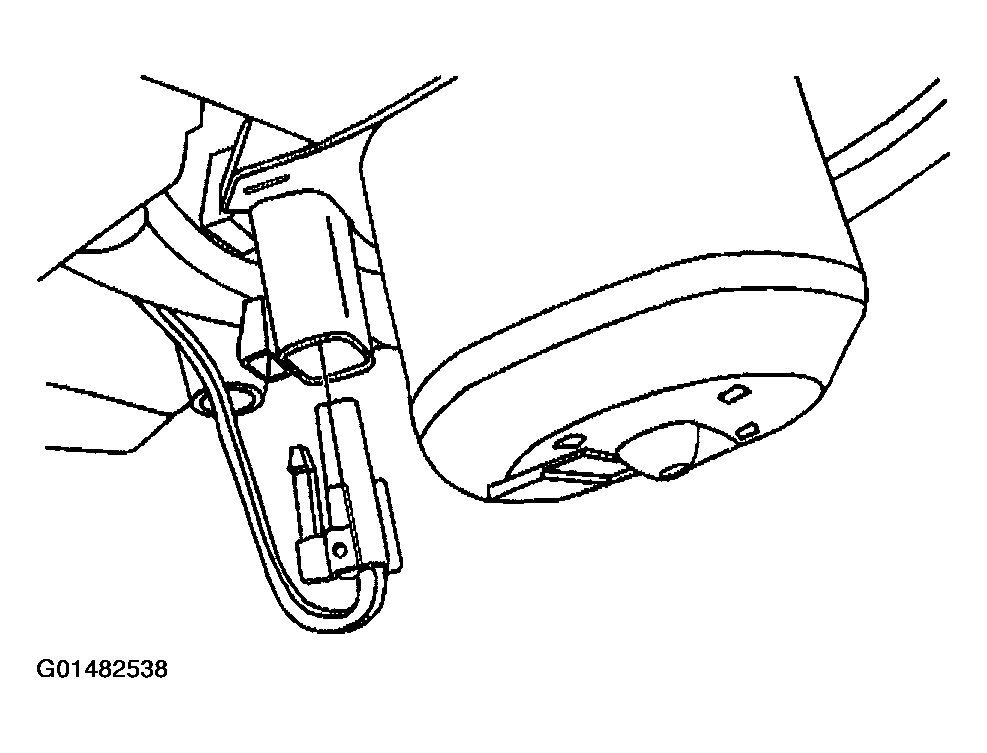

    Fig 1: Disconnecting Blower Motor Electrical Connector
    G01482538Courtesy of GENERAL MOTORS CORP.
  4. Remove the blower motor from the HVAC module assembly.

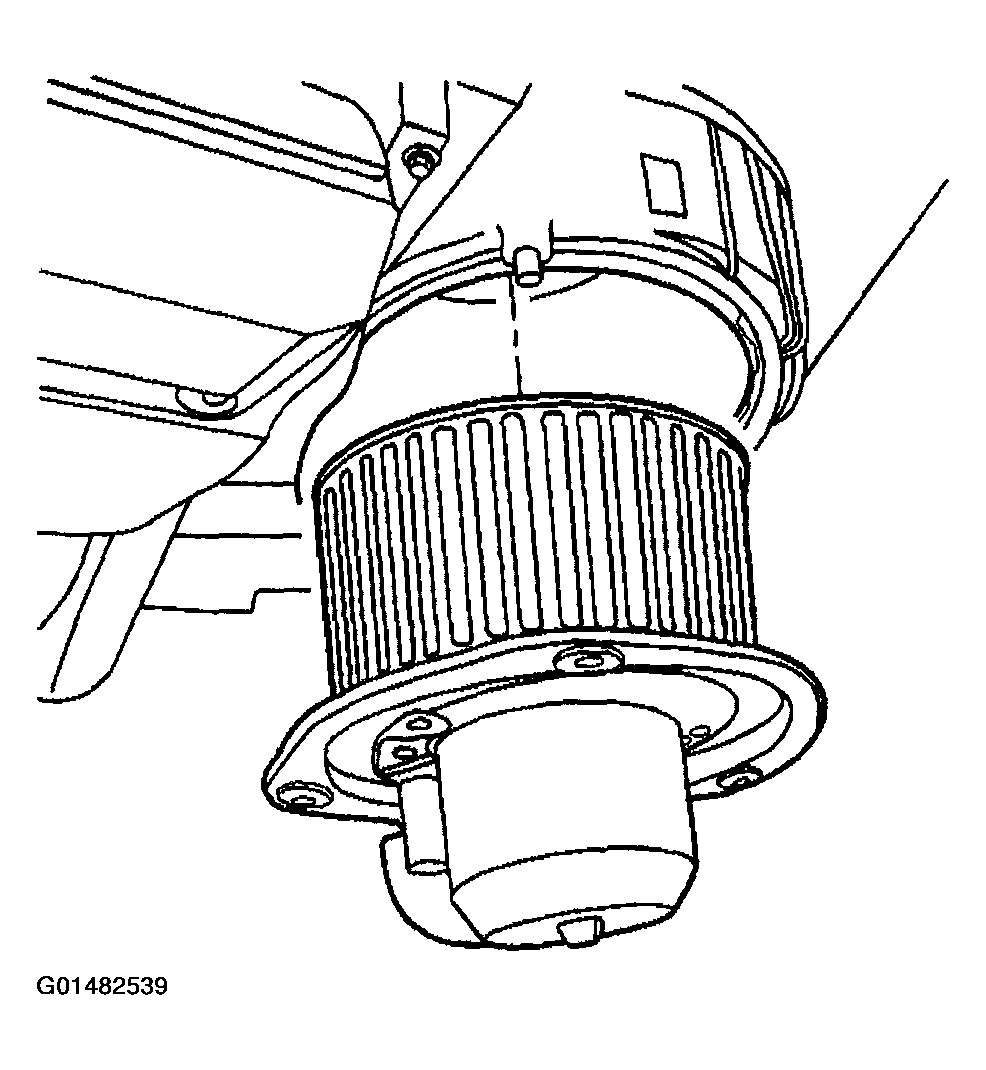

    Fig 2: Removing Blower Motor From HVAC Module Assembly
    G01482539Courtesy of GENERAL MOTORS CORP.
