Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the blower motor to the HVAC module assembly.

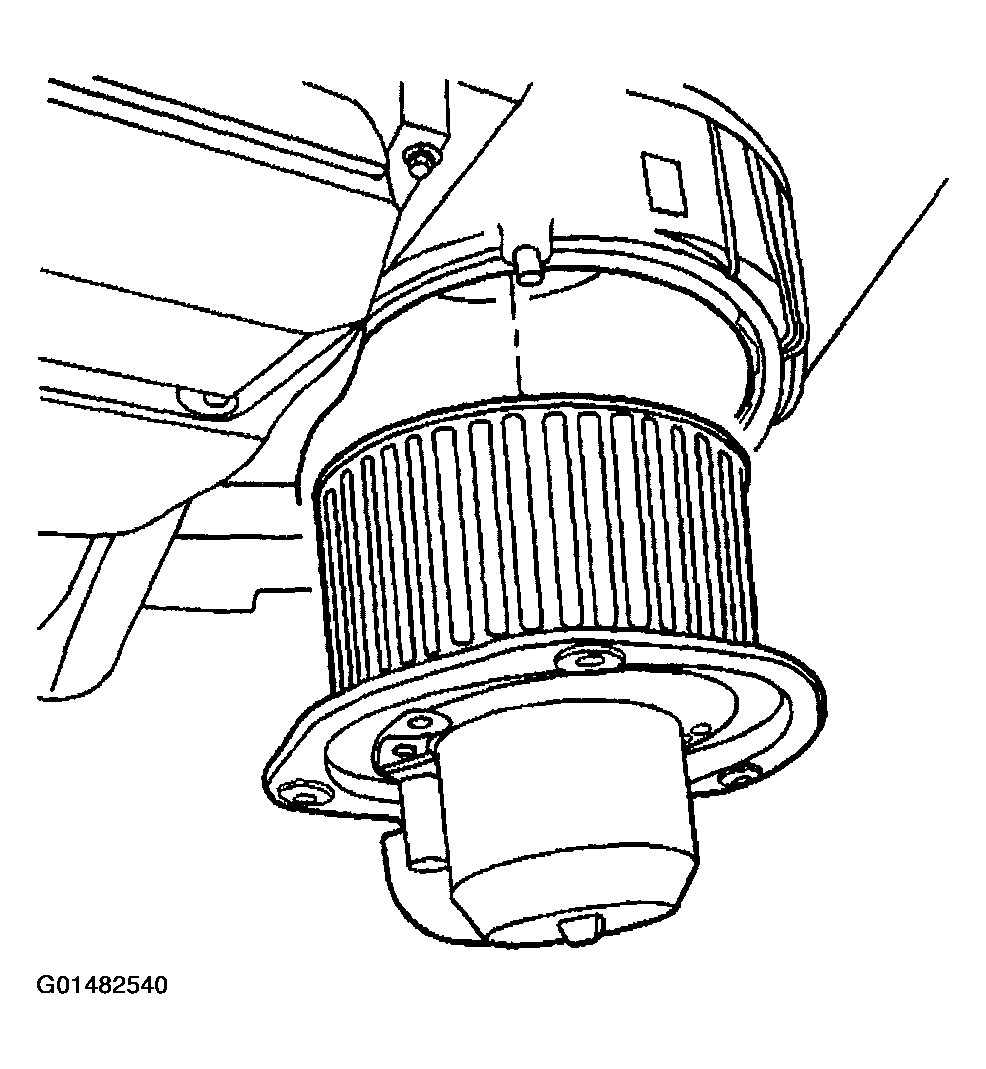

    Fig 1: Installing Blower Motor To HVAC Module Assembly
    G01482540Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the blower motor mounting screws.

    Tighten

    Tighten the screws to 1.8 N.m (16 lb in).

  3. Connect the blower motor electrical connector.

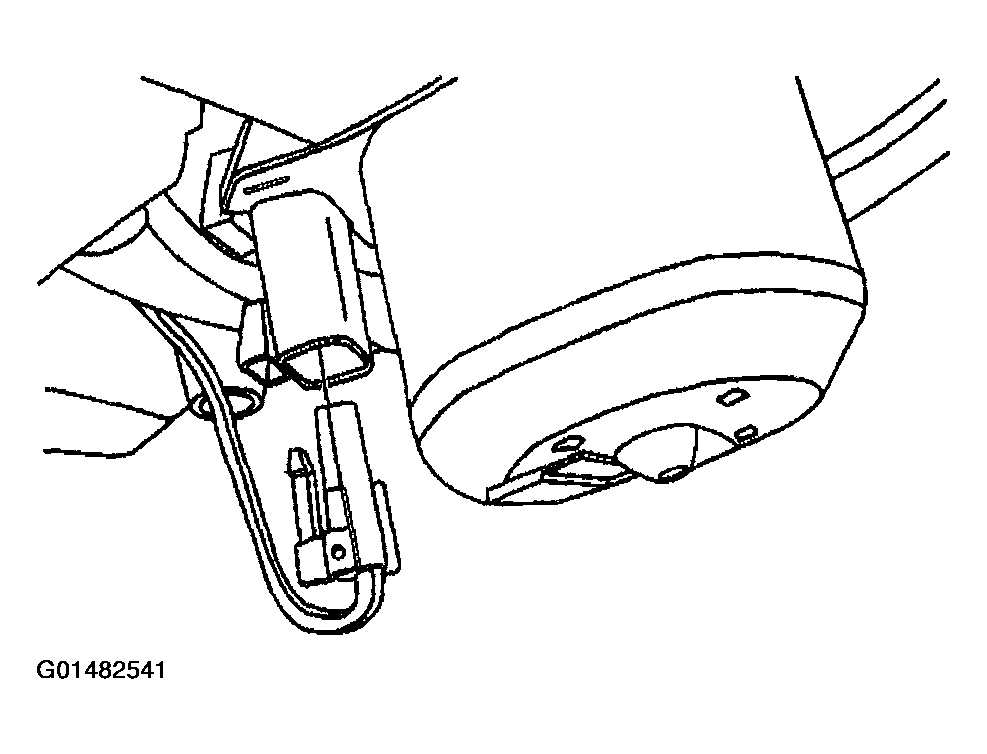

    Fig 2: Connecting Blower Motor Electrical Connector
    G01482541Courtesy of GENERAL MOTORS CORP.
  4. Install the right side I/P insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT  in Instrument Panel, Gages and Console.
