Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the accessory panel.
  2. Remove the screws from the hinged cover.
  3. Remove the cover from the rear trim panel.
  4. Release the tabs and pull out the trim panel.

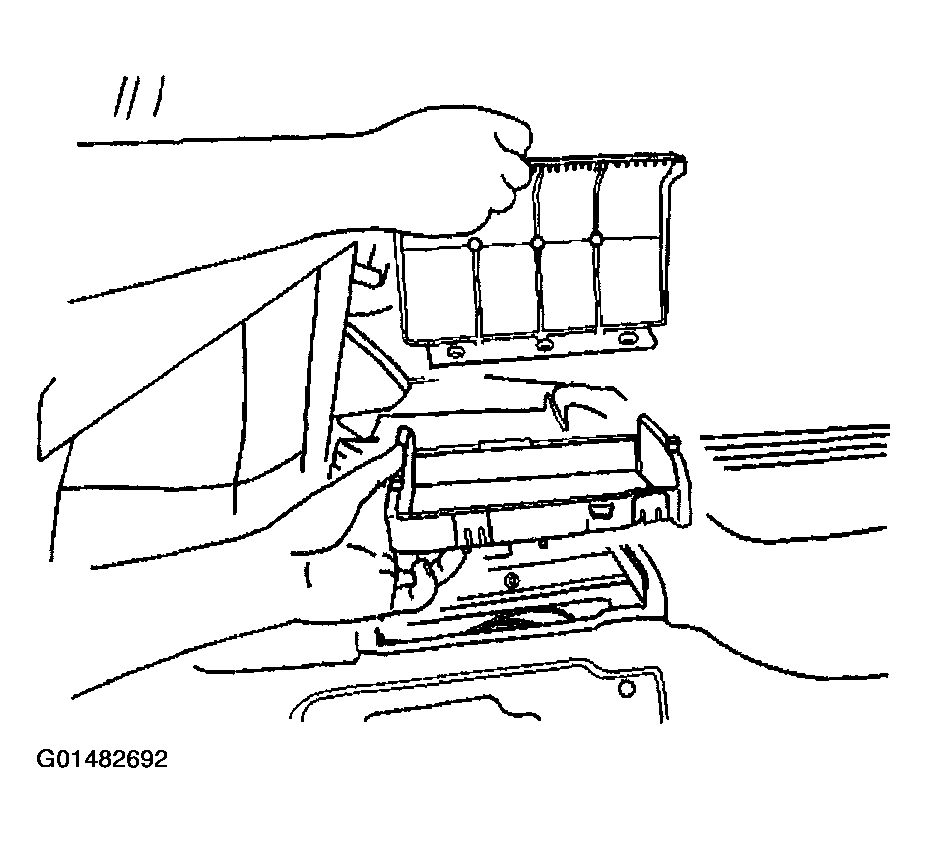

    Fig 1: Removing Cover From Rear Trim Panel
    G01482692Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the auxiliary blower motor electrical connector.
  6. Disconnect the auxiliary blower motor resistor electrical connector.
  7. Disconnect the auxiliary air temperature actuator electrical connector.
  8. Remove the auxiliary blower motor mounting screws.
  9. Remove the auxiliary blower motor from the blower motor housing.

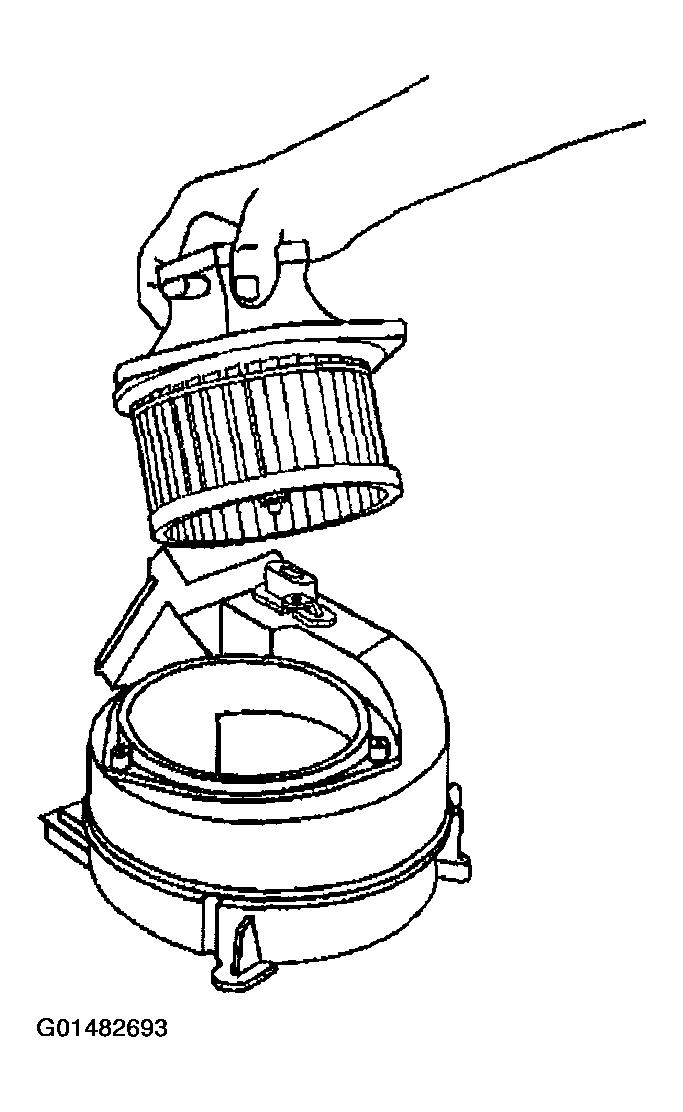

    Fig 2: Removing Auxiliary Blower Motor From Blower Motor Housing
    G01482693Courtesy of GENERAL MOTORS CORP.
