Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary blower motor to the blower motor housing.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the auxiliary blower motor mounting screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

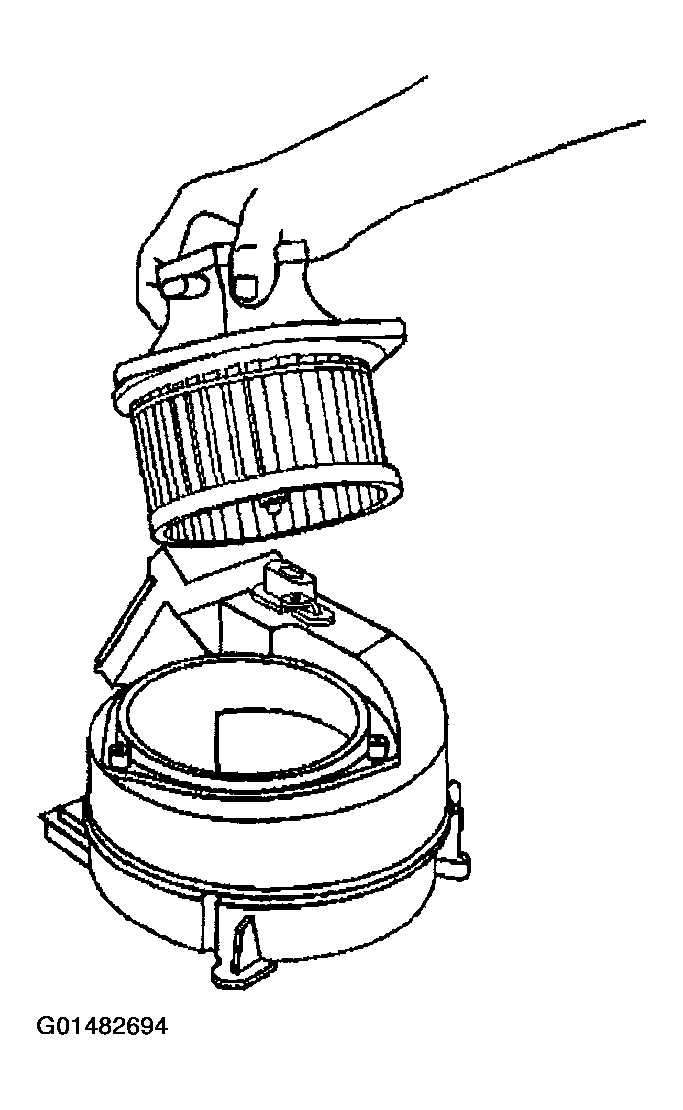

    Fig 1: Installing Auxiliary Blower Motor To Blower Motor Housing
    G01482694Courtesy of GENERAL MOTORS CORP.
  3. Connect the auxiliary air temperature actuator electrical connector.
  4. Connect the auxiliary blower motor resistor electrical connector.
  5. Connect the auxiliary blower motor electrical connector.
  6. Install the trim panel and press firmly into the tabs.
  7. Align the cover and fasten the screws.

    Tighten

    Tighten the screws to 2.5 N.m (22 lb in).

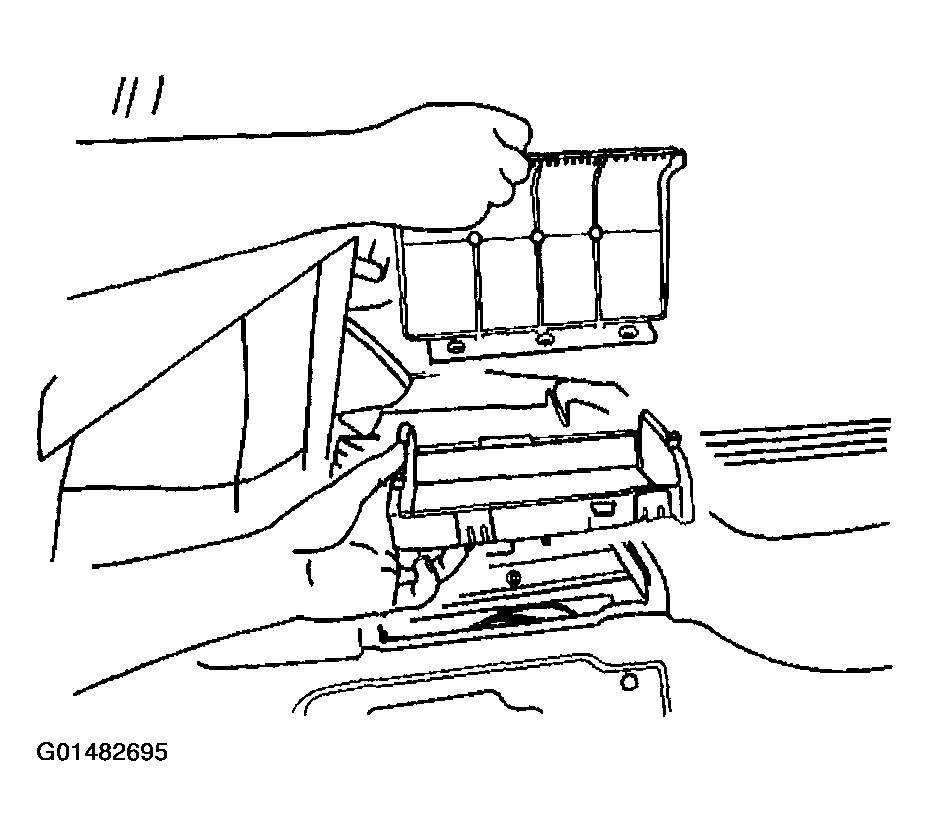

    Fig 2: Installing Cover To Trim Panel
    G01482695Courtesy of GENERAL MOTORS CORP.
  8. Install the accessory panel.
