Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary blower motor to the blower motor housing.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

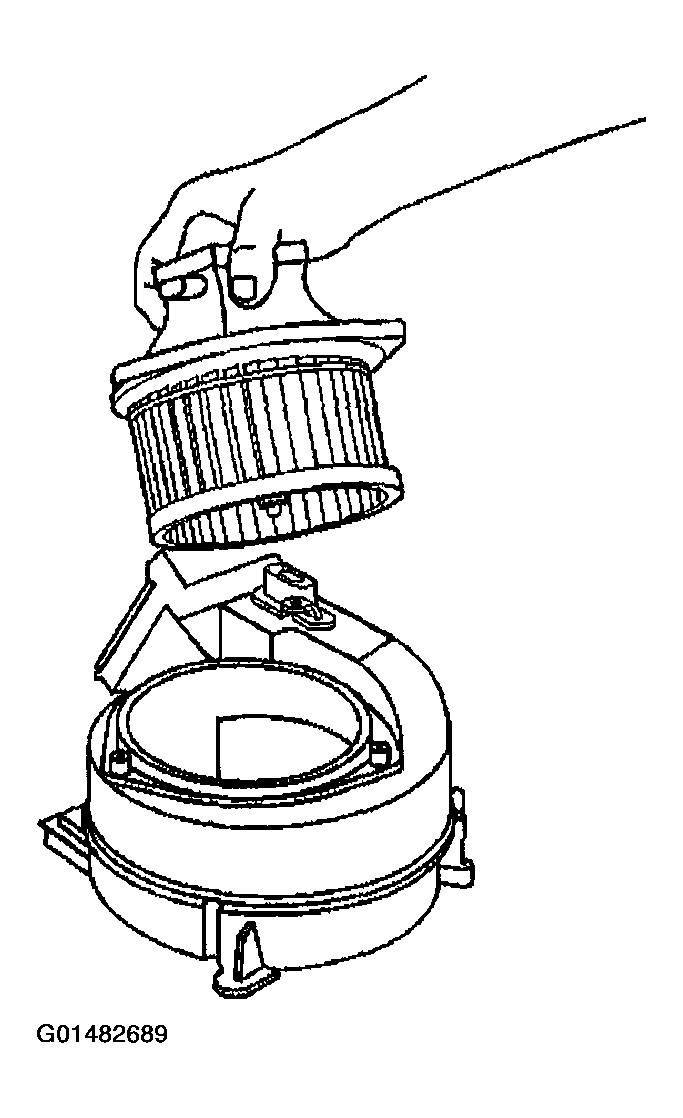

    Fig 1: Installing Auxiliary Blower Motor To Blower Motor Housing
    G01482689Courtesy of GENERAL MOTORS CORP.
  2. Install the auxiliary blower motor mounting screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  3. Install the blower motor housing to the auxiliary HVAC module assembly.

    Align the rear tabs of the blower motor housing to the HVAC module.

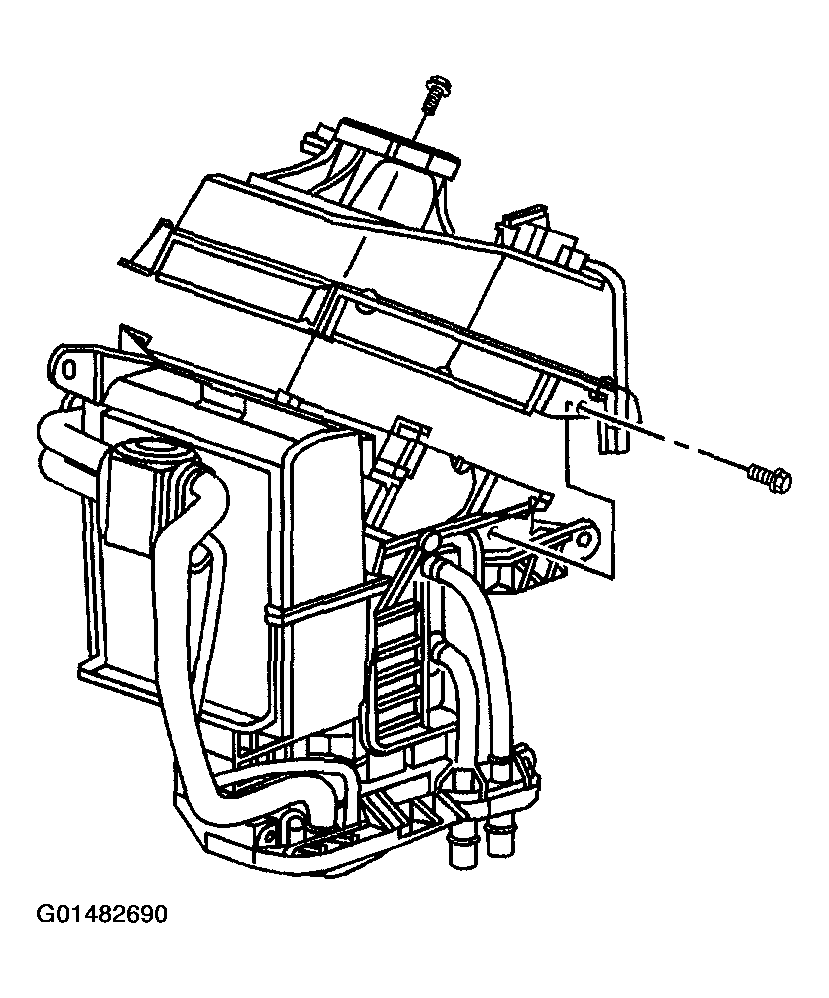

    Fig 2: Installing Blower Motor Housing To HVAC Module Assembly
    G01482690Courtesy of GENERAL MOTORS CORP.
  4. Install the auxiliary blower motor housing screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  5. Install the lower auxiliary air distribution duct.
  6. Install the lower auxiliary air distribution retainers.
  7. Install the lower auxiliary air distribution ducts bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

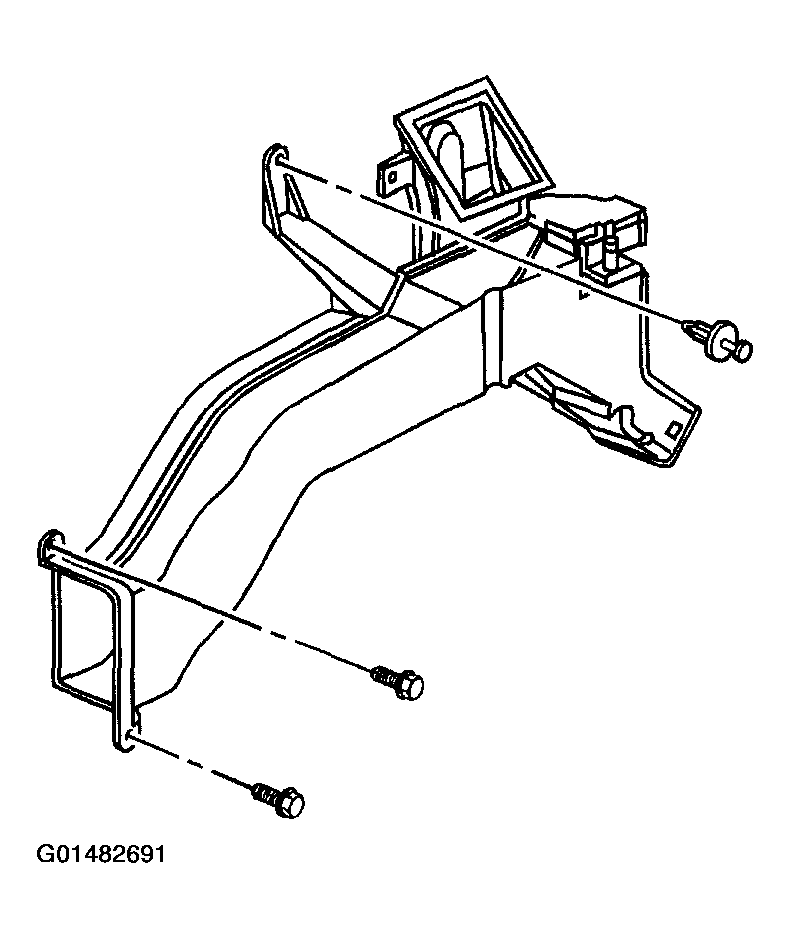

    Fig 3: Installing Lower Auxiliary Air Distribution Ducts & Bolts
    G01482691Courtesy of GENERAL MOTORS CORP.
  8. Connect the auxiliary blower motor resistor electrical connector.
  9. Connect the auxiliary blower motor electrical connector.
  10. Install the left lower quarter trim panel.
