Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the auxiliary air temperature door lever (1) to the auxiliary air temperature door.
  2. Install the auxiliary air temperature door to the auxiliary HVAC module.

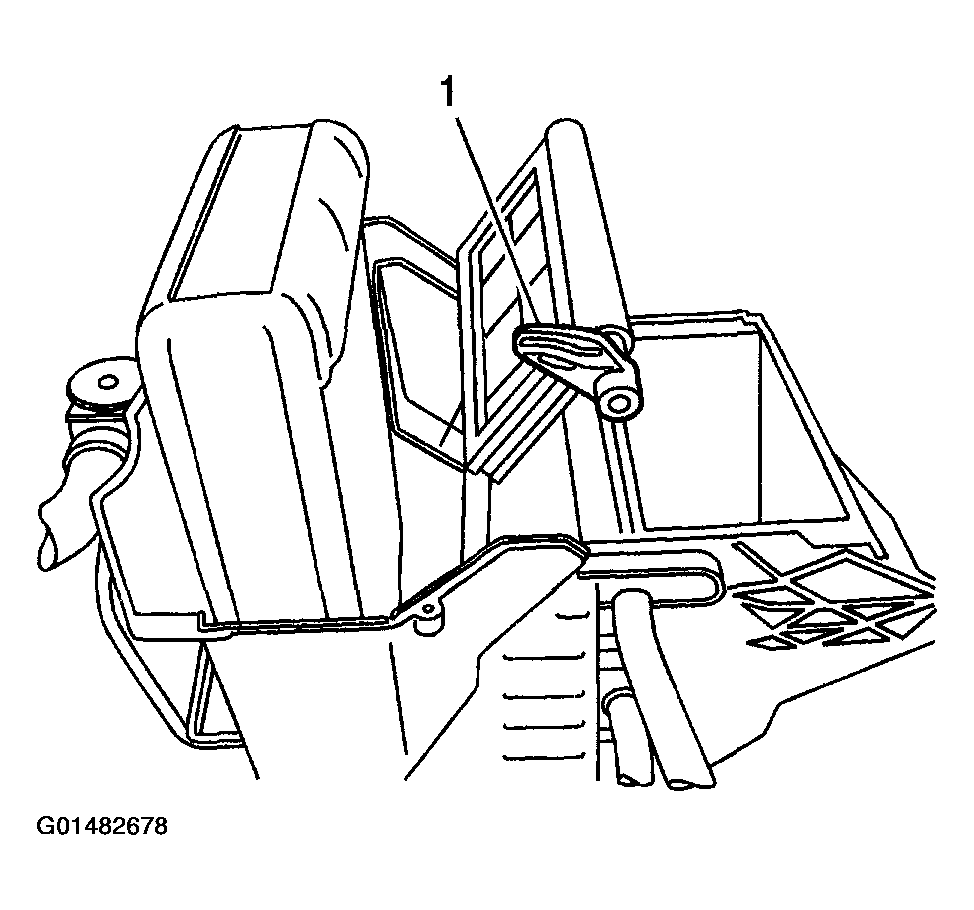

    Fig 1: Installing Auxiliary Air Temperature Door Lever
    G01482678Courtesy of GENERAL MOTORS CORP.
  3. Install the auxiliary evaporator core housing.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the auxiliary evaporator core housing screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

    Fig 2: Installing Auxiliary Evaporator Core Housing Screws
    G01482679Courtesy of GENERAL MOTORS CORP.
  5. Install the upper auxiliary HVAC module mounting bolt.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

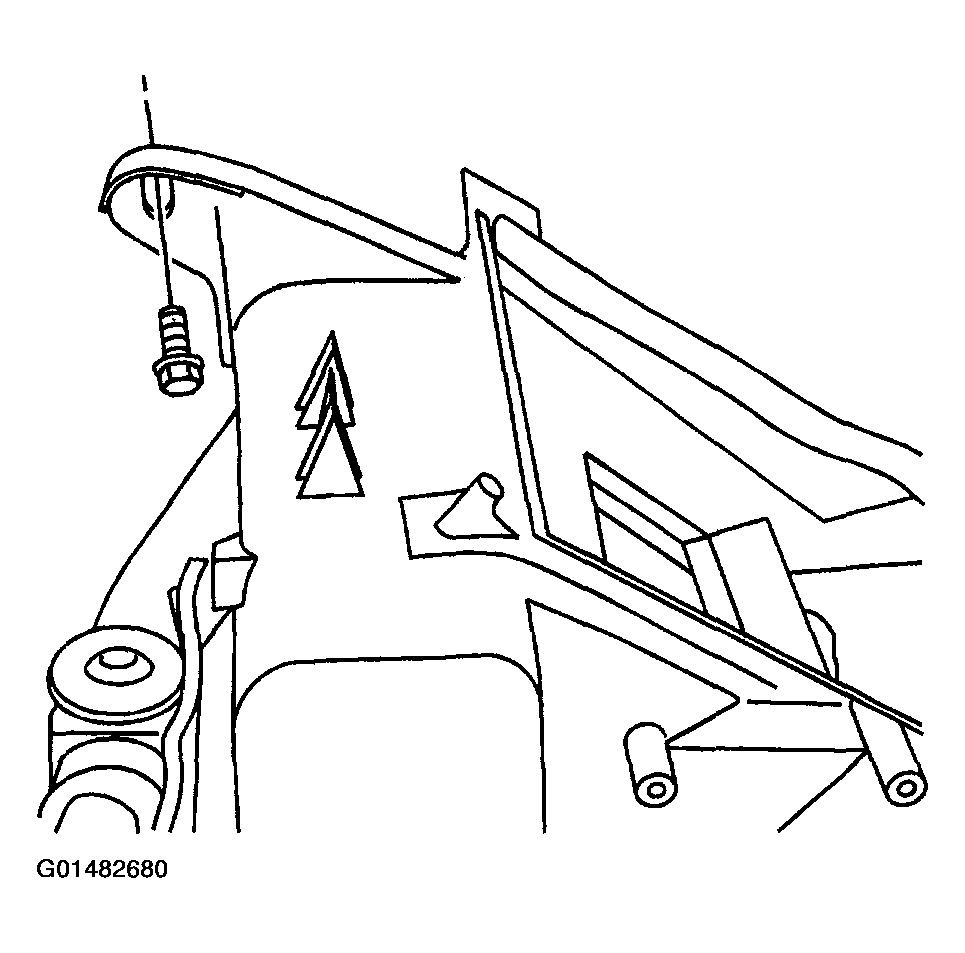

    Fig 3: Installing Upper Auxiliary HVAC Module Mounting Bolt
    G01482680Courtesy of GENERAL MOTORS CORP.
  6. Install the auxiliary temperature door actuator.
  7. Install the auxiliary temperature door actuator screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

  8. Connect the auxiliary temperature door actuator electrical connector.

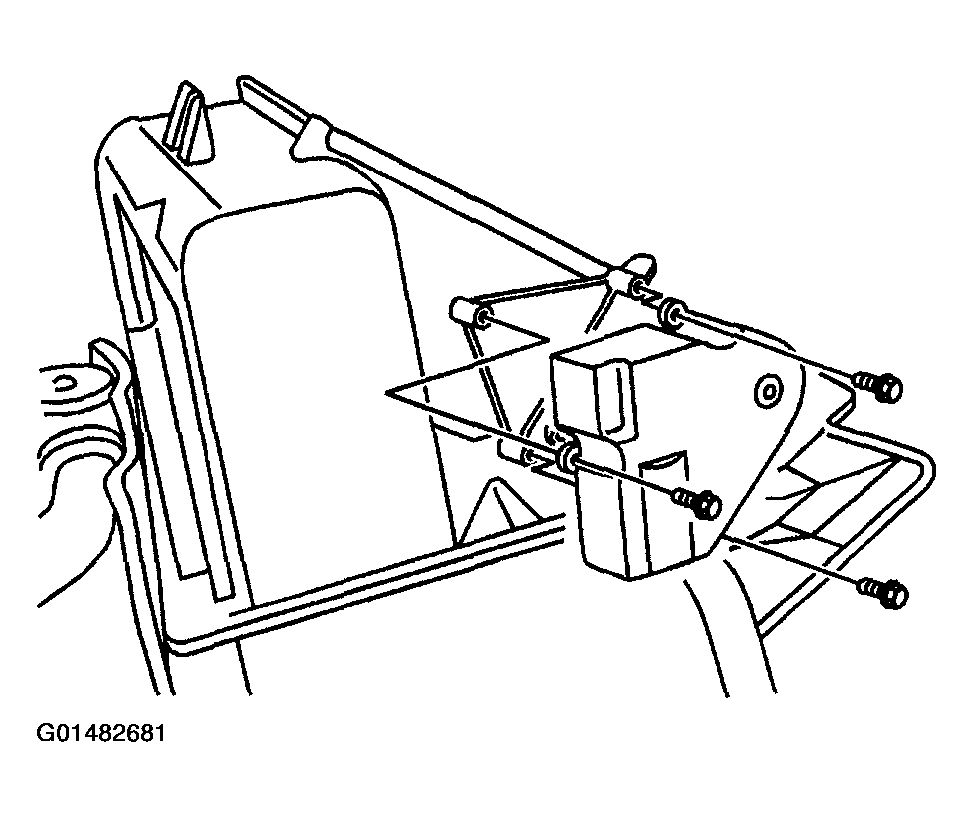

    Fig 4: Installing Auxiliary Temperature Door Actuator & Screws
    G01482681Courtesy of GENERAL MOTORS CORP.
  9. Install the blower motor housing to the auxiliary HVAC module assembly.

    Align the rear tabs of the blower motor housing to the HVAC module.

  10. Install the auxiliary blower motor housing screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 lb in).

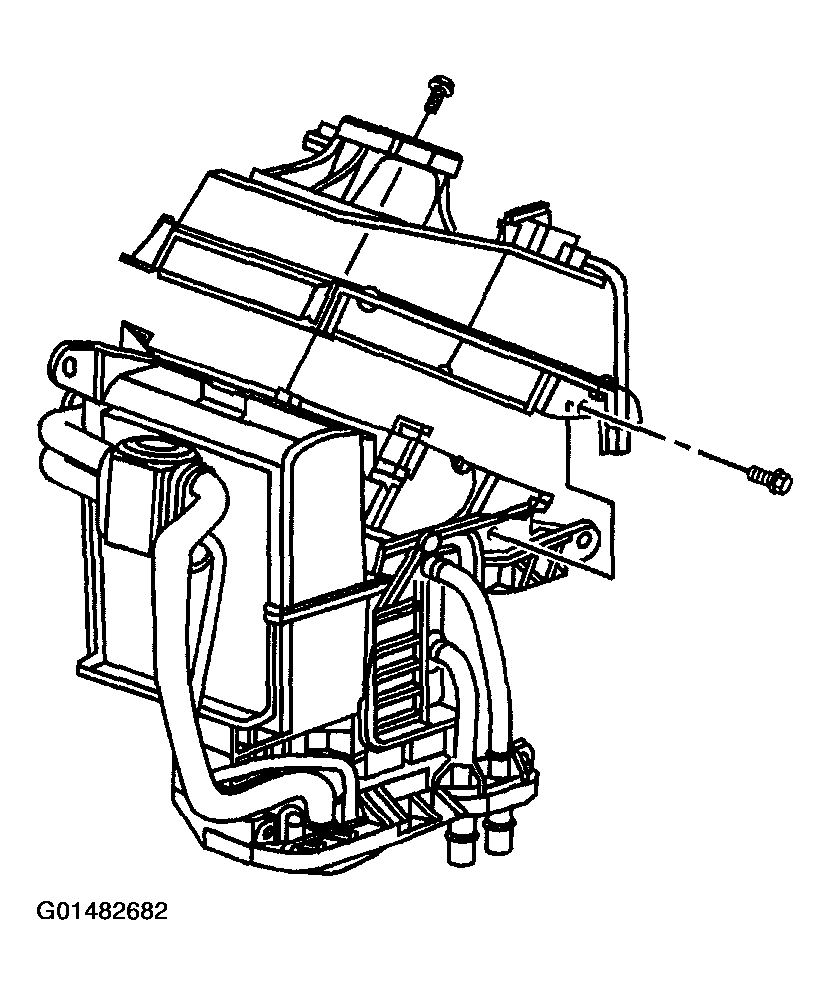

    Fig 5: Installing Auxiliary Blower Motor Housing & Screws
    G01482682Courtesy of GENERAL MOTORS CORP.
  11. Install the lower auxiliary air distribution duct.
  12. Install the lower auxiliary air distribution retainer.
  13. Install the lower auxiliary air distribution ducts bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

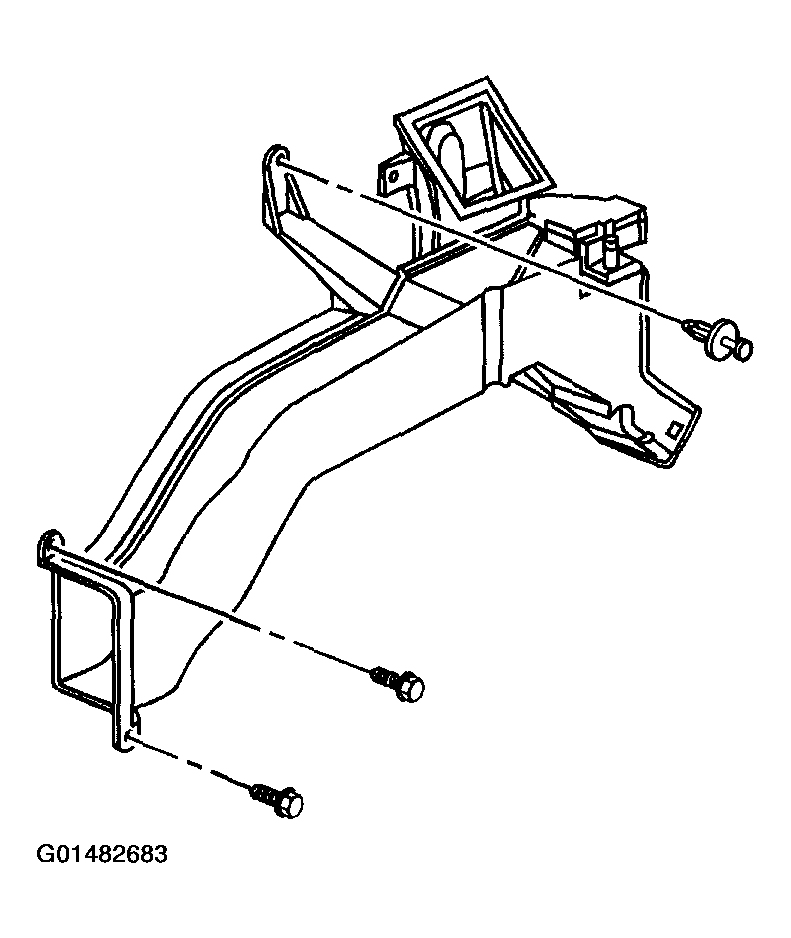

    Fig 6: Installing Lower Auxiliary Air Distribution Duct & Bolts
    G01482683Courtesy of GENERAL MOTORS CORP.
  14. Connect the auxiliary blower motor resistor electrical connector.
  15. Connect the auxiliary blower motor electrical connector.
  16. Install the left lower quarter trim panel.
