Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT  .
  2. Remove the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- LEFT  .
  3. Remove the IP compartment. Refer to COMPARTMENT REPLACEMENT -- INSTRUMENT PANEL (I/P)  .
  4. Remove the center floor air outlet. Refer to AIR OUTLET REPLACEMENT - CENTER FLOOR   .
  5. Remove the screws retaining the floor air outlet.

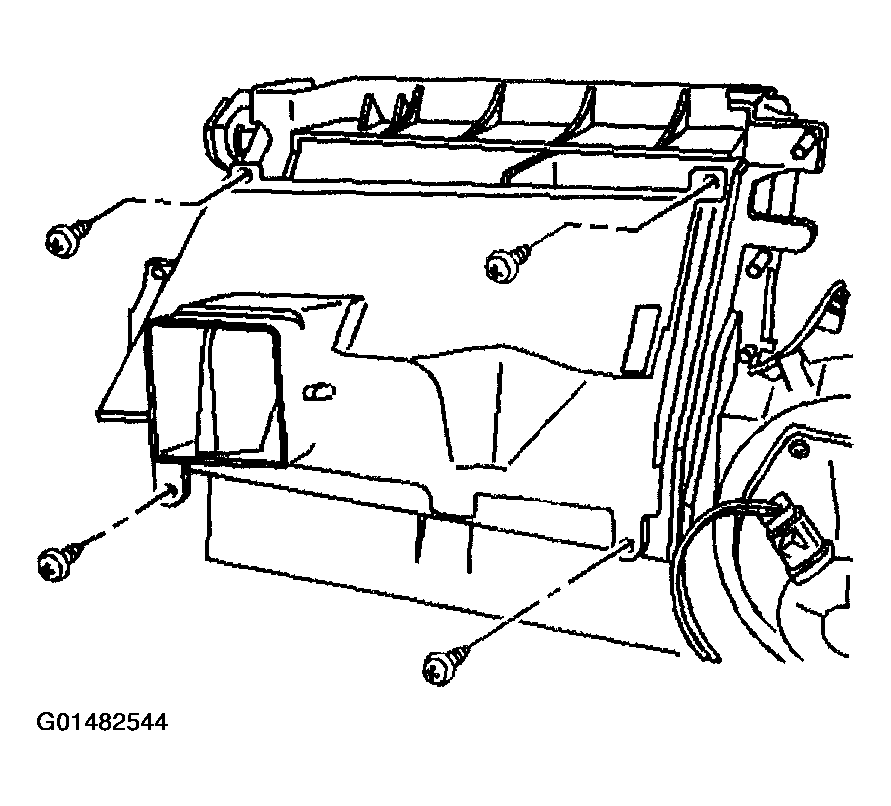

    Fig 1: Removing Screws Retaining Floor Air Outlet
    G01482544Courtesy of GENERAL MOTORS CORP.
  6. Remove the floor air outlet.
