Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P assembly. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT  in Instrument Panel, Gages and Console.
  2. Remove the center air distribution duct nuts.
  3. Remove the center air distribution duct from the I/P carrier.

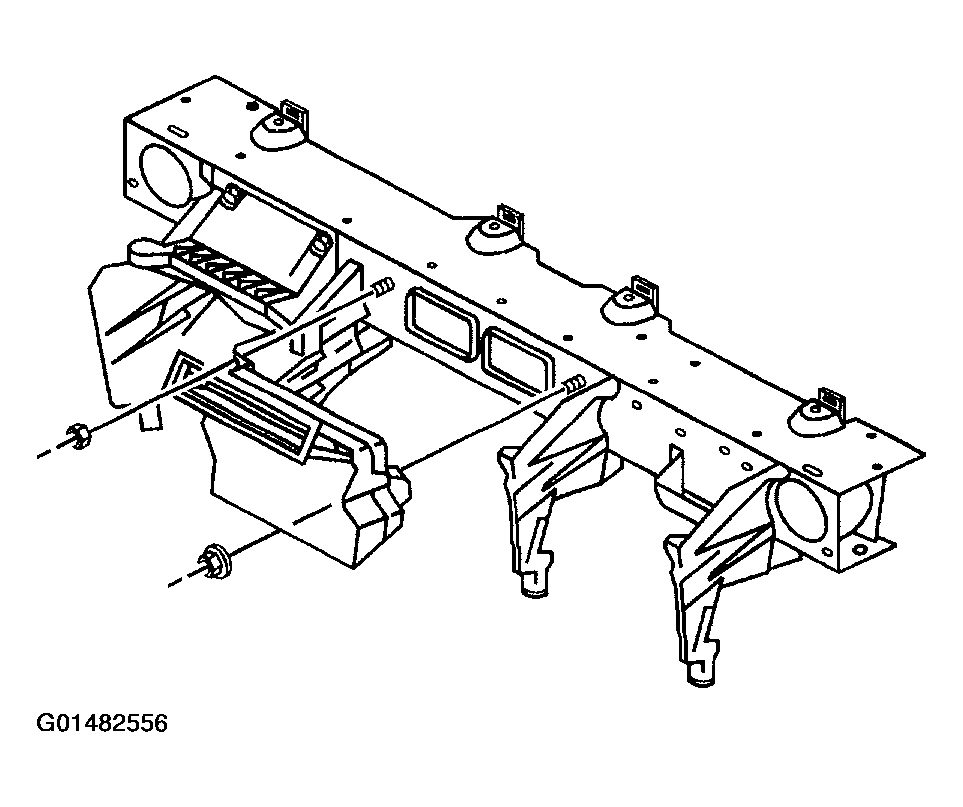

    Fig 1: Removing Center Air Distribution Duct From I/P Carrier
    G01482556Courtesy of GENERAL MOTORS CORP.
