Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the center air distribution duct to the I/P carrier.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the center air distribution duct nuts.

    Tighten

    Tighten the nut to 10 N.m (89 lb in).

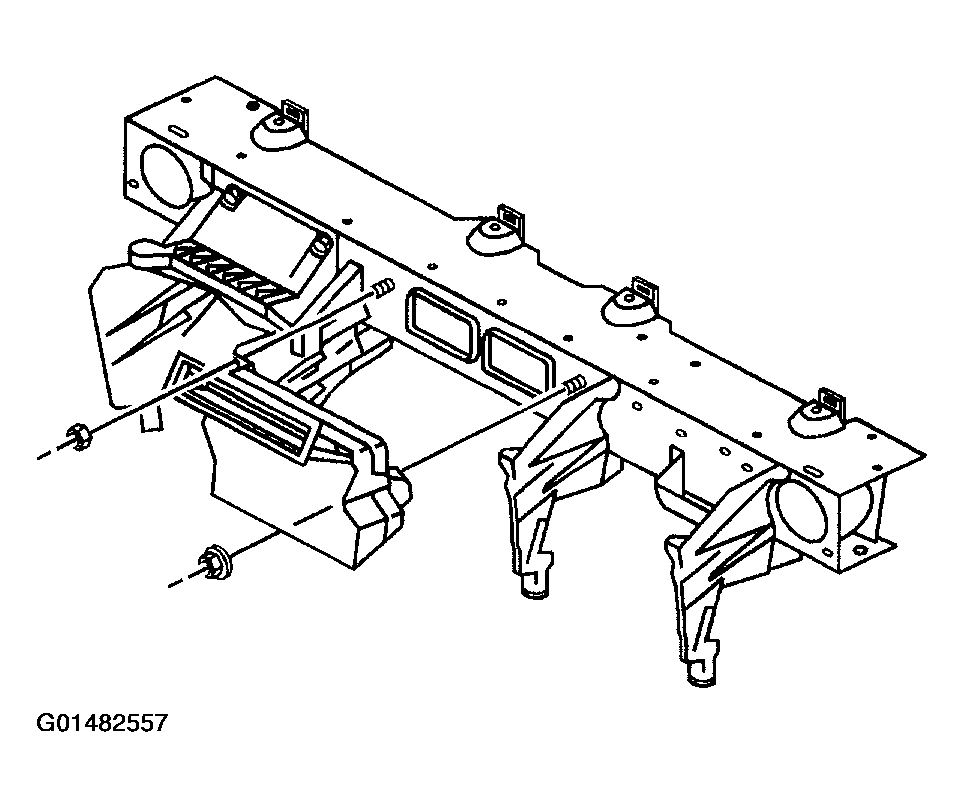

    Fig 1: Installing Center Air Distribution Duct To I/P Carrier
    G01482557Courtesy of GENERAL MOTORS CORP.
  3. Install the I/P assembly. Refer to INSTRUMENT PANEL (I/P) ASSEMBLY REPLACEMENT  in Instrument Panel, Gages and Console.
