Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seats. Refer to SEAT REPLACEMENT - BUCKET  in Seats.
  2. Remove the center console. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages and Console.
  3. Remove the console bracket.
  4. Reposition the front of the carpet rearward.
  5. Remove the floor duct brace.
  6. Remove the floor duct from the HVAC module assembly and the lower floor duct.

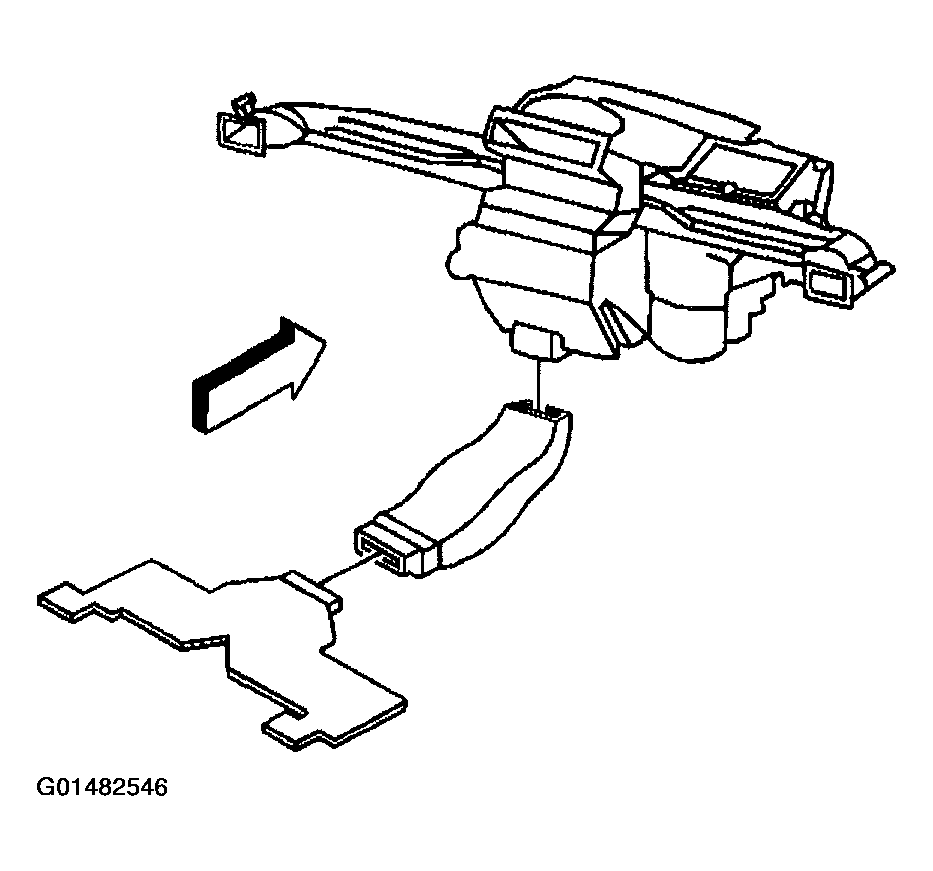

    Fig 1: Removing Floor Duct From HVAC Module Assembly & Lower Floor Duct
    G01482546Courtesy of GENERAL MOTORS CORP.
  7. Unsnap the lower floor air outlet duct from the studs and the holes in the floor reinforcement.
