Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Snap the lower floor air outlet duct to the studs and the holes in the floor reinforcement.
  2. Install the floor duct to the lower floor duct and the HVAC module assembly.

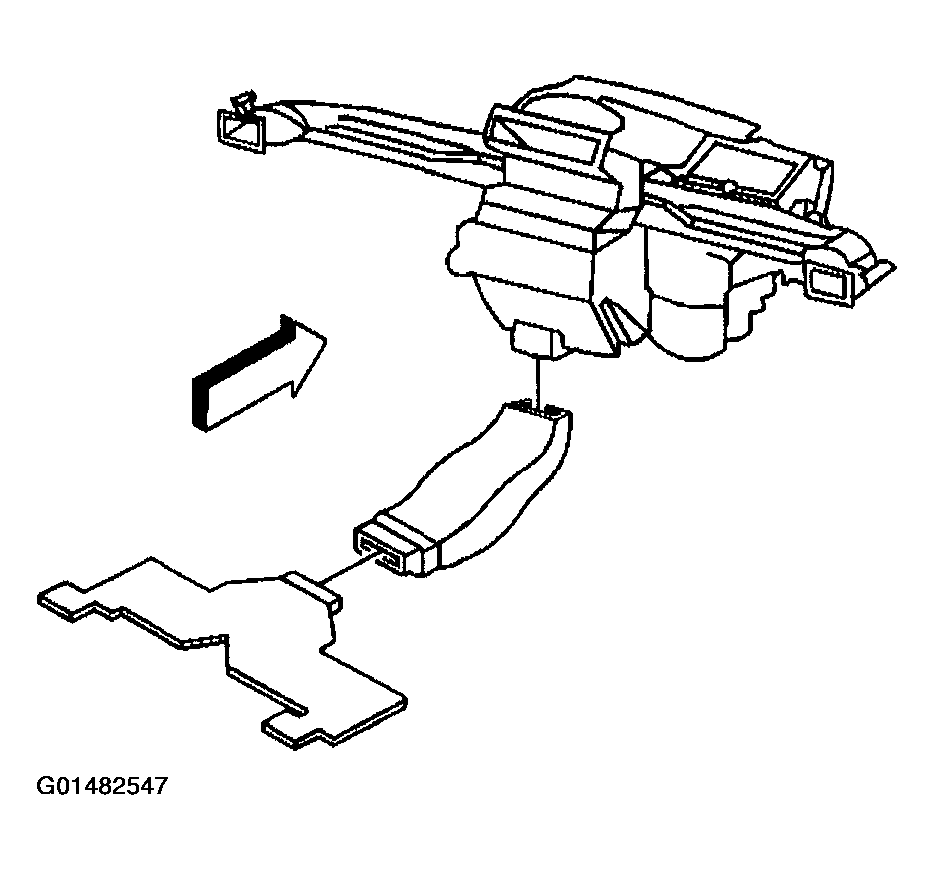

    Fig 1: Installing Floor Duct To HVAC Module Assembly & Lower Floor Duct
    G01482547Courtesy of GENERAL MOTORS CORP.
  3. Install the floor duct brace.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the floor duct brace retaining nuts.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

  5. Install the front carpet into position.
  6. Install the console bracket.
  7. Install the center console. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE  in Instrument Panel, Gages and Console.
  8. Install the front seats. Refer to SEAT REPLACEMENT - BUCKET  in Seats.
