Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Important:  The defroster door must be closed to allow clearance during defroster duct removal.

  1. Set the HVAC controls in the VENT mode to close the defroster door.
  2. Remove the IP carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT  in Instrument Panel, Gages and Console.
  3. Remove the side window defogger ducts from the defroster outlet duct.

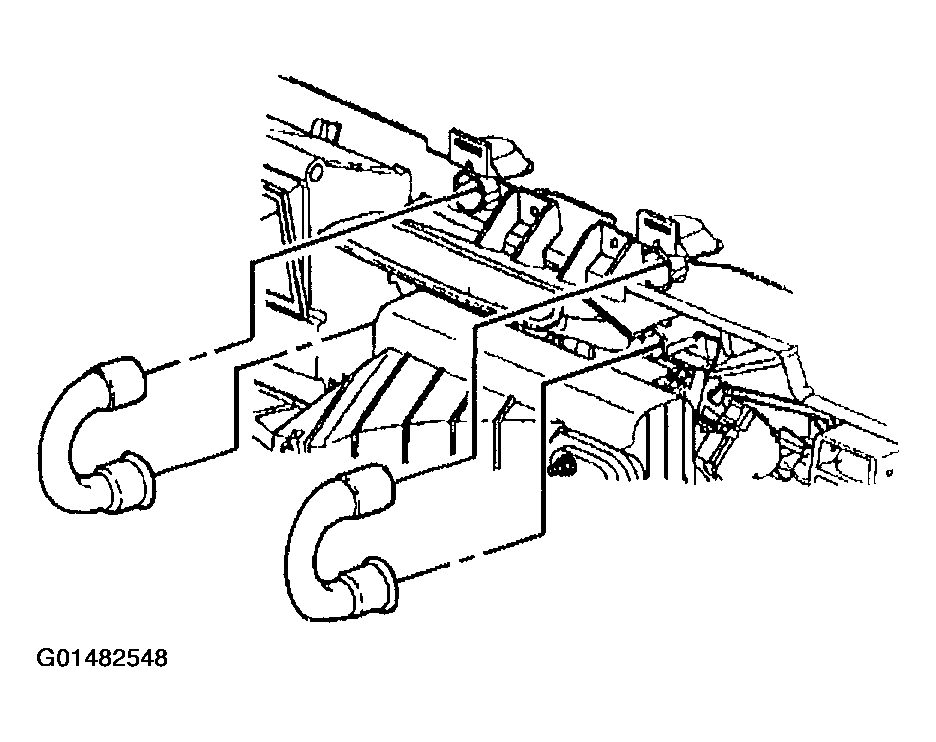

    Fig 1: Removing Side Window Defogger Ducts From Defroster Outlet Duct
    G01482548Courtesy of GENERAL MOTORS CORP.
  4. Using the J 38778  remove the defroster outlet duct retaining clips.
  5. Remove the defroster outlet duct from the IP carrier.
    Fig 2: Removing Defroster Outlet Duct From IP Carrier
    G01482549Courtesy of GENERAL MOTORS CORP.
