Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the defroster outlet duct to the IP carrier.
  2. Connect the defroster outlet duct retaining clips.
    Fig 1: Installing Defroster Outlet Duct To IP Carrier
    G01482550Courtesy of GENERAL MOTORS CORP.
  3. Install the side window defogger ducts to the defroster outlet duct.

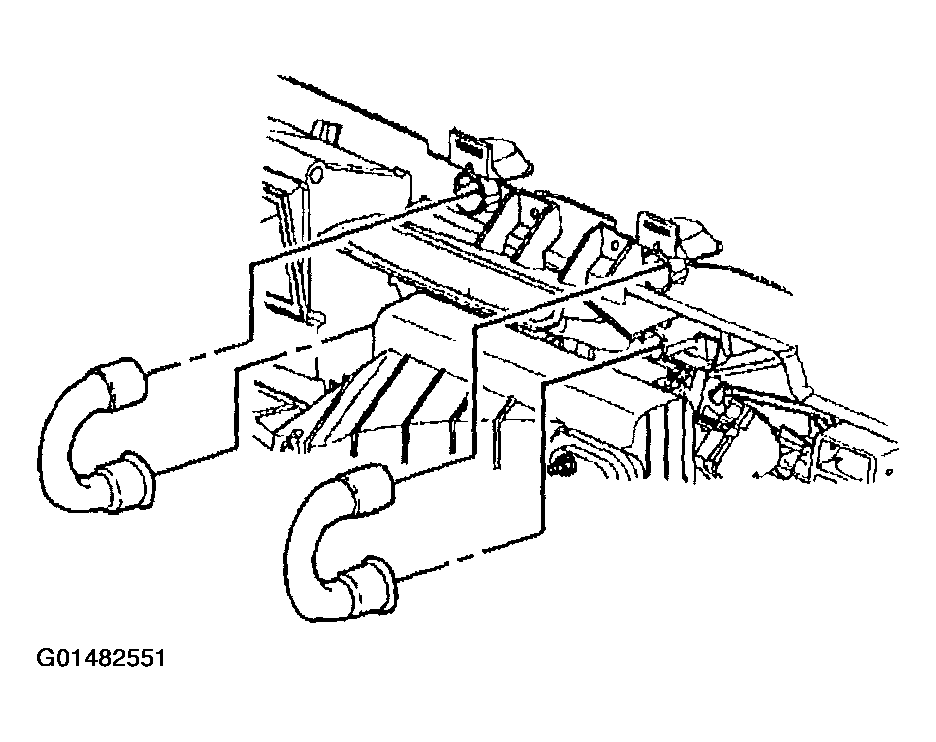

    Fig 2: Installing Side Window Defogger Ducts To Defroster Outlet Duct
    G01482551Courtesy of GENERAL MOTORS CORP.
  4. Install the IP carrier. Refer to INSTRUMENT PANEL (I/P) CARRIER REPLACEMENT  in Instrument Panel, Gages and Console.
