Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear quarter trim panel.
  2. Remove the retainers from the mid upper air distribution duct.
  3. Remove the mid upper air distribution duct from the C-pillar.

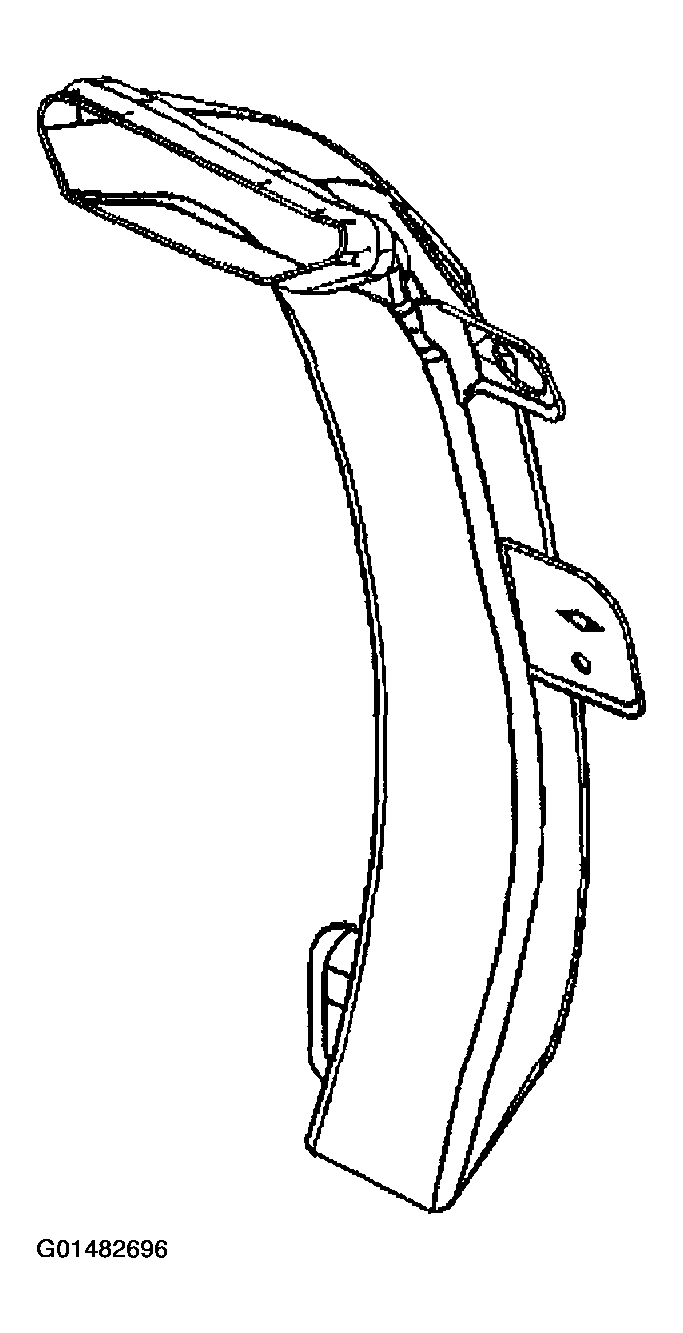

    Fig 1: Identifying Mid Upper Air Distribution Duct
    G01482696Courtesy of GENERAL MOTORS CORP.
  4. Remove the retainer from the lower air distribution duct.
  5. Remove the lower air distribution duct from the C-pillar.

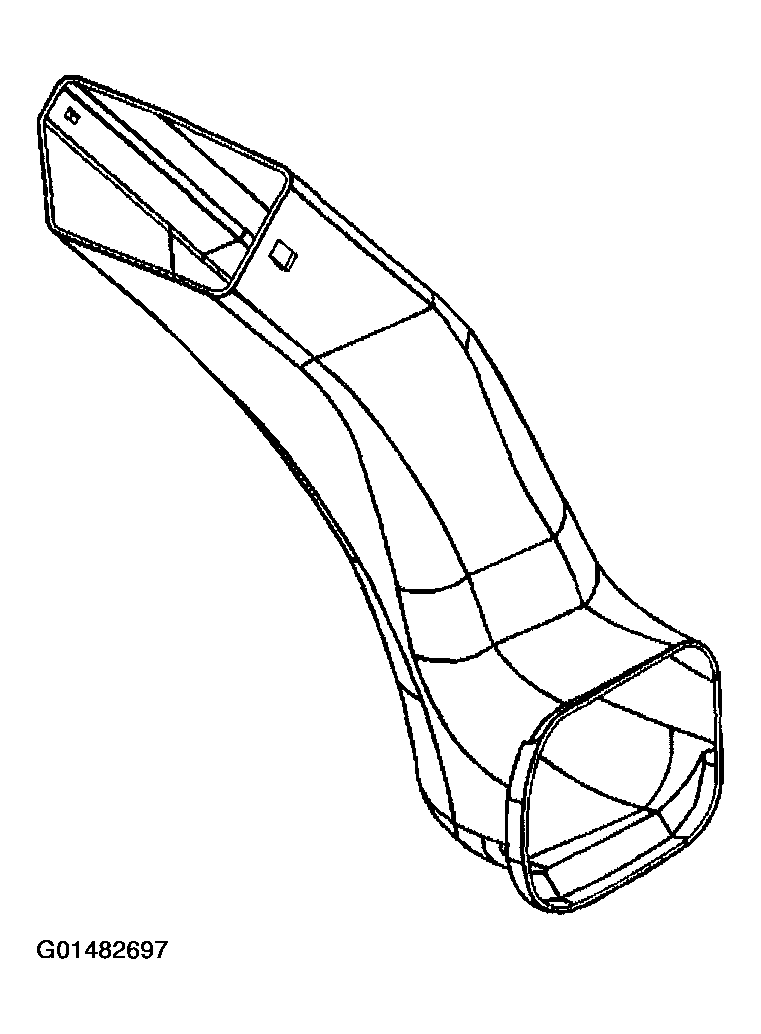

    Fig 2: Identifying Lower Air Distribution Duct
    G01482697Courtesy of GENERAL MOTORS CORP.
  6. Remove the auxiliary mode actuator. Refer to MODE ACTUATOR REPLACEMENT - AUXILIARY  .
  7. Remove the retainer and bolts from the middle air distribution duct.

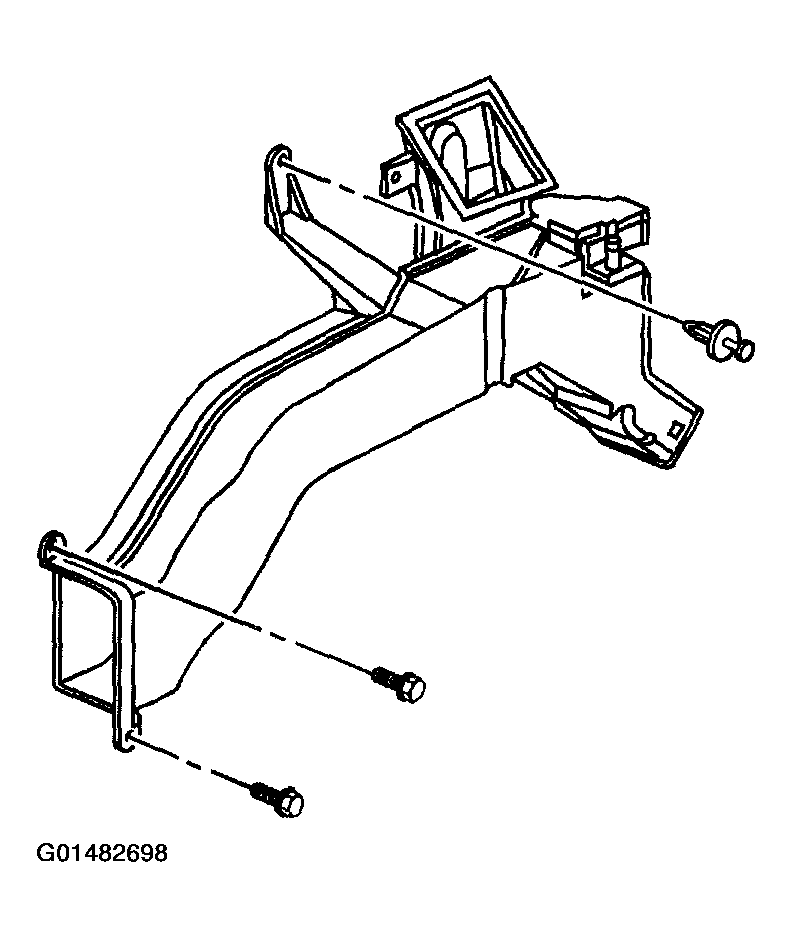

    Fig 3: Removing Retainers From Middle Air Distribution Duct
    G01482698Courtesy of GENERAL MOTORS CORP.
  8. Remove the middle air distribution duct from the auxiliary HVAC module assembly.
  9. Remove the middle air distribution duct from the rear quarter.
