Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the middle air distribution duct to the rear quarter.
  2. Install the middle air distribution duct to the auxiliary HVAC module assembly.
  3. Install the middle air distribution retainers.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

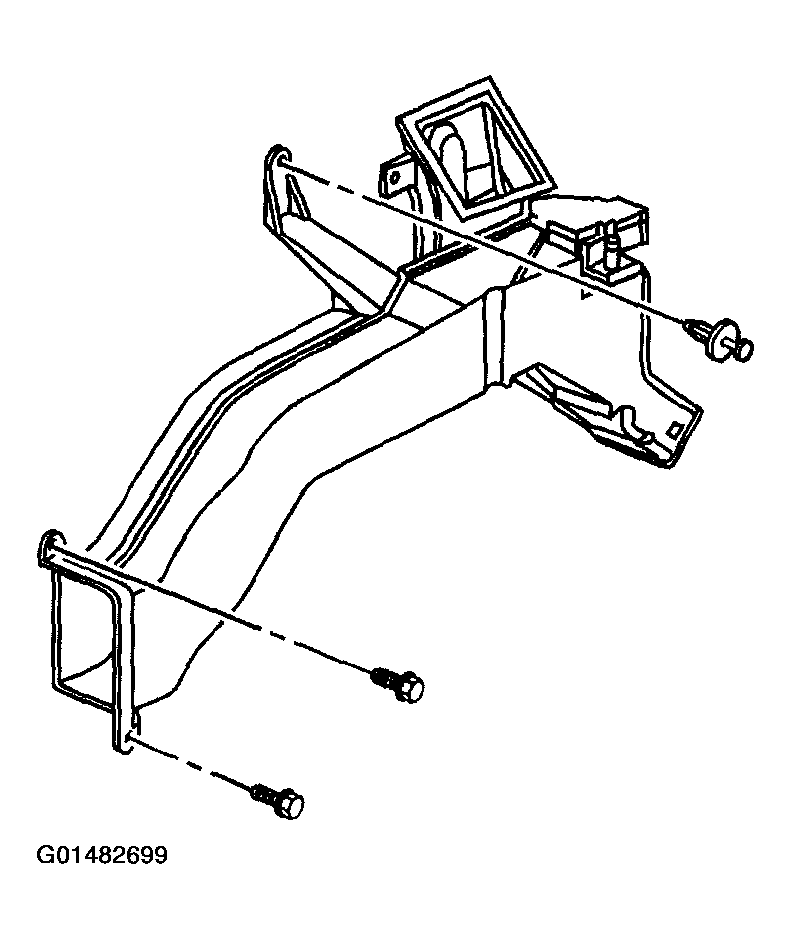

    Fig 1: Installing Middle Air Distribution Duct Retainers
    G01482699Courtesy of GENERAL MOTORS CORP.
  4. Install the middle air distribution duct bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  5. Install the auxiliary mode actuator. Refer to MODE ACTUATOR REPLACEMENT - AUXILIARY  .
  6. Install the lower air distribution duct to the C-pillar.
  7. Install retainer to secure the lower air distribution duct.

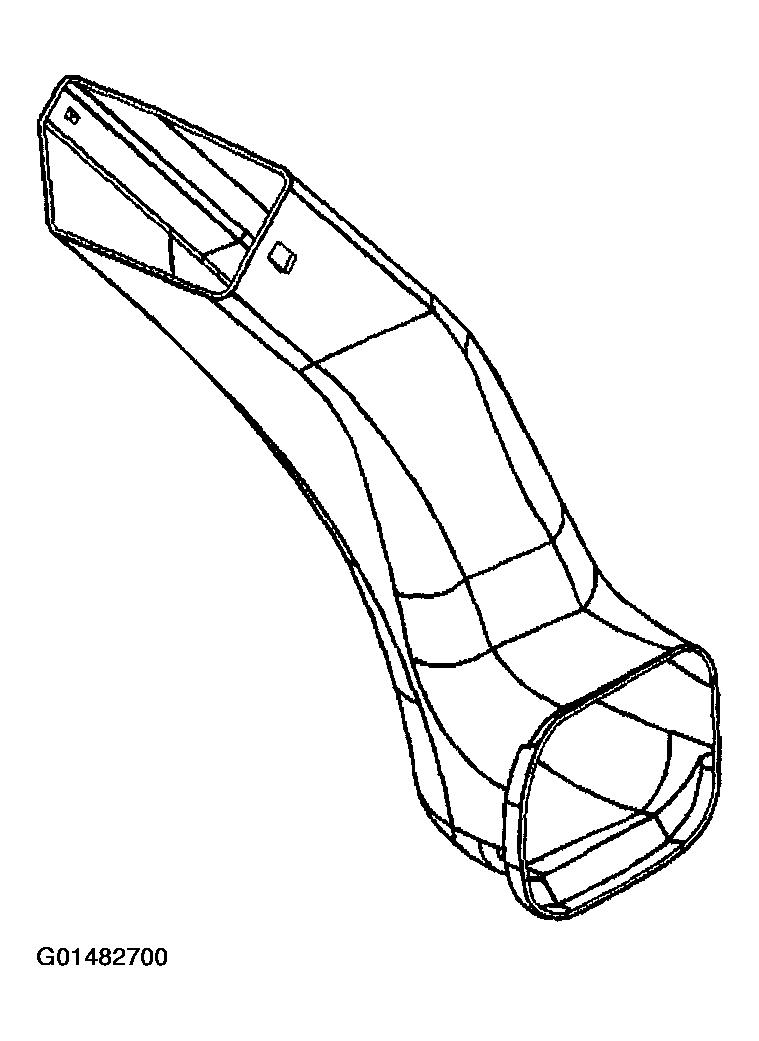

    Fig 2: Identifying Lower Air Distribution Duct
    G01482700Courtesy of GENERAL MOTORS CORP.
  8. Install the mid upper air distribution duct to the C-pillar.

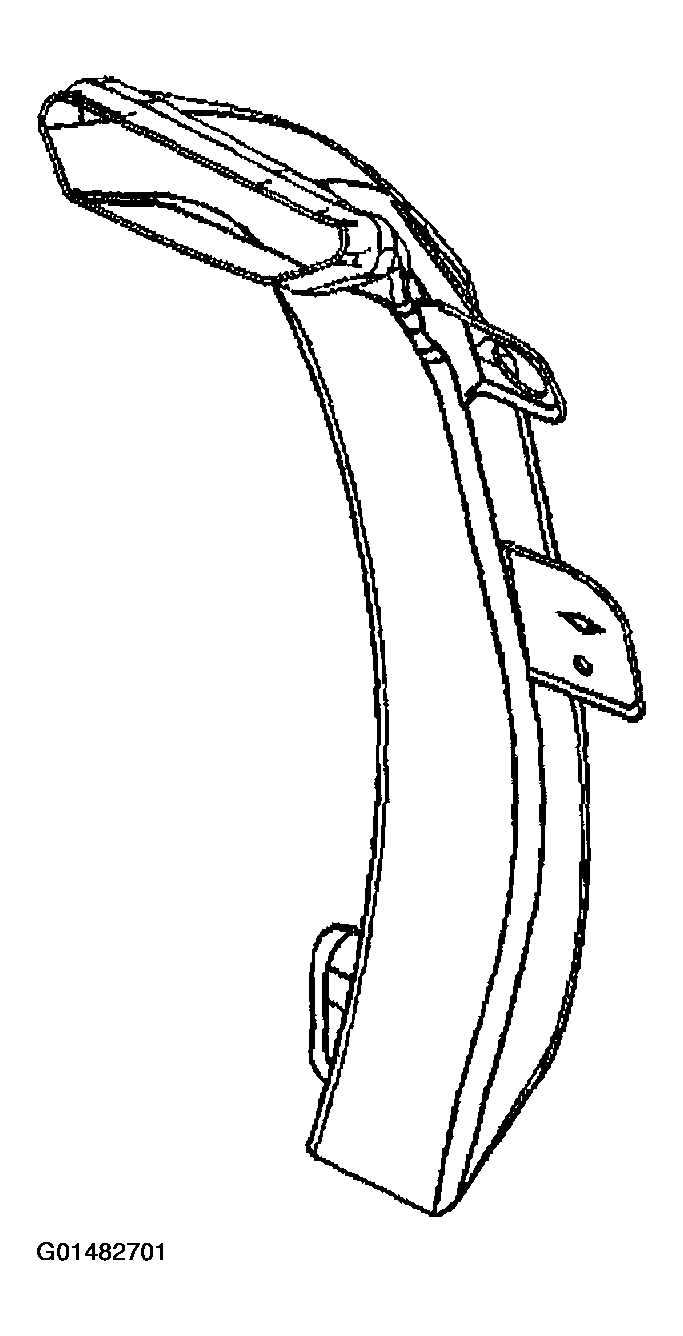

    Fig 3: Identifying Mid Upper Air Distribution Duct
    G01482701Courtesy of GENERAL MOTORS CORP.
  9. Install the retaining clips to the air duct system.
  10. Install the left rear quarter trim panel.
