Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the air baffle bolts.
  3. Remove the air baffle.

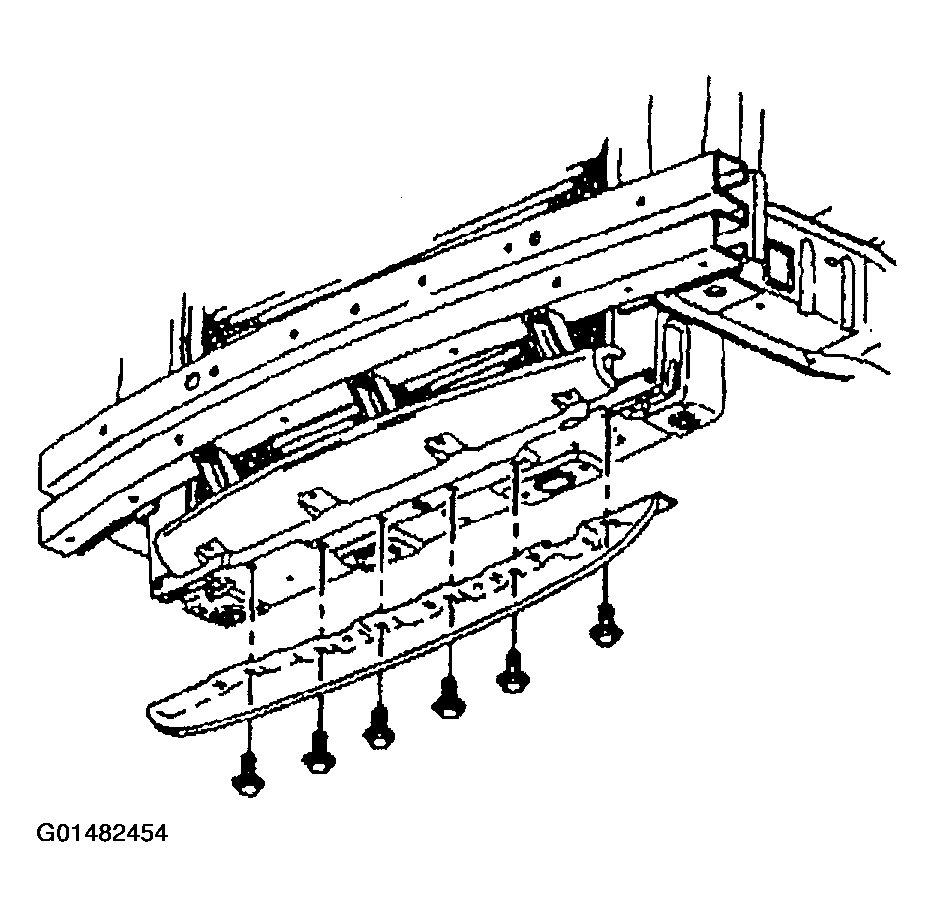

    Fig 1: Removing Air Baffle & Bolts
    G01482454Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the A/C refrigerant pressure sensor electrical connector.
  5. Remove the A/C refrigerant pressure sensor from the evaporator inlet tube.

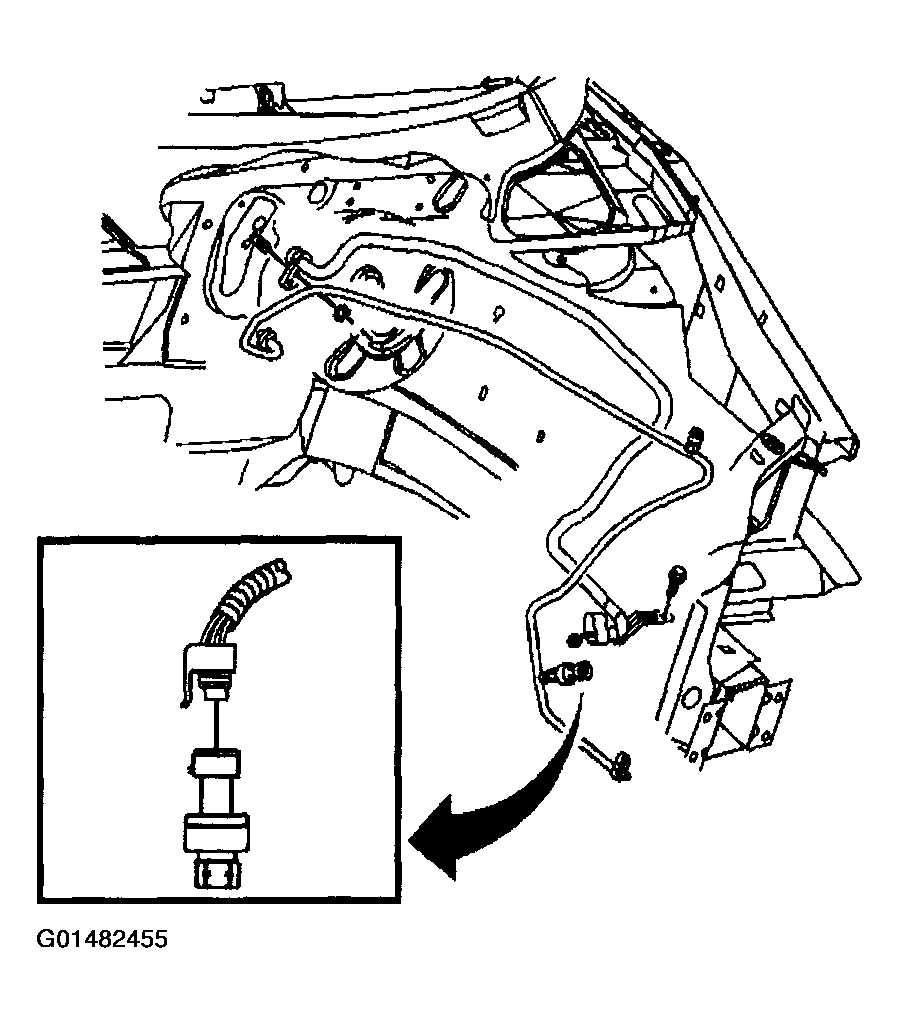

    Fig 2: Removing A/C Refrigerant Pressure Sensor From Evaporator Inlet Tube
    G01482455Courtesy of GENERAL MOTORS CORP.
