Odor Diagnosis

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

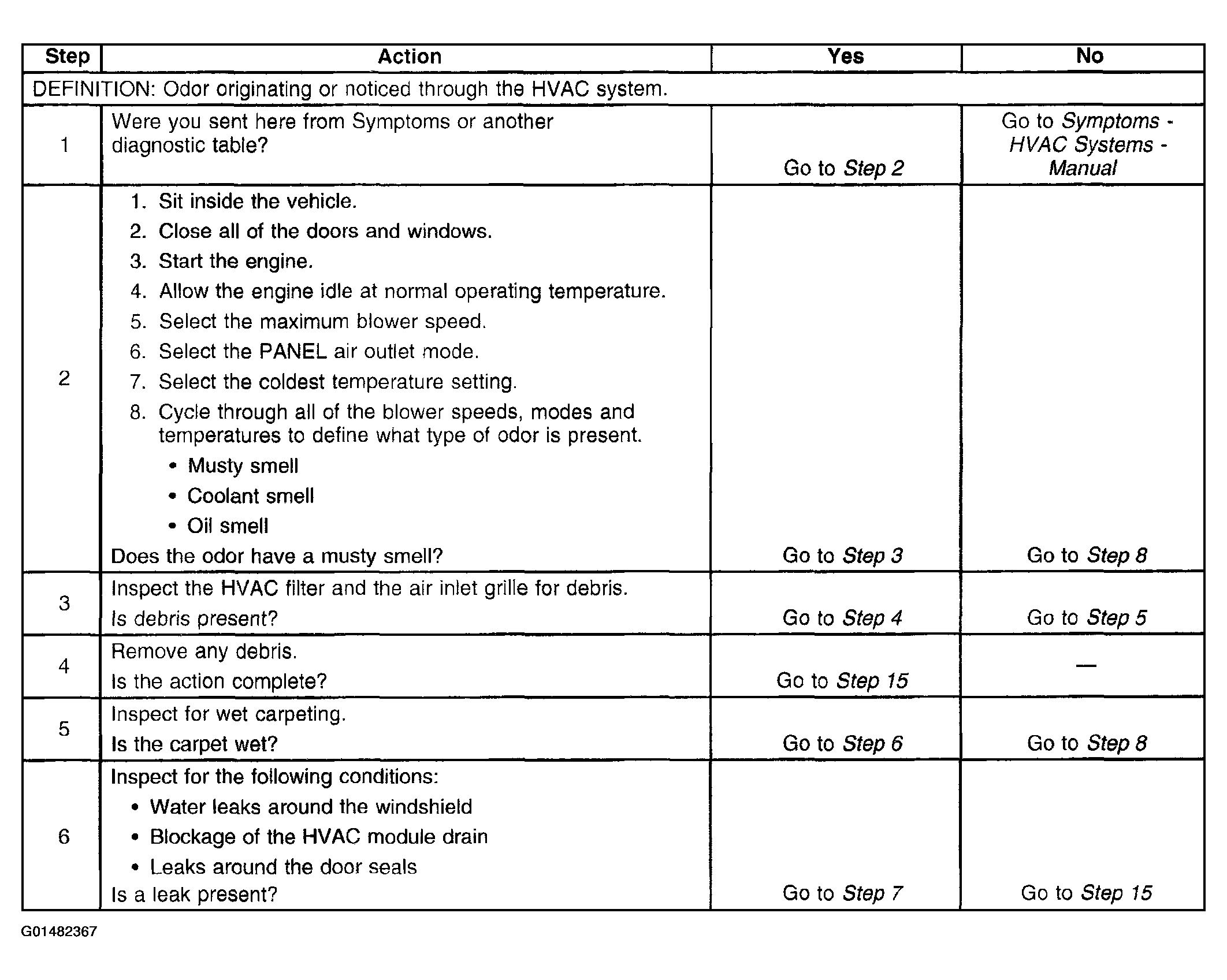

Fig 1: Odor Diagnosis (Steps 1 - 6)
G01482367Courtesy of GENERAL MOTORS CORP.

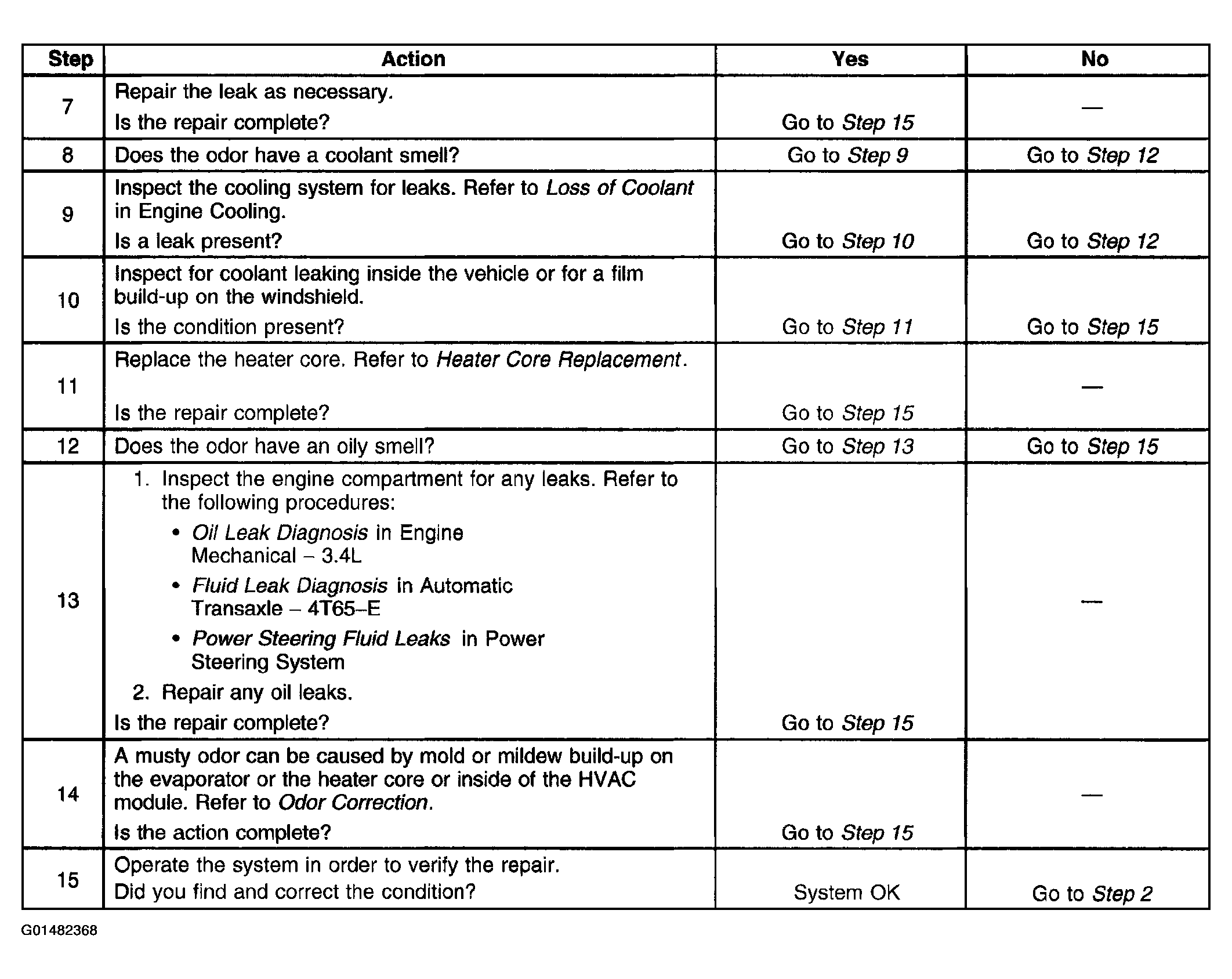

Fig 2: Odor Diagnosis (Steps 7 - 15)
G01482368Courtesy of GENERAL MOTORS CORP.
