Noise Diagnosis - Auxiliary Blower Motor

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

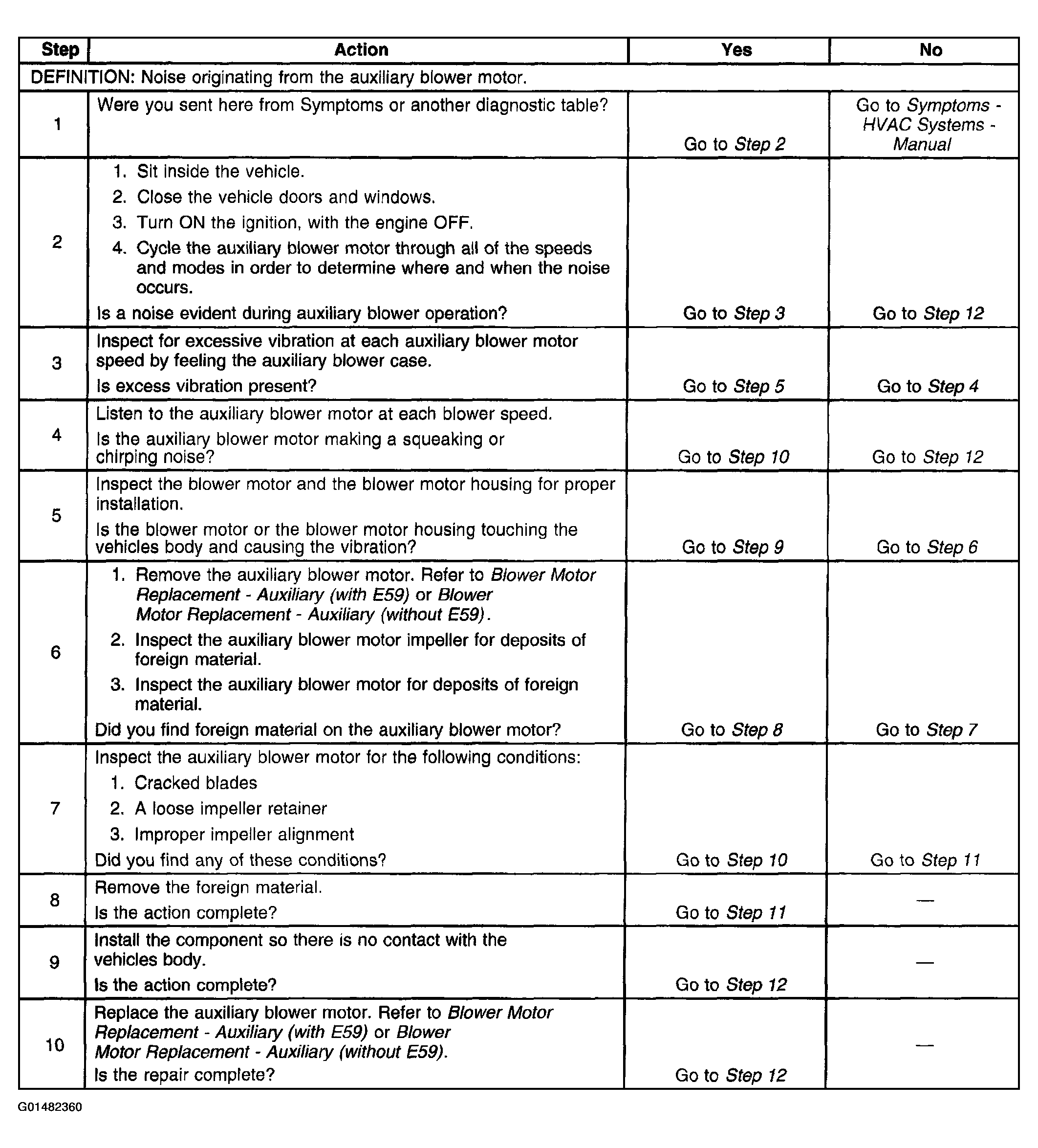

Fig 1: Noise Diagnosis (Auxiliary Blower Motor) (Steps 1 - 10)
G01482360Courtesy of GENERAL MOTORS CORP.

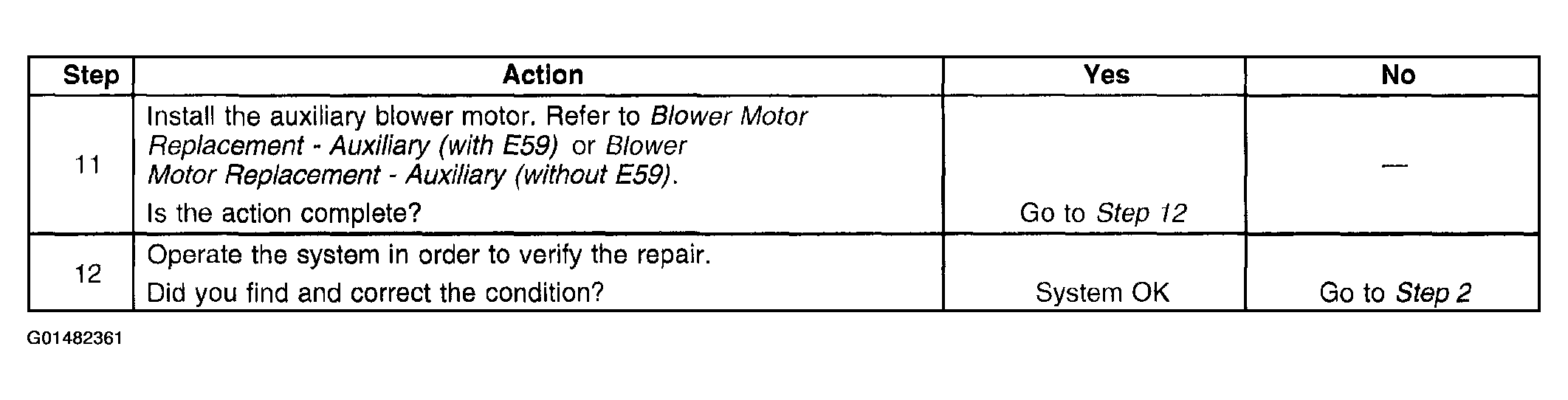

Fig 2: Noise Diagnosis (Auxiliary Blower Motor) (Steps 11 - 12)
G01482361Courtesy of GENERAL MOTORS CORP.
