Heating Performance Diagnostic (Front System)

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

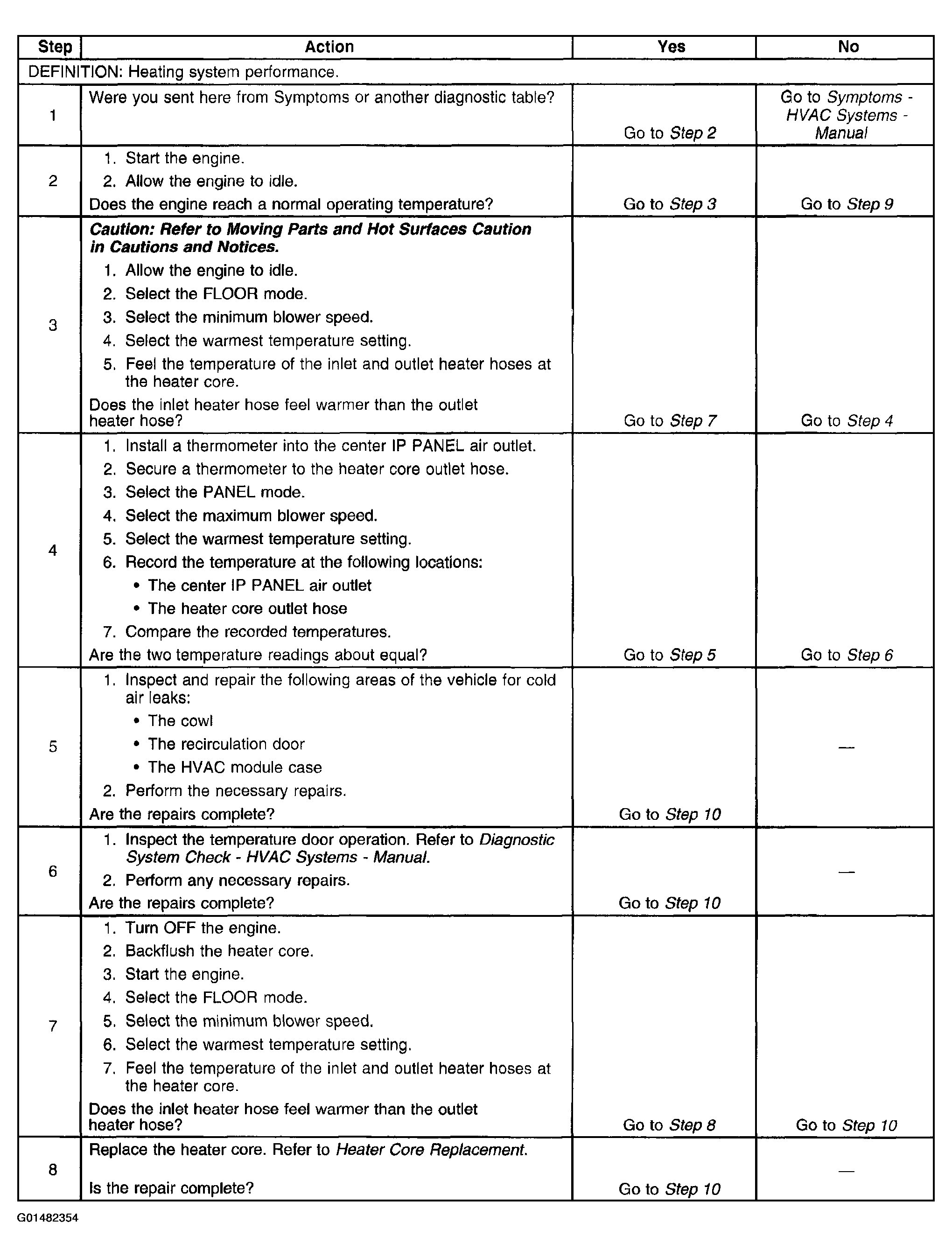

Fig 1: Heating Performance Diagnostic (Front System) (Steps 1 - 8)
G01482354Courtesy of GENERAL MOTORS CORP.

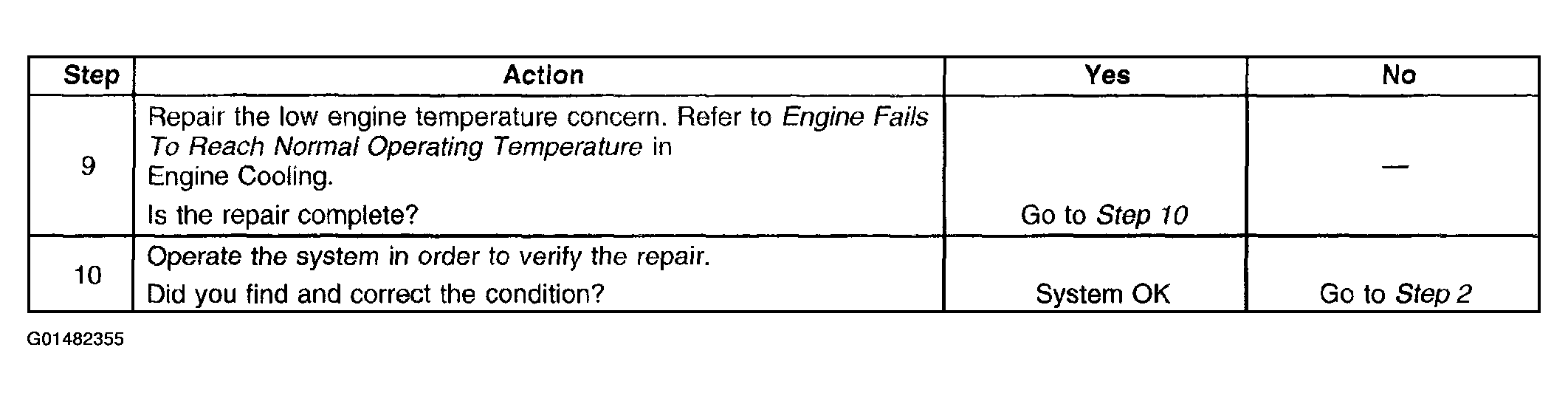

Fig 2: Heating Performance Diagnostic (Front System) (Steps 9 - 10)
G01482355Courtesy of GENERAL MOTORS CORP.
