Air Conditioning (A/C) System Performance Test

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

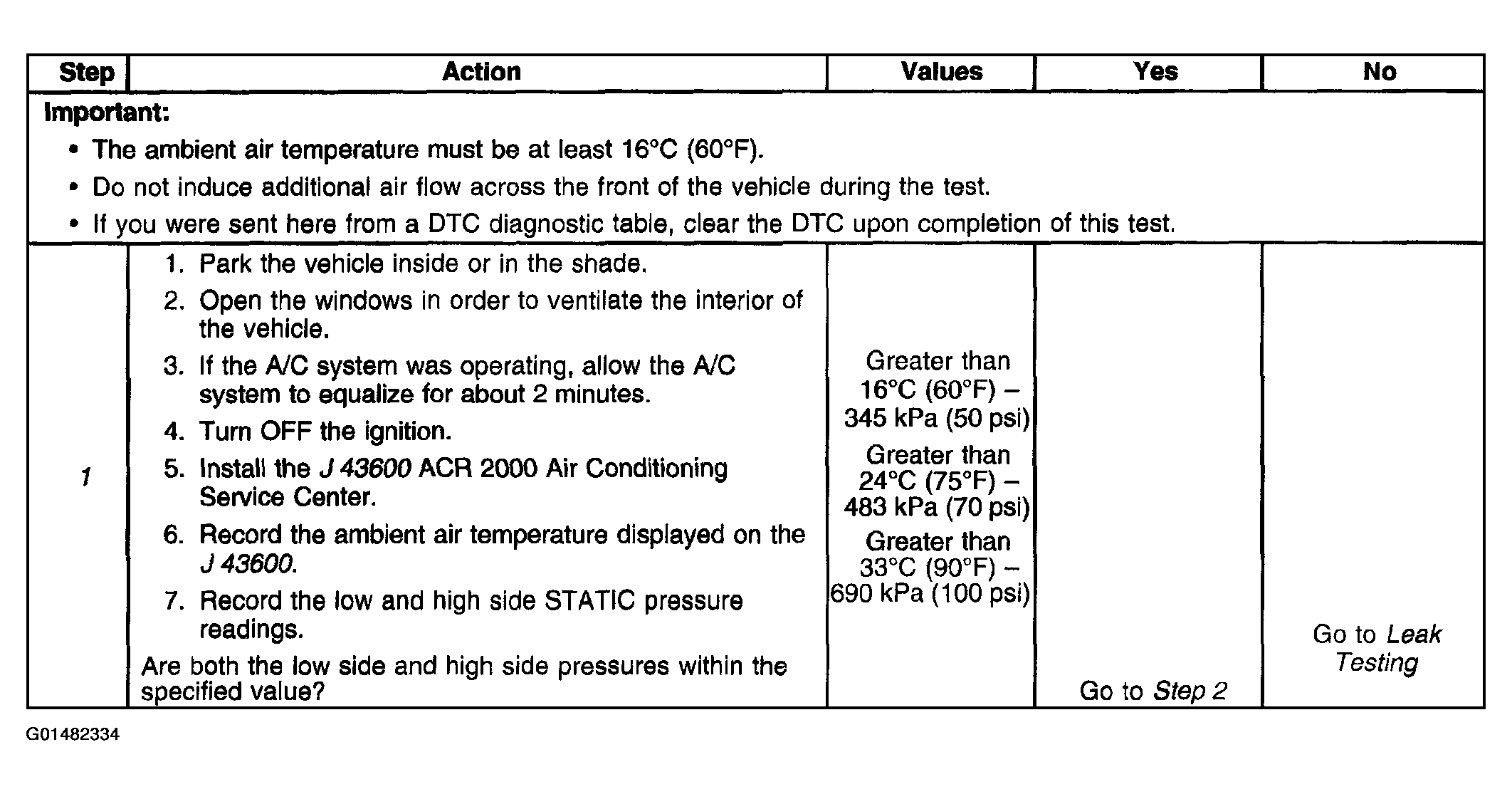

Fig 1: Air Conditioning (A/C) System Performance Test Chart (Step 1)
G01482334Courtesy of GENERAL MOTORS CORP.

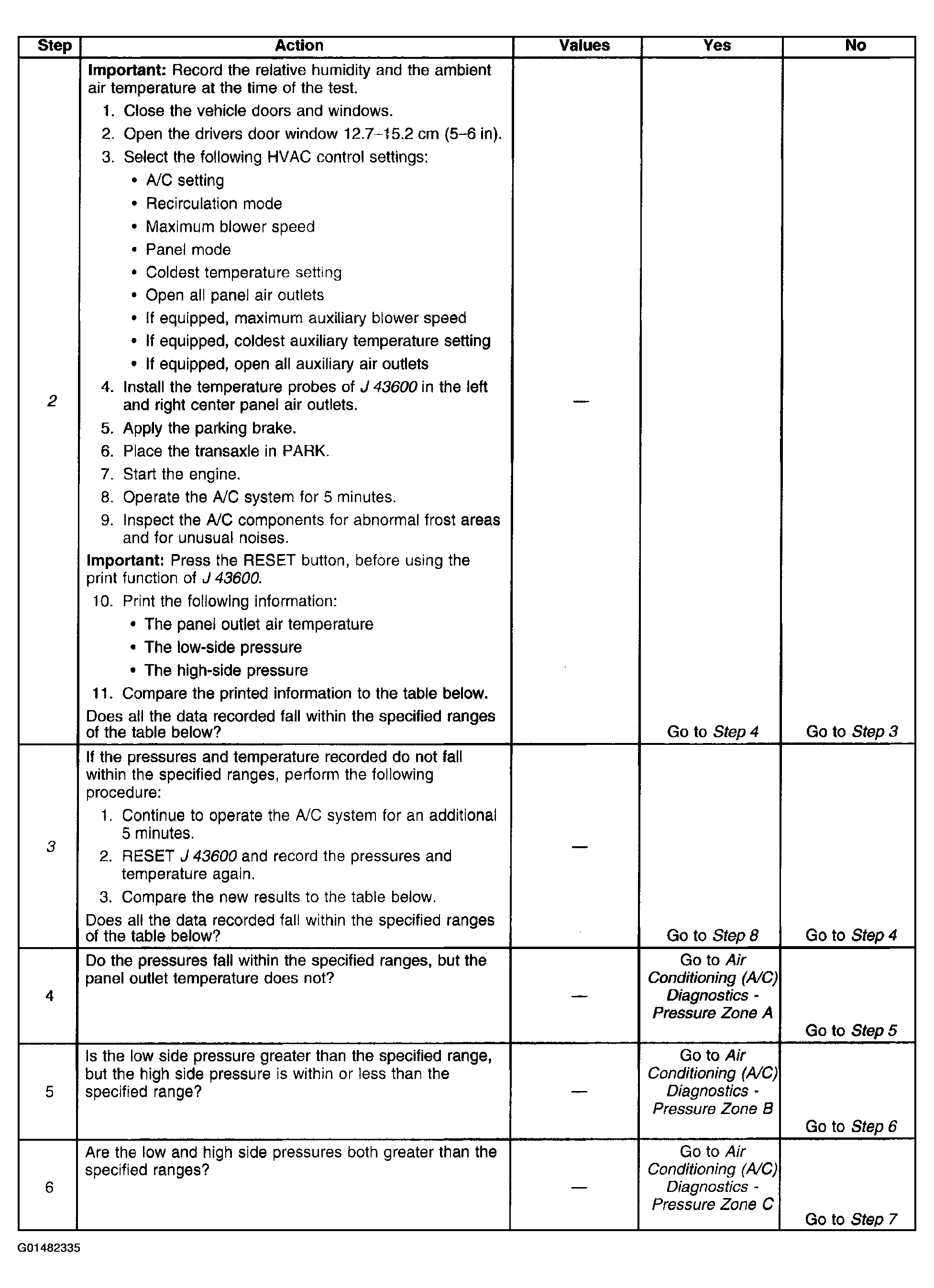

Fig 2: Air Conditioning (A/C) System Performance Test Chart (Steps 2 - 6)
G01482335Courtesy of GENERAL MOTORS CORP.

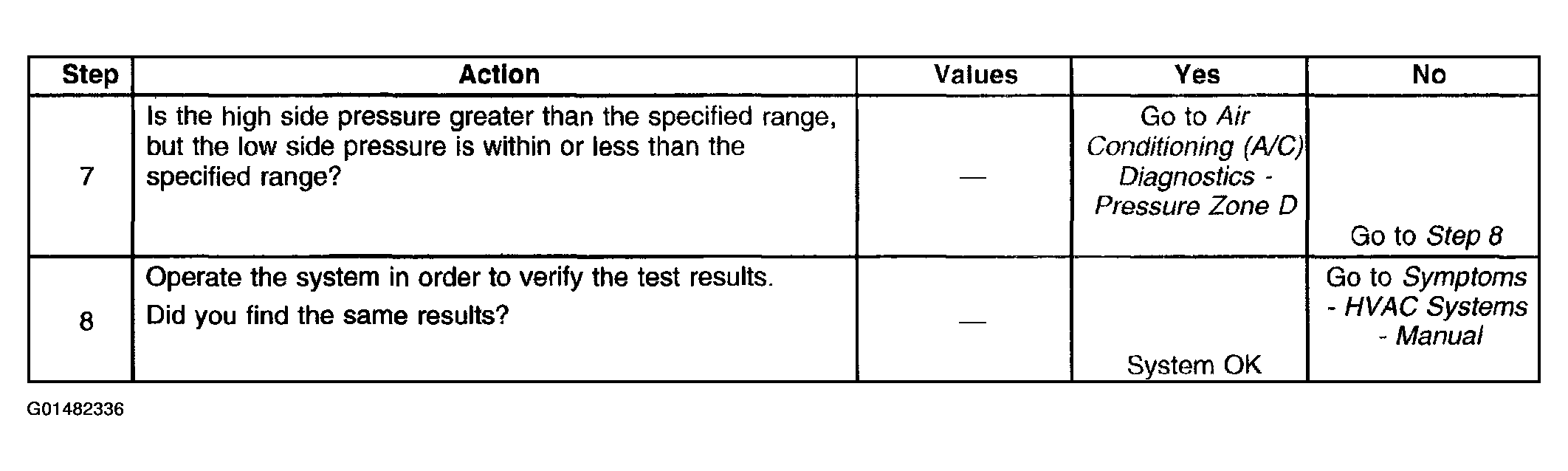

Fig 3: Air Conditioning (A/C) System Performance Test Chart (Steps 7 - 8)
G01482336Courtesy of GENERAL MOTORS CORP.
