A/C Performance Table - With Rear A/C

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

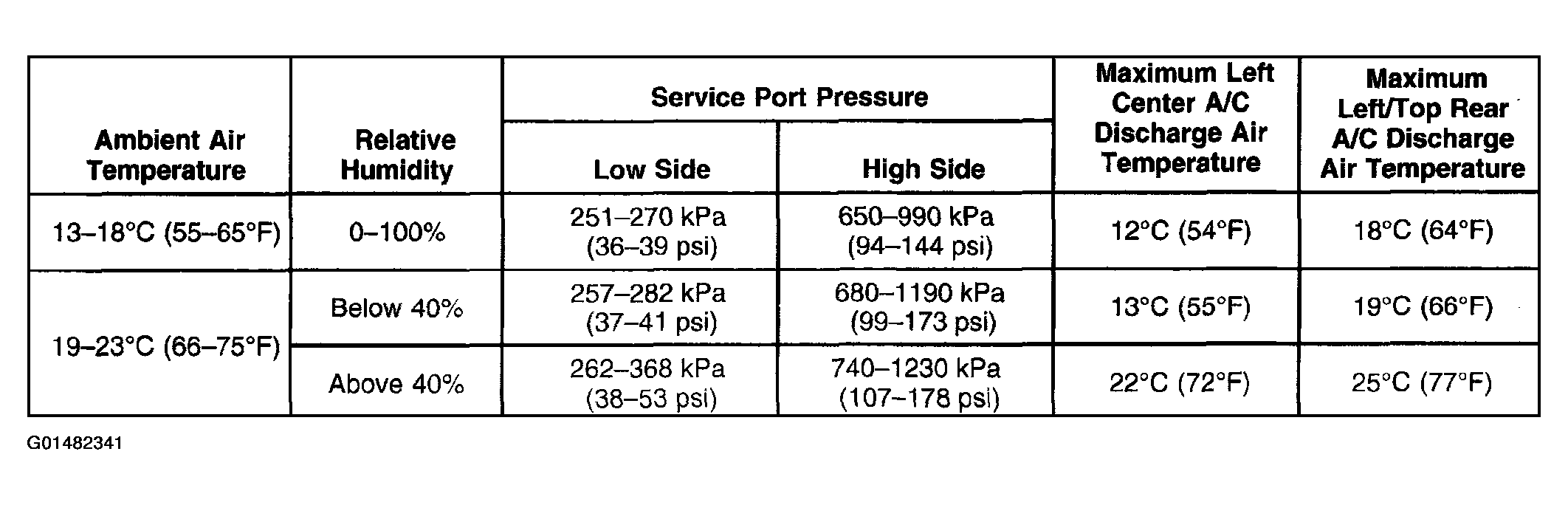

Fig 1: A/C Performance Table - With Rear A/C (1 Of 2)
G01482341Courtesy of GENERAL MOTORS CORP.

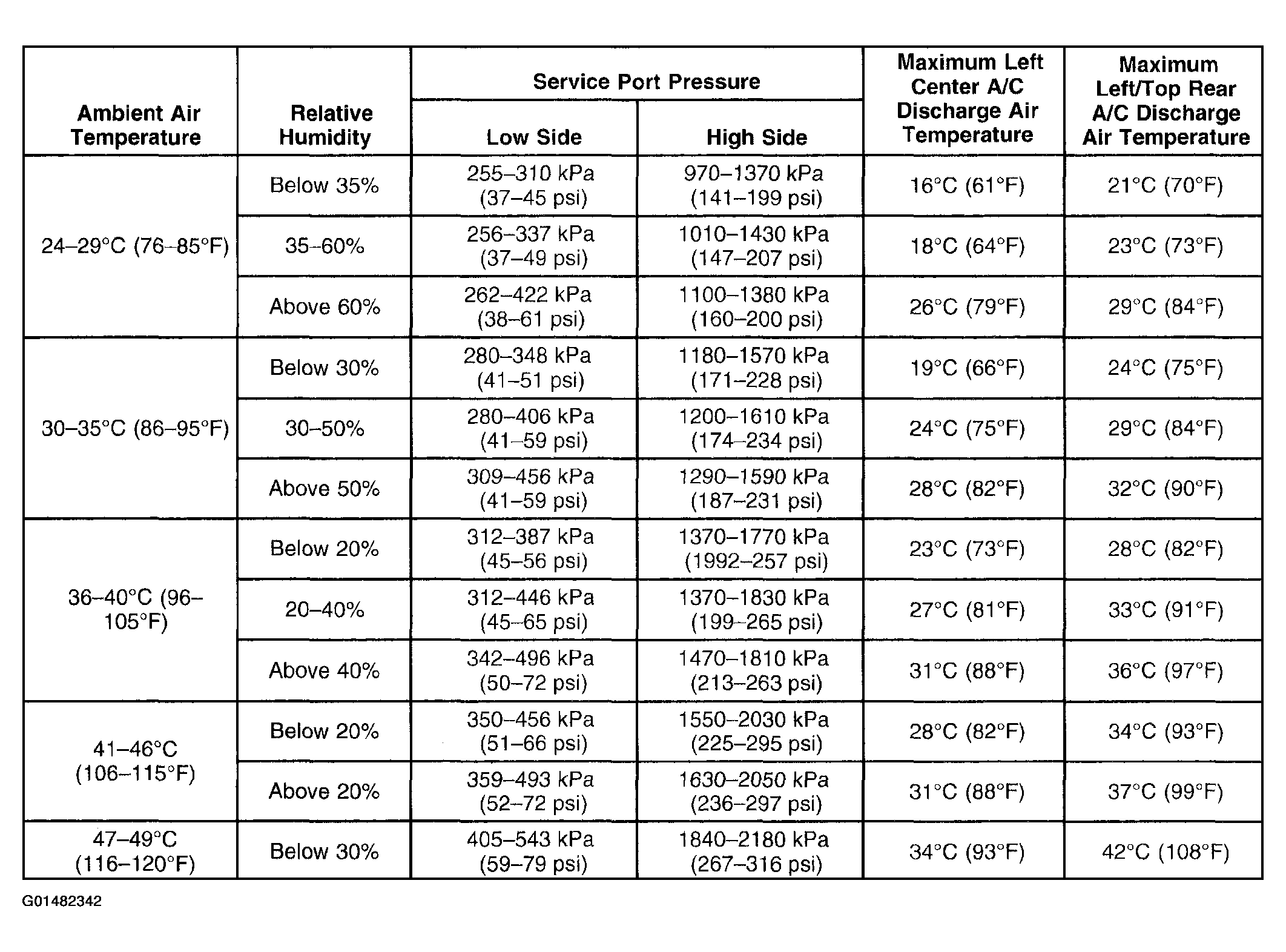

Fig 2: A/C Performance Table - With Rear A/C (2 Of 2)
G01482342Courtesy of GENERAL MOTORS CORP.
