Lifting Vehicle With Suspension Contact Lift

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

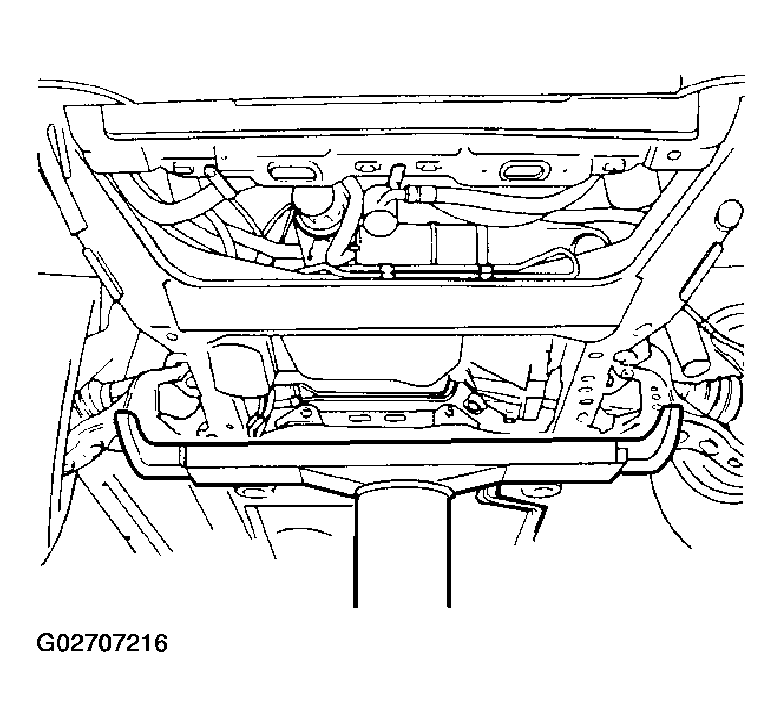

Fig 1: Aligning Suspension Contact Lift At Lower Control Arms

Courtesy of GENERAL MOTORS CORP.

NOTE: Ensure that the front suspension-contact lift points contact the lower control arms ONLY where identified. Failure to follow this precautionary step could result in damage to the lower control arm stabilizer link bracket.

When lifting the vehicle with a suspension-contact lift, place the front post lift points at the lower control arms.

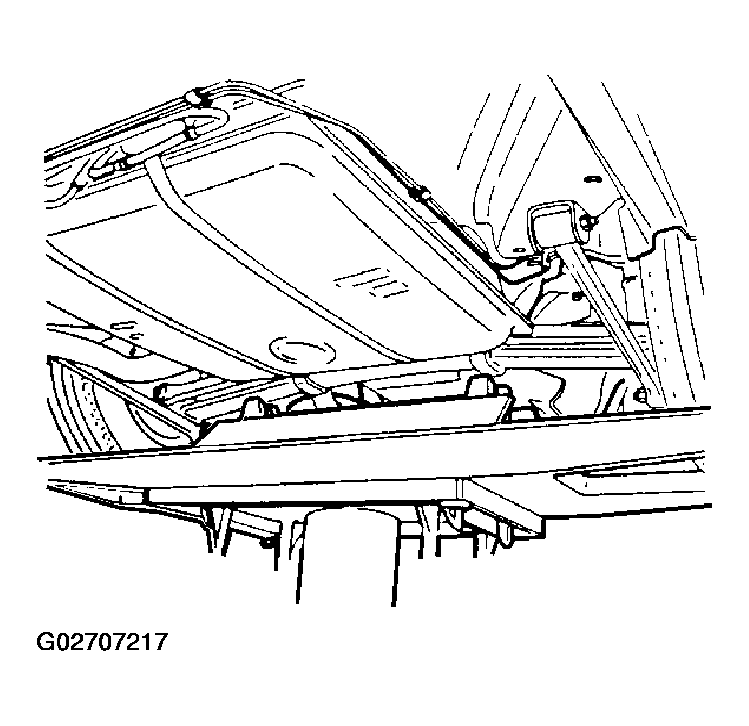

Fig 2: Aligning Suspension Contact Lift At Rear Wheels

Courtesy of GENERAL MOTORS CORP.

Lift the rear of the vehicle with the rear post lift points ONLY at the rear wheels.
