Lifting Vehicle With Floor Jack

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

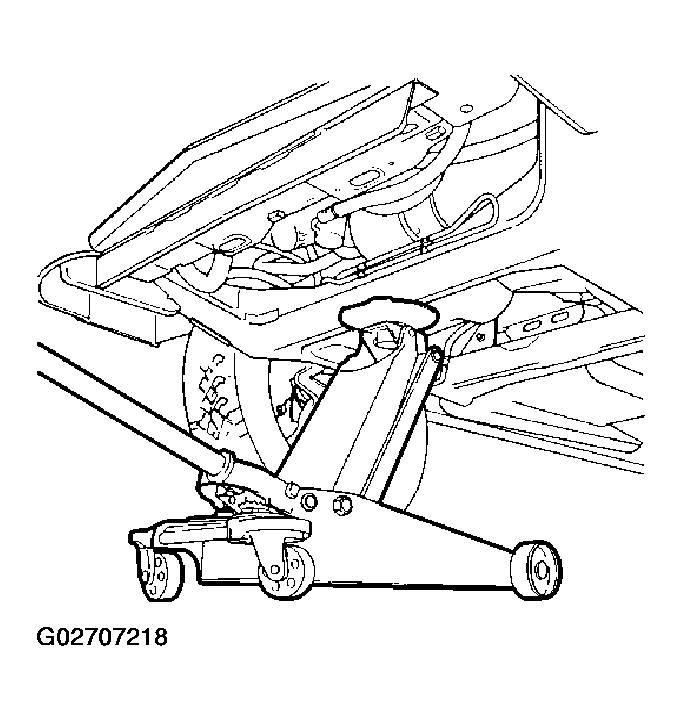

Fig 1: Aligning Floor Jack Under Front Frame Rail

Courtesy of GENERAL MOTORS CORP.

When lifting front the vehicle with a floor jack, place the floor jack lift pad at the center of the front frame rail.

Fig 2: Aligning Floor Jack Under Rear Axle

Courtesy of GENERAL MOTORS CORP.

Lift the rear of the vehicle by placing the floor jack lift pad at the center of the rear suspension.
