Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back and seat cushion.
  2. Remove the rear quarter upper trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER UPPER (SEDAN)  in  Interior Trim.
  3. Remove the rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER (SEDAN) in Interior Trim.
  4. Remove the rear seat retractor side belt anchor bolt.

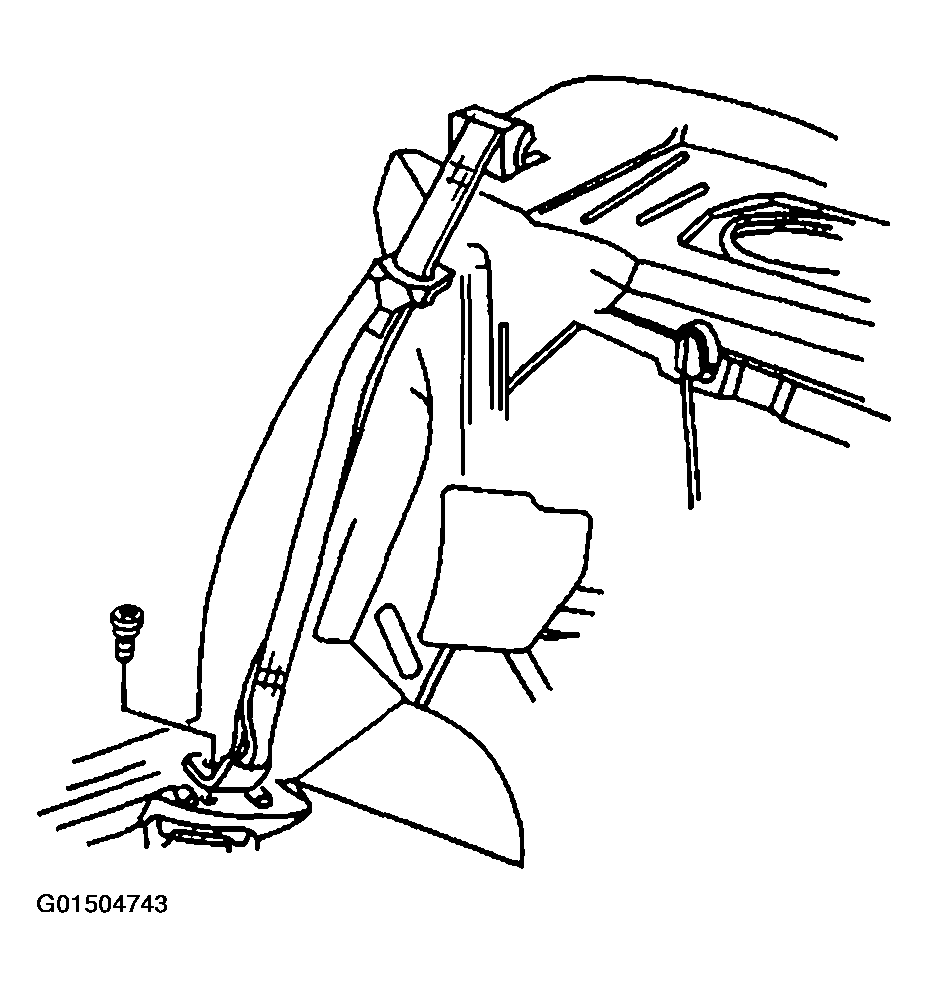

    Fig 1: Removing Procedure Seat Belt Retractor Rear (1 Of 2)
    G01504743Courtesy of GENERAL MOTORS CORP.
  5. Loosen the rear window trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  6. Remove the rear seat back sound barrier. Refer to SOUND BARRIER REPLACEMENT - REAR SEAT BACK in Interior Trim.
  7. Remove the rear seat retractor bolt.
  8. Remove the rear seat retractor from the vehicle.

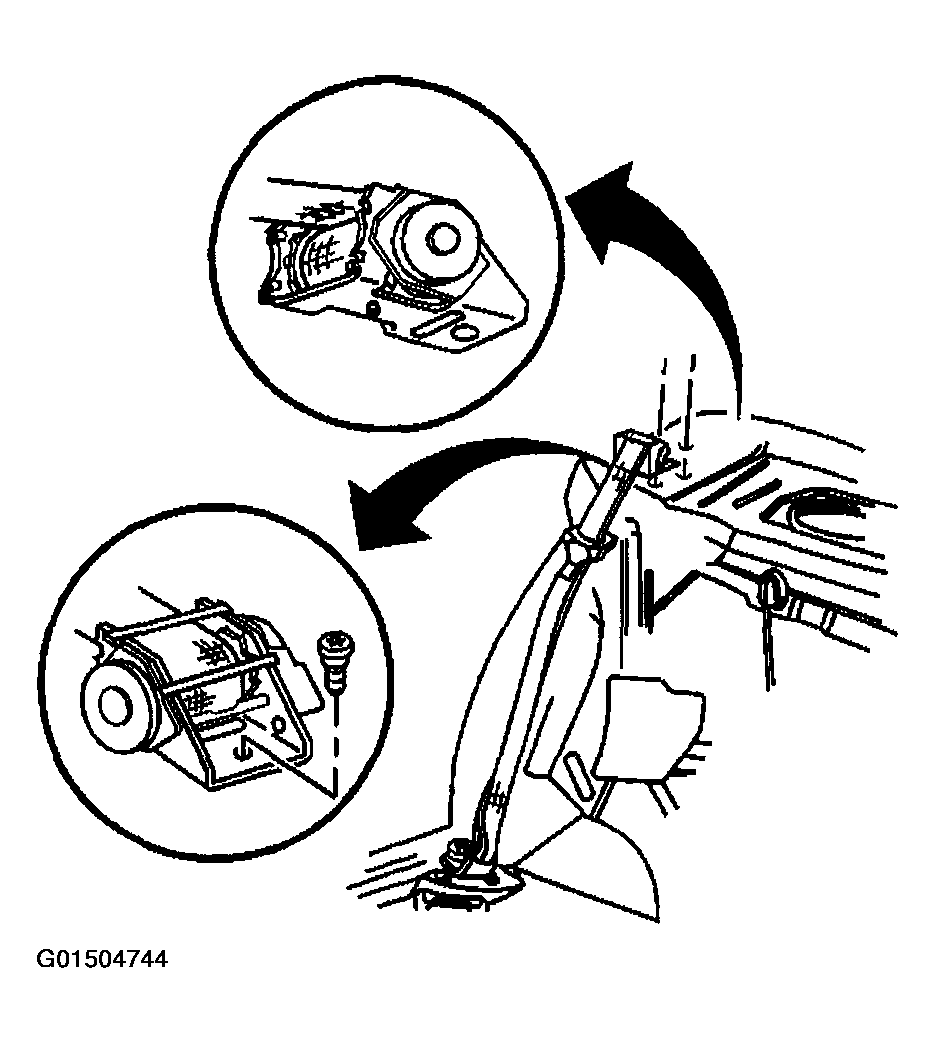

    Fig 2: Removing Seat Belt Retractor Rear (2 Of 2)
    G01504744Courtesy of GENERAL MOTORS CORP.
