Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the fuel filler door.
  2. Remove the fuel filler pocket. Refer to FUEL FILLER POCKET REPLACEMENT  .

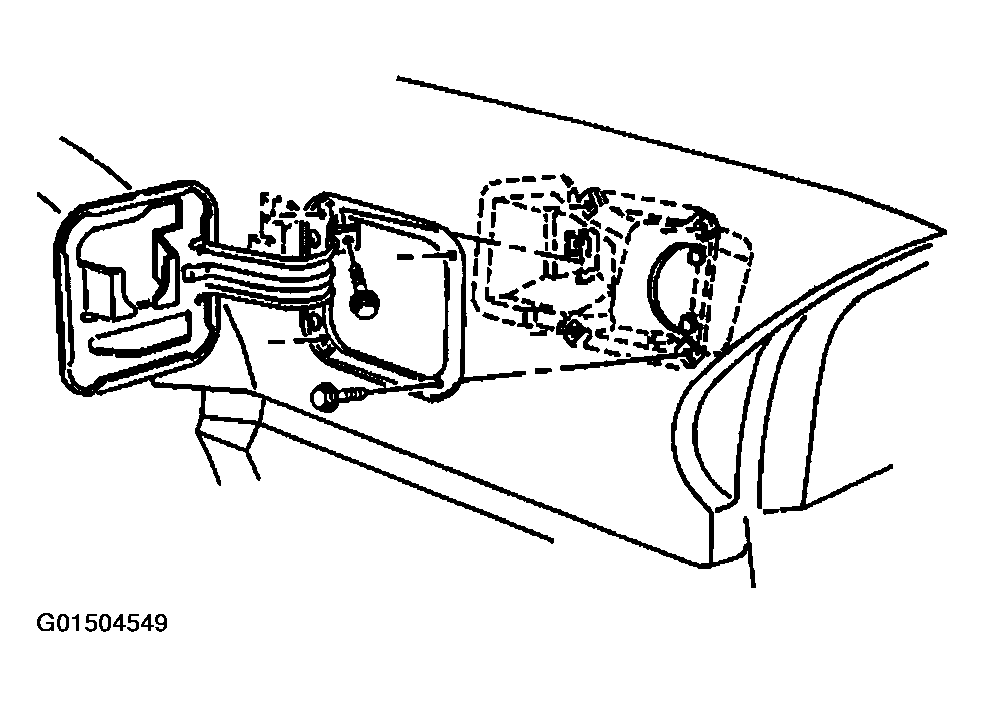

    Fig 1: Removing Fuel Filler Pocket
    G01504549Courtesy of GENERAL MOTORS CORP.
  3. Drill the rivets from the fuel filler door hinge.
  4. Remove the fuel filler door from the quarter panel.

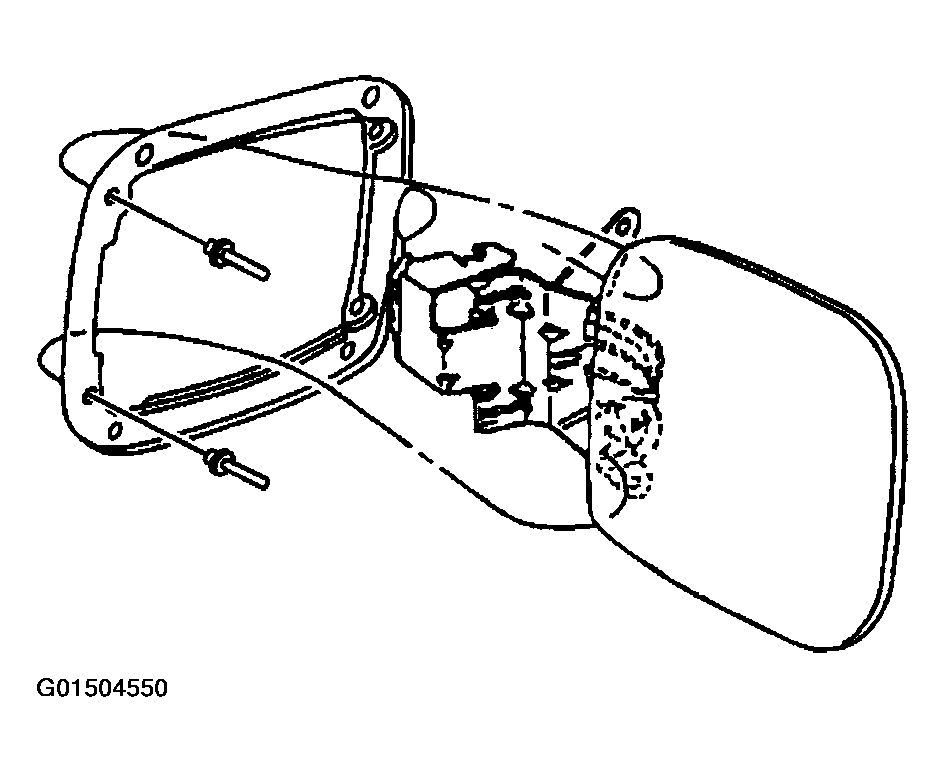

    Fig 2: Removing Fuel Filler Door From Quarter Panel
    G01504550Courtesy of GENERAL MOTORS CORP.
