Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR in Seats.
  2. Remove the rear door weatherstrip from the pinchweld flange to expose the quarter trim panel.
  3. Remove the rear quarter upper trim panel by disengaging the push-in retainers using J 38778
  4. Remove the rear quarter upper trim panel from the rear quarter inner panel.

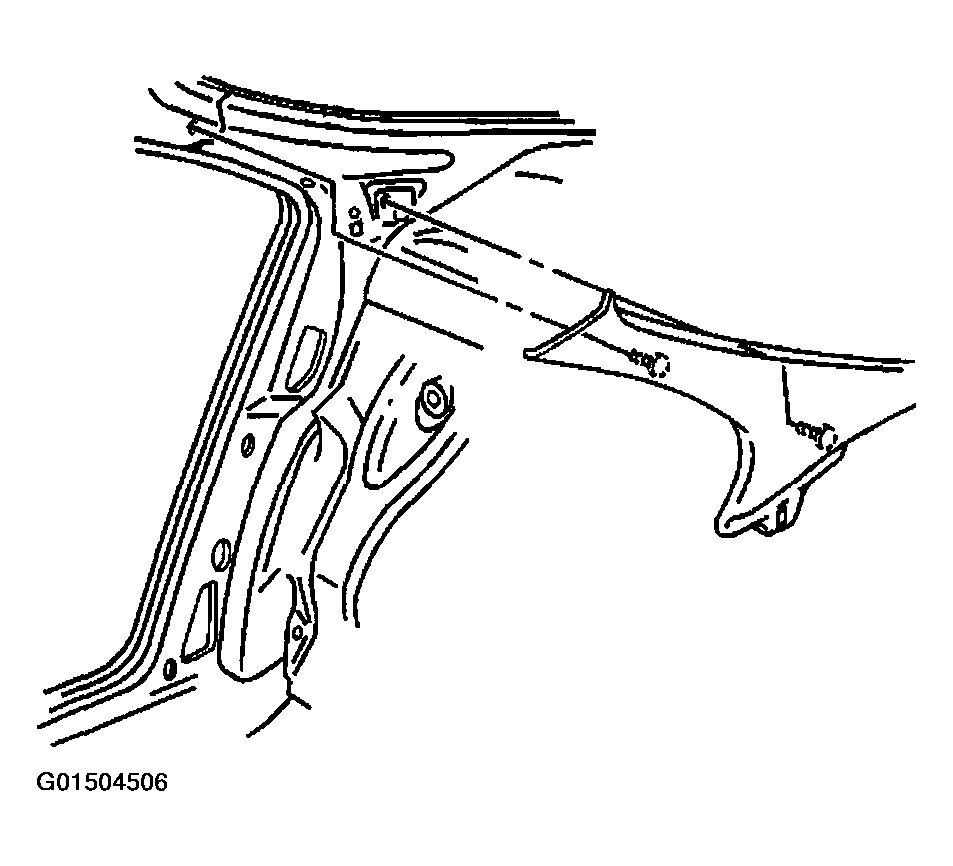

    Fig 1: Removing Rear Quarter Upper Trim Panel From Rear Quarter Inner Panel
    G01504506Courtesy of GENERAL MOTORS CORP.
