Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix and 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT -- REAR in Seats.
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR (STATIONARY) or SEAT BACK REPLACEMENT -- REAR (FOLDING) in Seats.
  3. Remove the screws from the lower center trim panel, carpet retaining leg. Position the carpet retaining leg inboard.

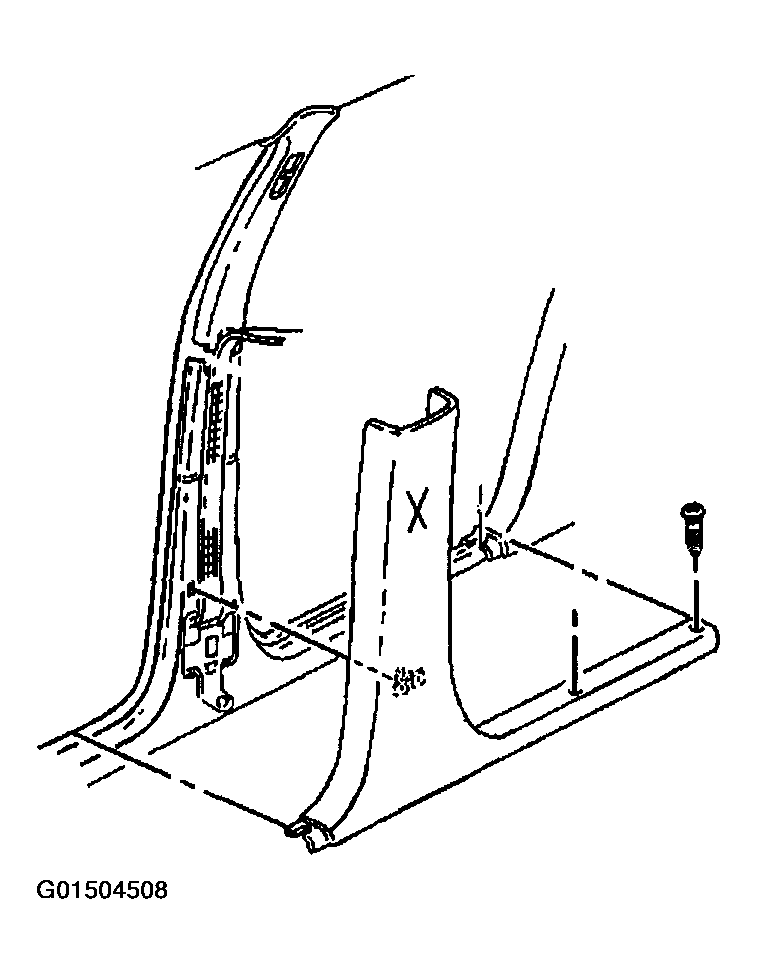

    Fig 1: Removing Screws From Lower Center Trim Panel
    G01504508Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear quarter lower trim panel by disengaging the push-in retainers using the J 38778  .
  5. Remove the rear quarter lower trim panel from the vehicle.

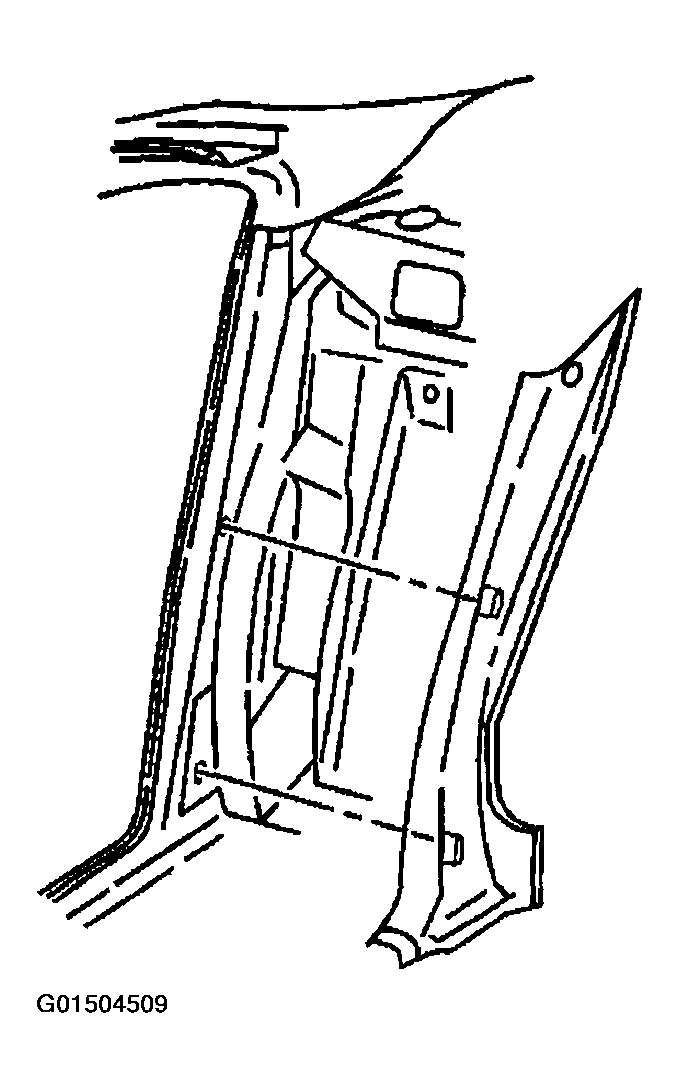

    Fig 2: Removing Rear Quarter Lower Trim Panel From Rear Quarter Inner Panel
    G01504509Courtesy of GENERAL MOTORS CORP.
