Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (STATIONARY)  or SEAT BACK REPLACEMENT - REAR (FOLDING)  .
  2. Remove the rear seat back cover from the rear seat back pad. Refer to SEAT BACK COVER REPLACEMENT - REAR  .
  3. Separate the seat pad from the frame.
  4. Remove the rear seat back pad.

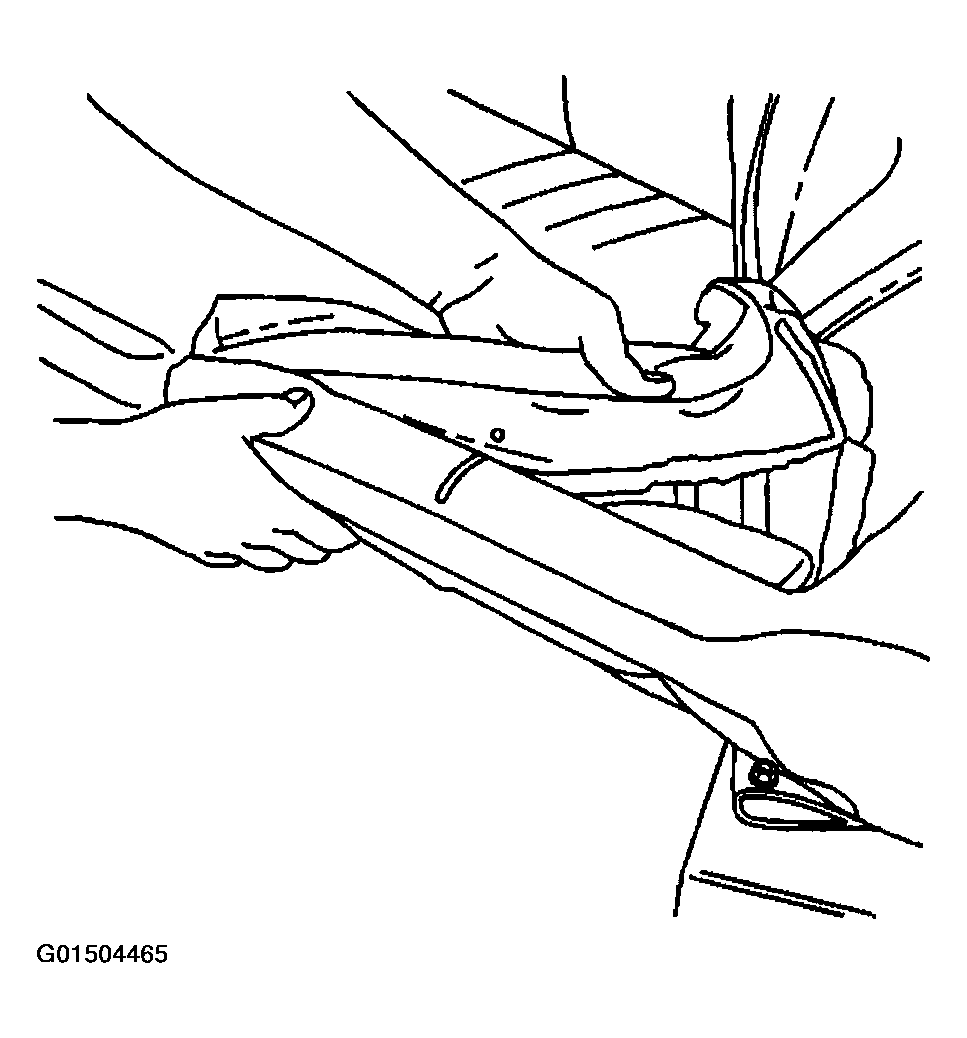

    Fig 1: Removing Rear Seat Back Pad From Frame
    G01504465Courtesy of GENERAL MOTORS CORP.
