Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR (STATIONARY)  or SEAT BACK REPLACEMENT - REAR (FOLDING)  .
  2. Remove the seat back cover. Refer to SEAT BACK COVER REPLACEMENT - REAR  .
  3. Remove the right and/or left rear seat back frame from the rear seat back pad.

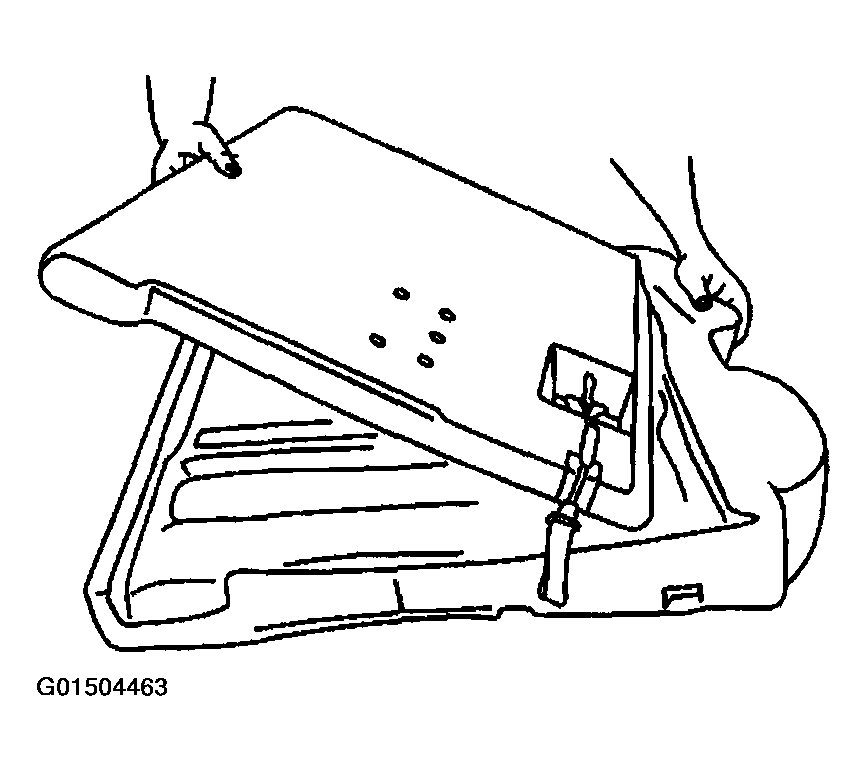

    Fig 1: Removing Rear Seat Back Frame From Rear Seat Back Pad
    G01504463Courtesy of GENERAL MOTORS CORP.
