Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door outer belt sealing strip screw.
  2. Lift to remove the sealing strip (3) from the door flange.

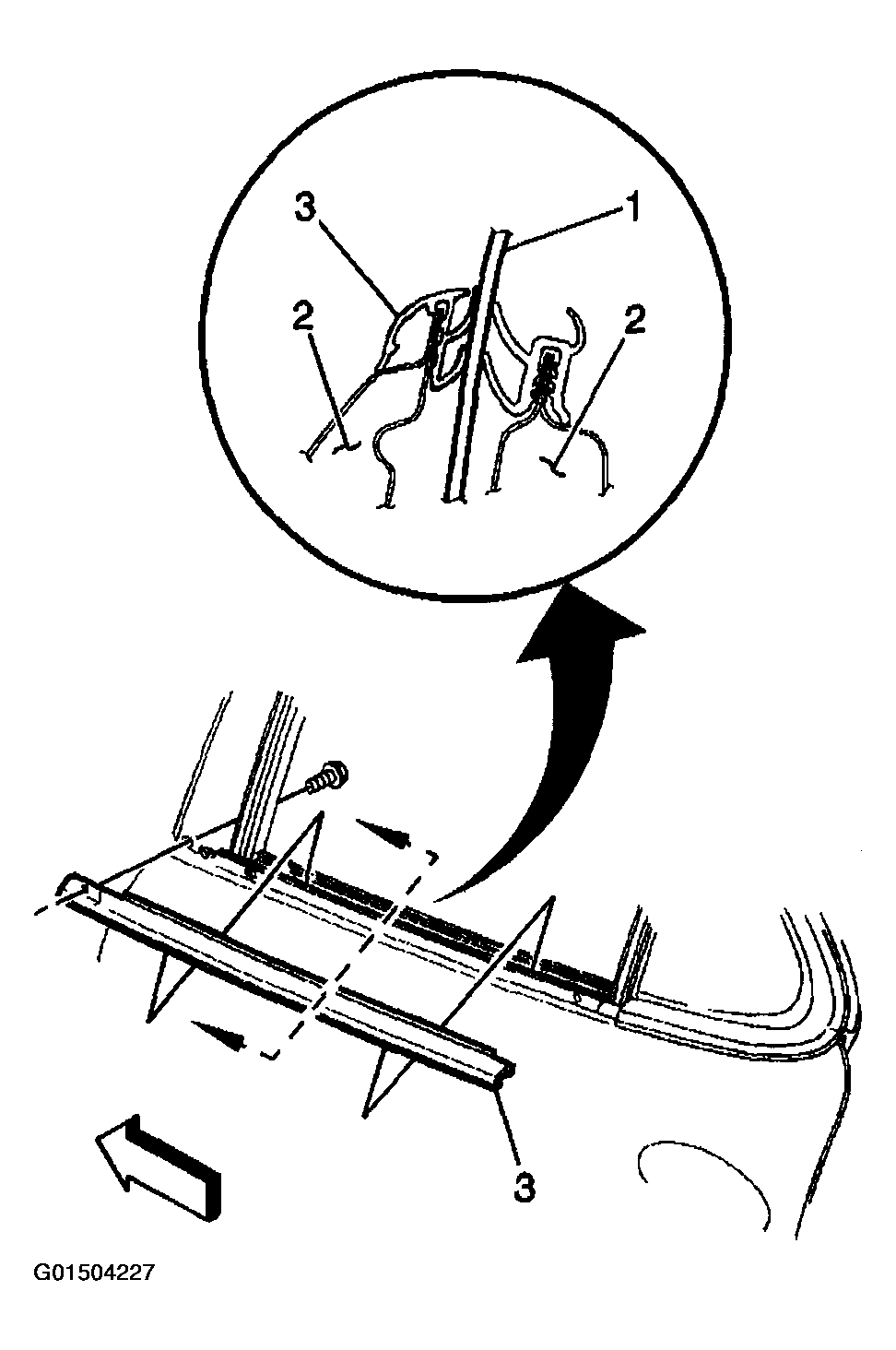

    Fig 1: Removing Rear Door Outer Belt Sealing Strip From Door Flange
    G01504227Courtesy of GENERAL MOTORS CORP.
