Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the protective backing paper from the adhesive on the rear side hood seal.
  2. Install the rear side hood seal to the pinch-weld flange and motor compartment flange.
  3. Press the side rear hood seal onto the pinch-weld flange and motor compartment flange until the adhesive is fully adhered.
  4. Close the hood.

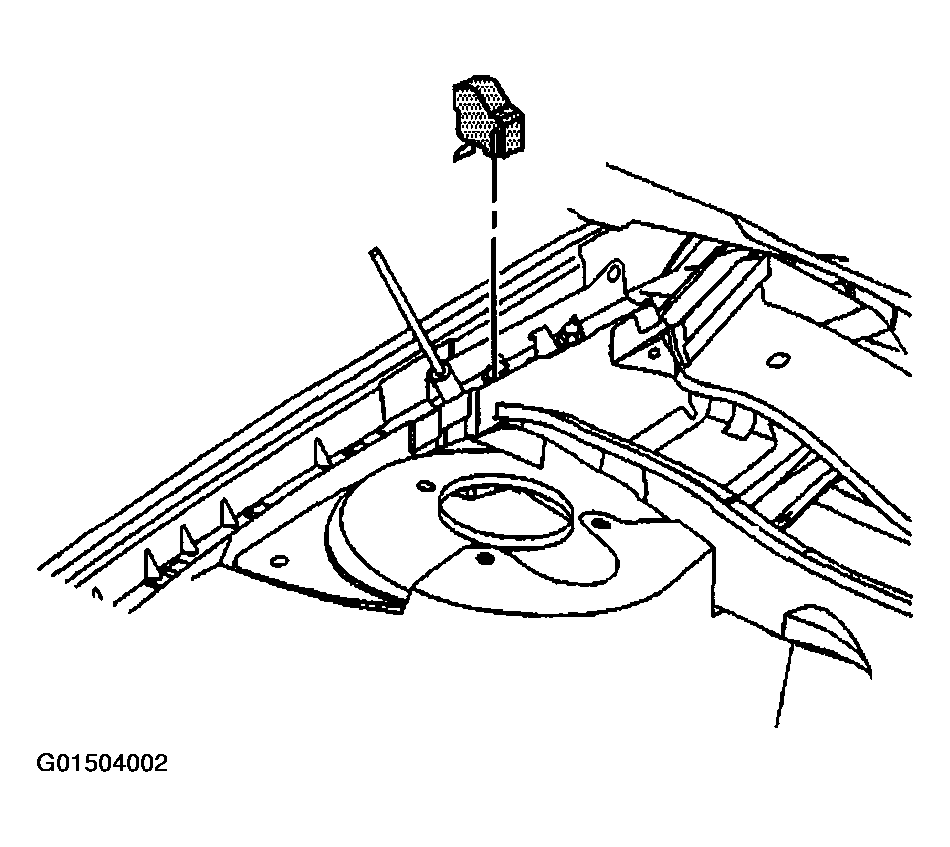

    Fig 1: Installing Rear Side Hood Seal
    G01504002Courtesy of GENERAL MOTORS CORP.
