Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the electrical connection to the low tire reset switch, if equipped.
  2. Align the steering column filler locating pins and the retaining clips with slots in the instrument panel.
  3. Press down on the steering column filler in order to lock in the retainers.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the steering column filler bolts.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

  5. Install the left IP insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - Left .

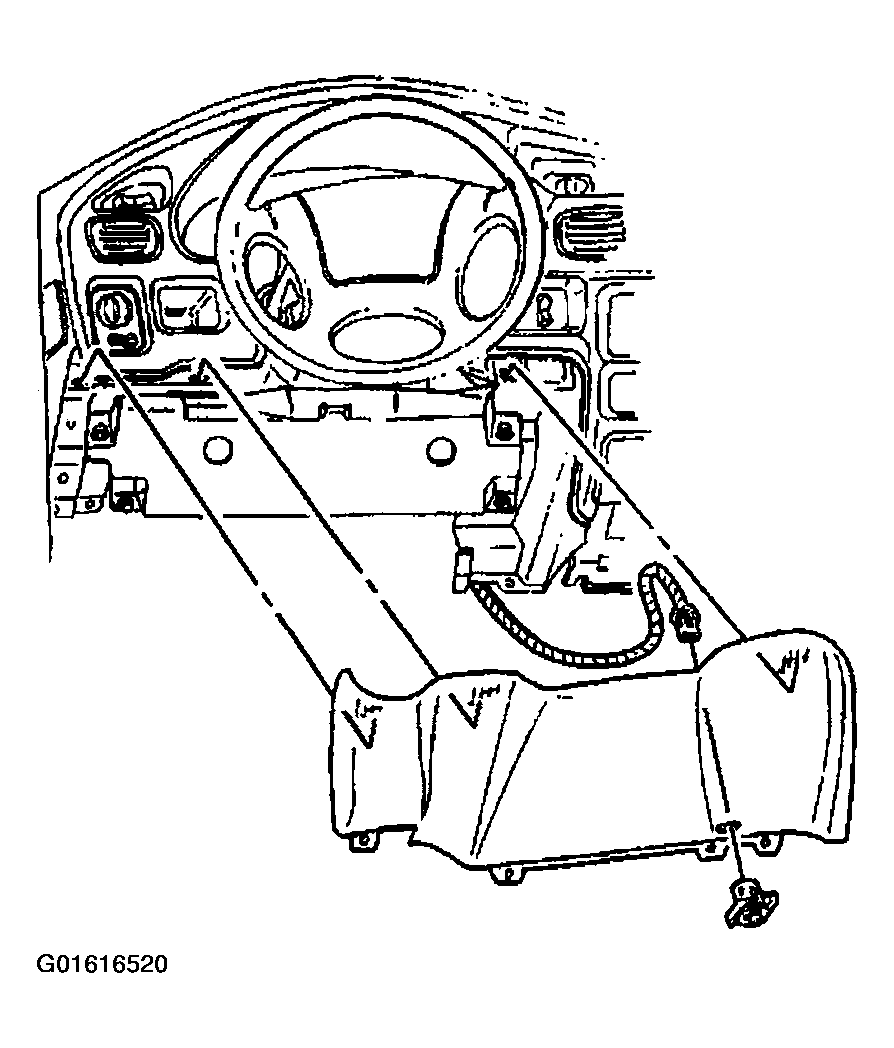

    Fig 1: Steering Column Filler
    G01616520Courtesy of GENERAL MOTORS CORP.
