Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left or the right valve rocker arm cover. Refer to VALVE ROCKER ARM COVER REPLACEMENT - LEFT  or VALVE ROCKER ARM COVER REPLACEMENT - RIGHT  .
  2. Remove the rocker arm bolts.

    Important:  Place the parts on a clean surface. Store the components in order so they can be reassembled in the same location and with the same mating surfaces as when removed.

  3. Remove the valve rocker arms.

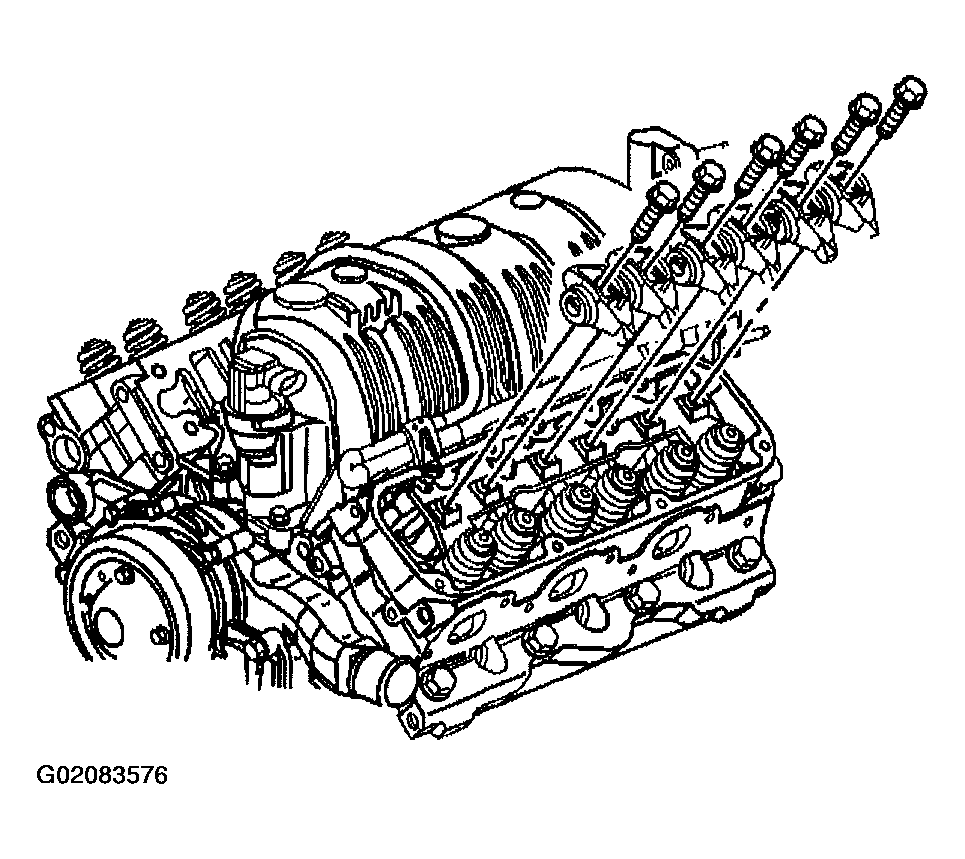

    Fig 1: Removing Rocker Arm And Bolts
    G02083576Courtesy of GENERAL MOTORS CORP.
  4. Remove the push rod guide plates if all the valve rocker arms are removed.

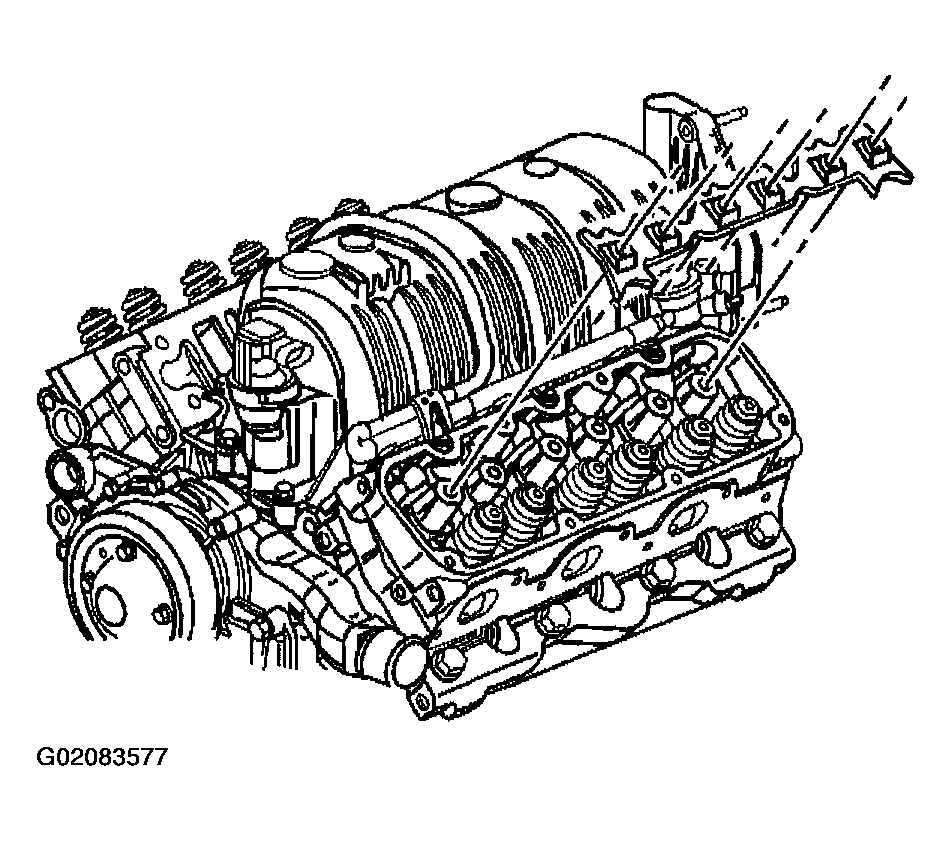

    Fig 2: Removing Push Rod Guide Plates
    G02083577Courtesy of GENERAL MOTORS CORP.
  5. Remove the push rods.
  6. Clean the push rods, the valve rocker arms, the bolts, and the guide plates.
  7. Clean the valve rocker arm bolts of all thread adhesive.

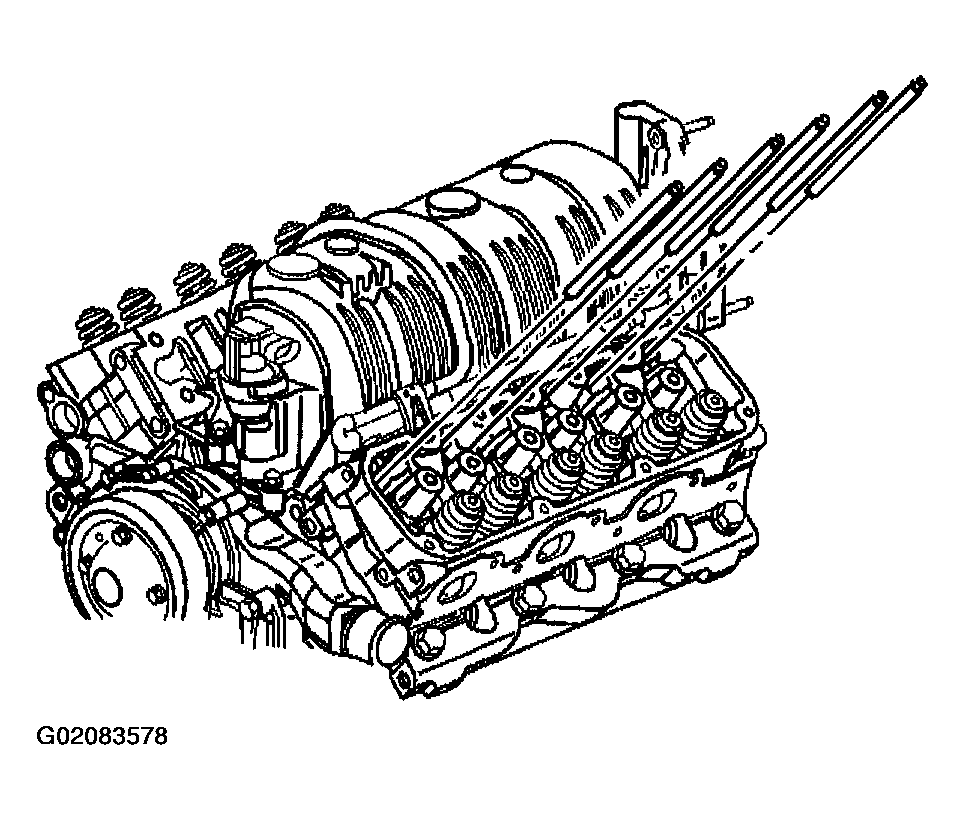

    Fig 3: Removing Push Rods
    G02083578Courtesy of GENERAL MOTORS CORP.
