Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft balancer. Refer to CRANKSHAFT BALANCER REPLACEMENT  .

    Important:  Be careful not to damage the crankshaft.

  2. Pry out the crankshaft front oil seal with a flat bladed tool such as a large screwdriver. Use care to avoid damaging the crankshaft front oil seal bore or the crankshaft front oil seal contact surfaces.
  3. Inspect the crankshaft balancer and engine front cover for scratches.

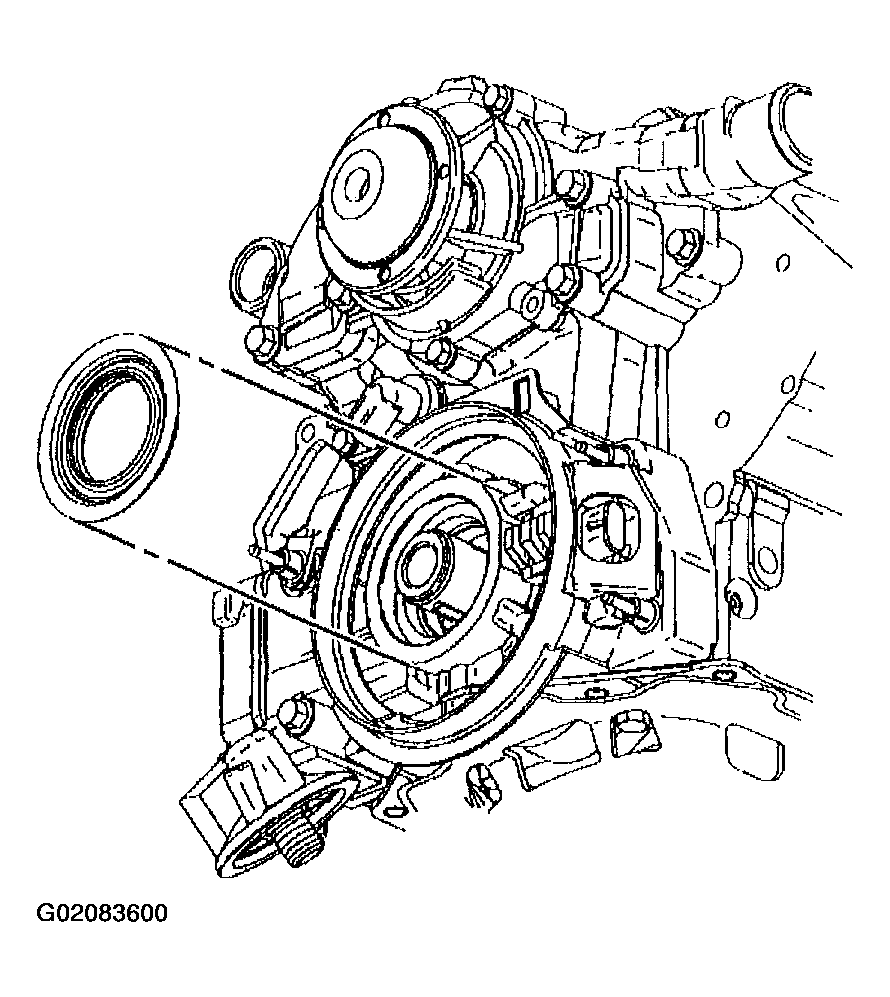

    Fig 1: Removing Crankshaft Front Oil Seal
    G02083600Courtesy of GENERAL MOTORS CORP.
