Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt tensioner by lifting or rotating the drive belt tensioner off of the drive belt, using a 3/8 inch breaker bar (1).

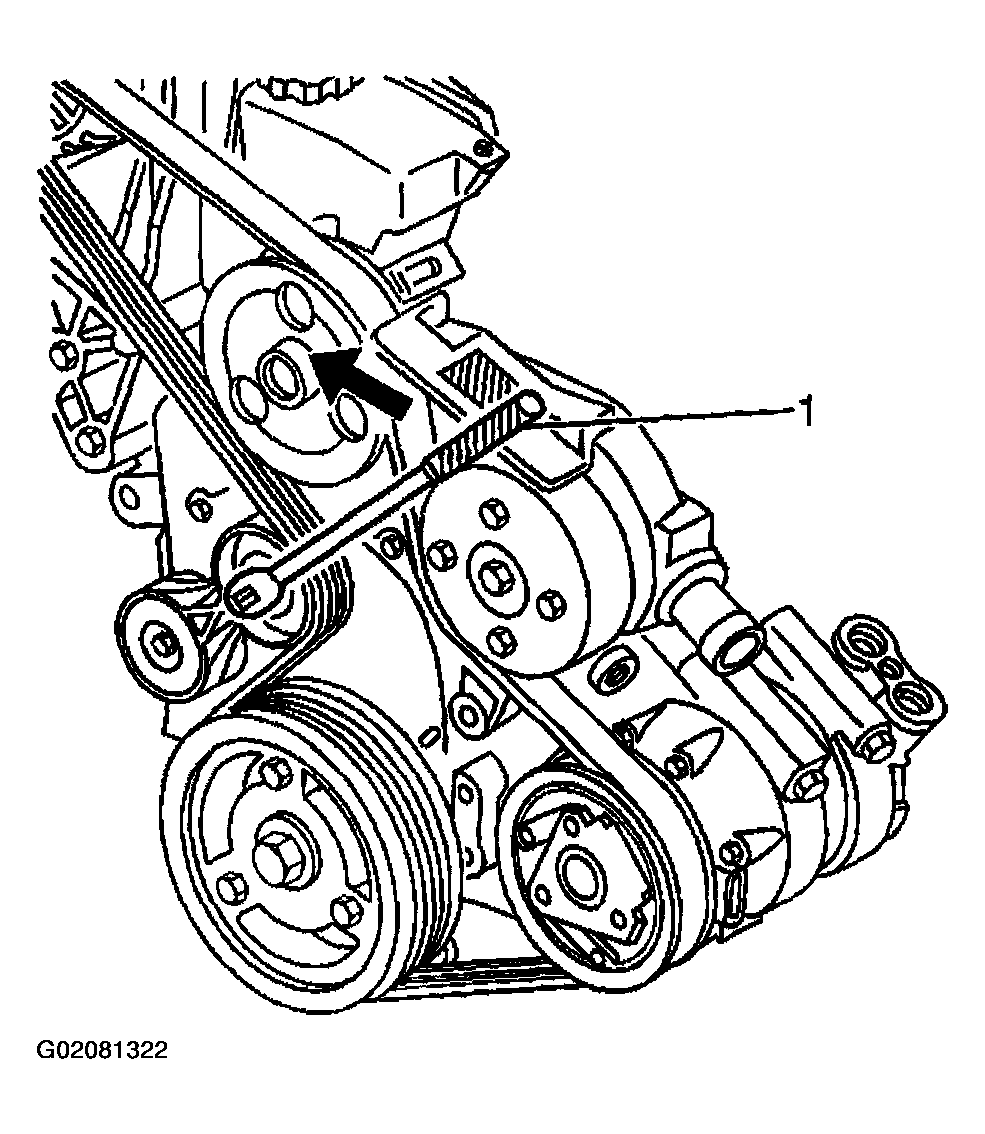

    Fig 1: Removing Drive Belt Tensioner
    G02081322Courtesy of GENERAL MOTORS CORP.
  2. Remove the drive belt.

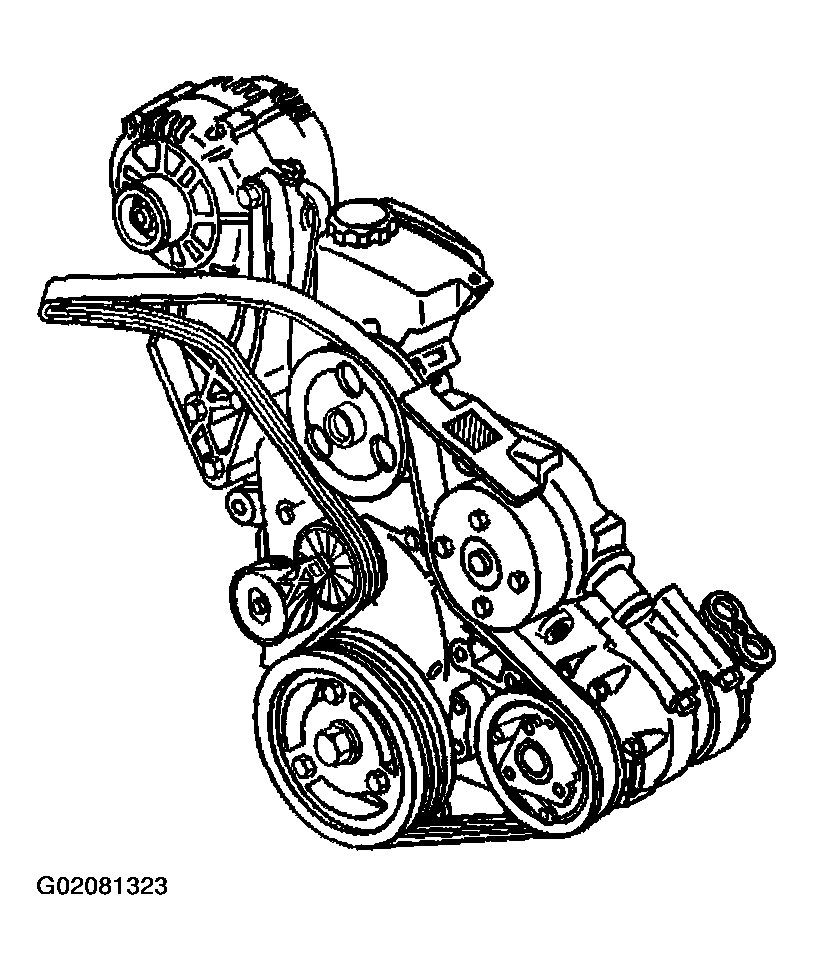

    Fig 2: Removing Drive Belt
    G02081323Courtesy of GENERAL MOTORS CORP.
