Oil Pump Drive Installation

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply prelube GM P/N United States 12345501, GM P/N Canada 992704 or the equivalent to the oil pump drive gear.
  2. Apply engine oil to the oil pump drive gear assembly for ease of assembly.
  3. Install the oil pump drive gear assembly.
  4. Install the oil pump drive gear clamp.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the oil pump drive gear clamp bolt.

    Tighten

    Tighten the oil pump drive gear clamp bolt to 36 N.m (27 lb ft).

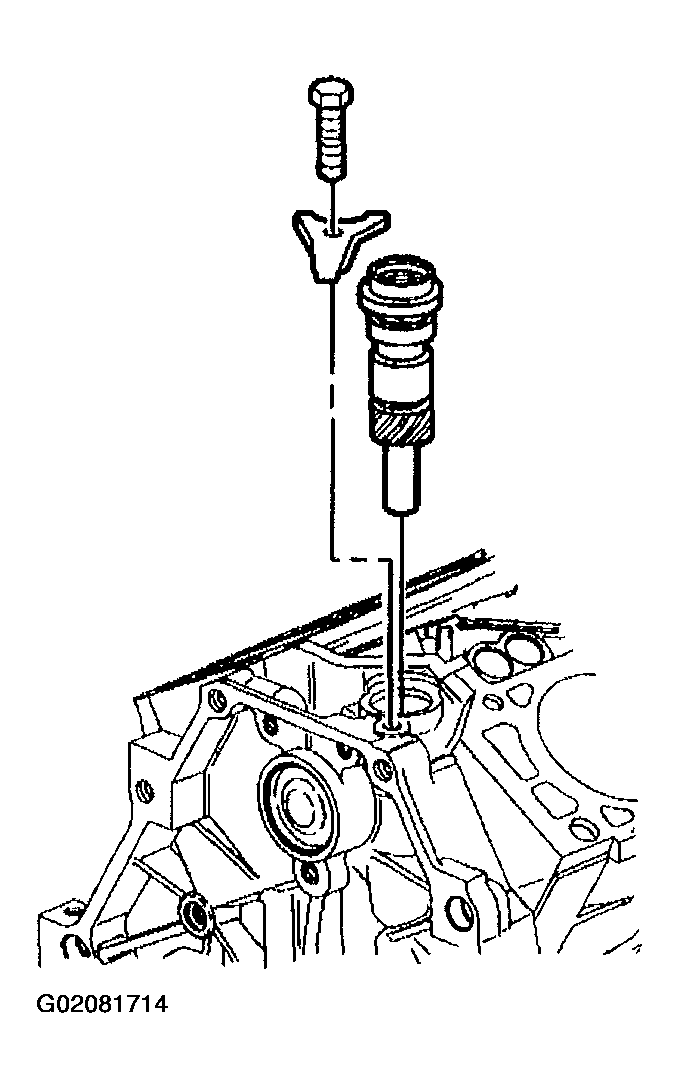

    Fig 1: Installing Oil Pump Drive Gear
    G02081714Courtesy of GENERAL MOTORS CORP.
