Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear floor air outlet duct.
  2. Connect the rear floor air outlet duct to the heater core outlet cover.
  3. Position the rear floor air outlet duct (1) to the holes in the floor reinforcement and press into place.
  4. Install the floor carpet. Refer to CARPET REPLACEMENT - FRONT .

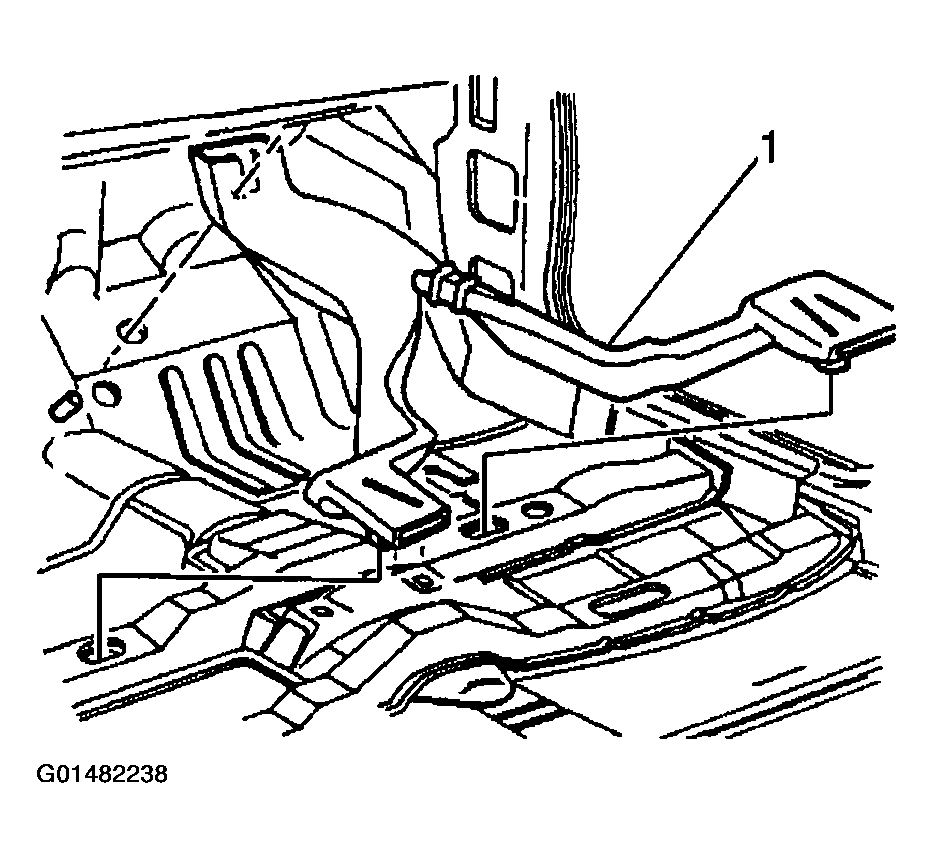

Fig 1: Installing Rear Floor Air Outlet Duct
G01482238Courtesy of GENERAL MOTORS CORP.
