Cooling Fan Inoperative (3.8L)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

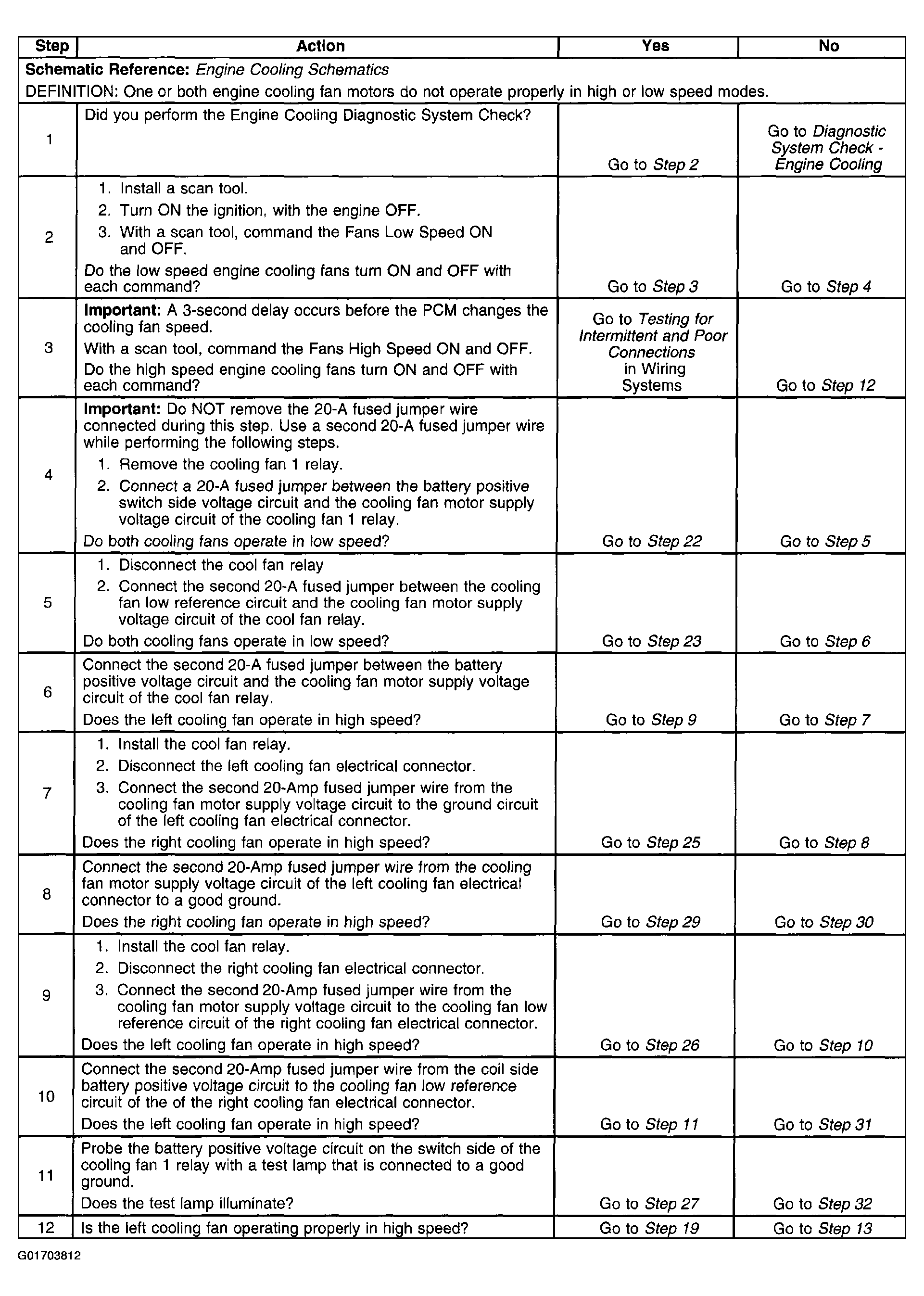

Fig 1: Cooling Fan Inoperative (3.8L) (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Cooling Fan Inoperative (3.8L) (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

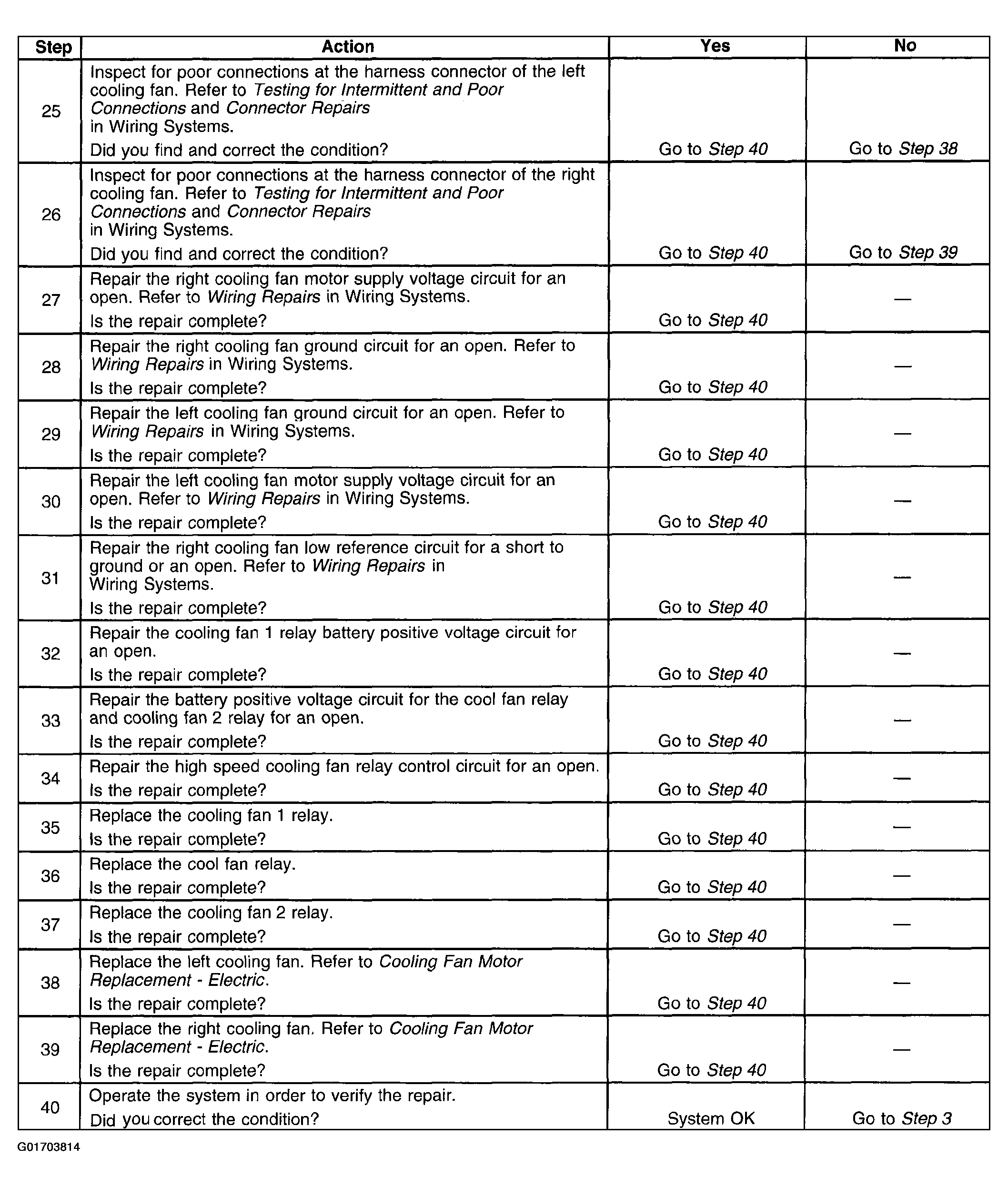

Fig 3: Cooling Fan Inoperative (3.8L) (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
