Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground (negative) cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the right engine mount strut at the upper engine mount strut bracket. Refer to Engine Mount Strut Replacement - Left  and Engine Mount Strut Replacement - Right .

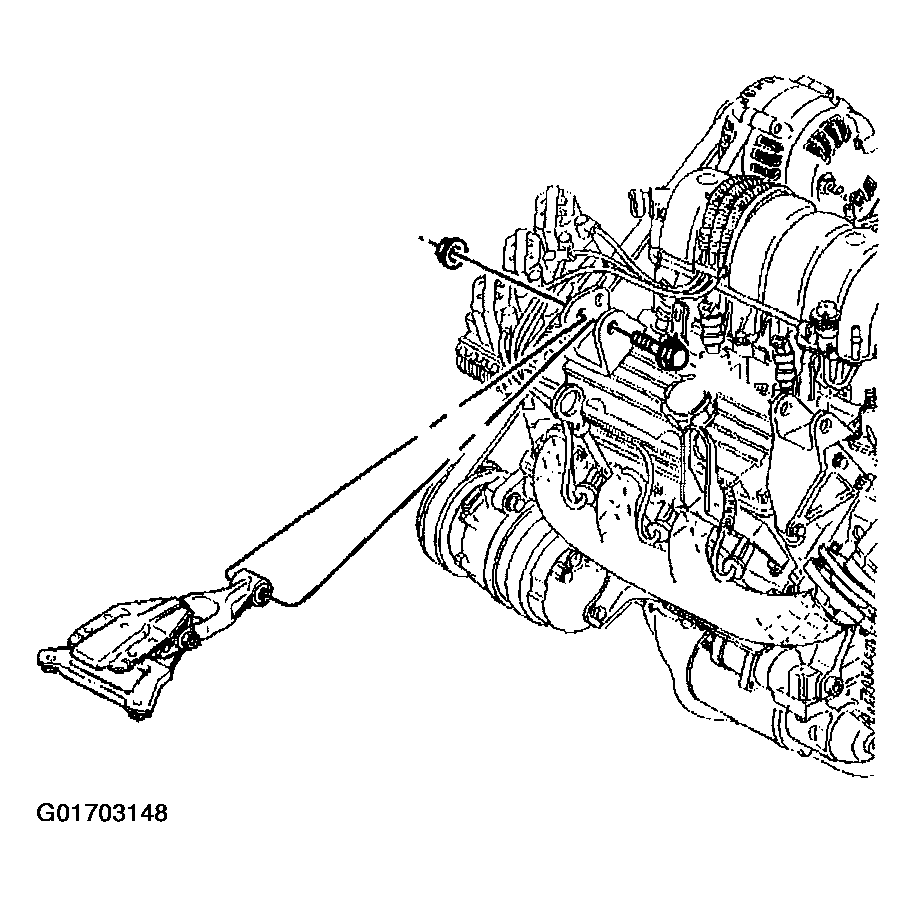

    Fig 1: Right Engine Mount Strut
    G01703148Courtesy of GENERAL MOTORS CORP.
  3. Loosen the lower engine mount strut bracket nut.
  4. Remove the lower engine mount strut bracket bolts.
  5. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement (L36)  or Fuel Injector Sight Shield Replacement (L67) .
  6. Remove the EVAP emissions canister purge valve. Refer to EVAP CANISTER PURGE SOLENOID .

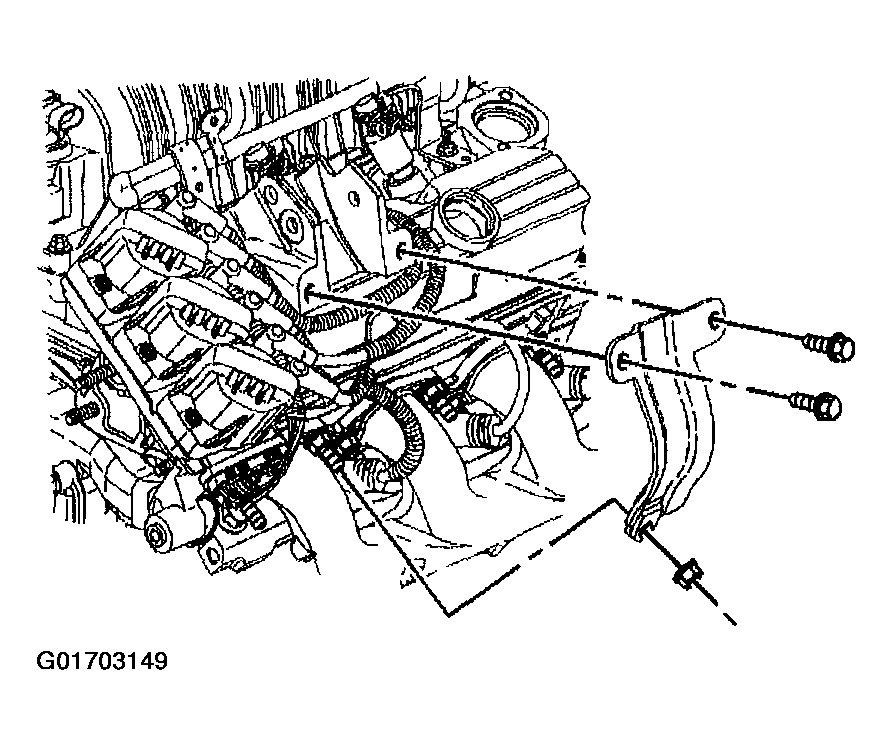

    Fig 2: Lower Engine Mount Strut Bracket
    G01703149Courtesy of GENERAL MOTORS CORP.
  7. Remove the upper engine mount strut bracket bolts.
  8. Remove the upper engine mount strut bracket.

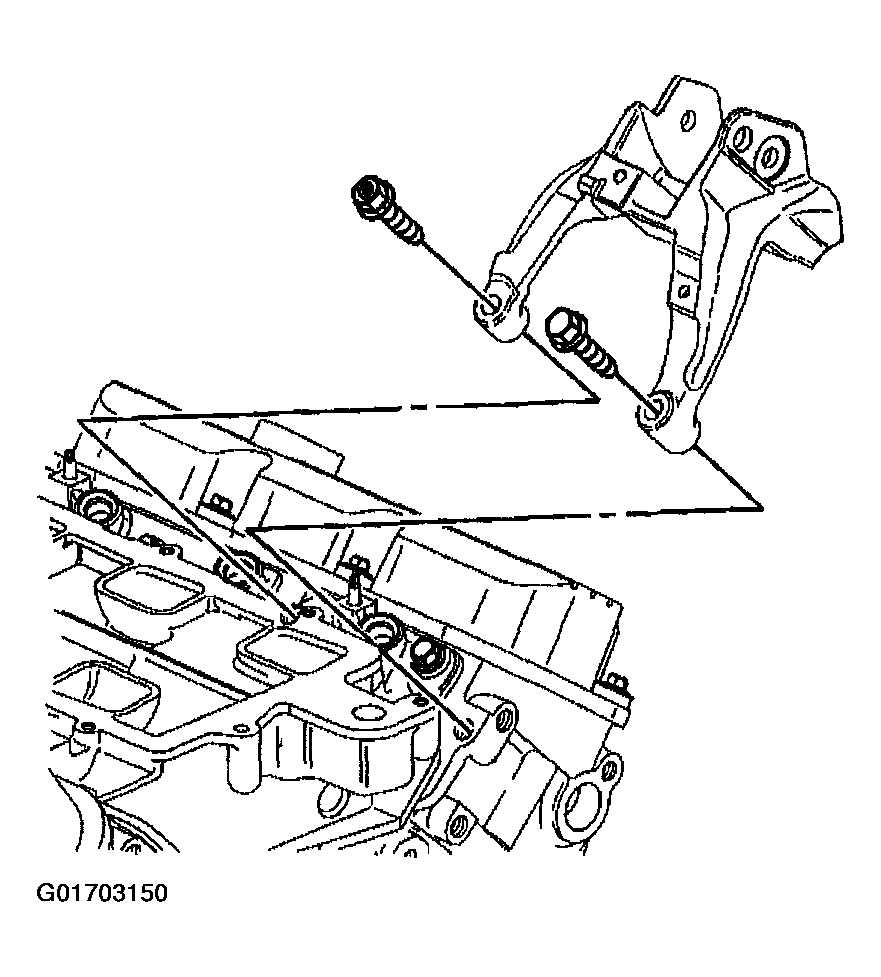

    Fig 3: Upper Engine Mount Strut Bracket
    G01703150Courtesy of GENERAL MOTORS CORP.
