Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the relay (1) to the wire harness connector (2)
  2. Install any connector position assurance (CPA) devices or secondary locks
  3. Install the relay using any fasteners or tape that originally held the relay in place

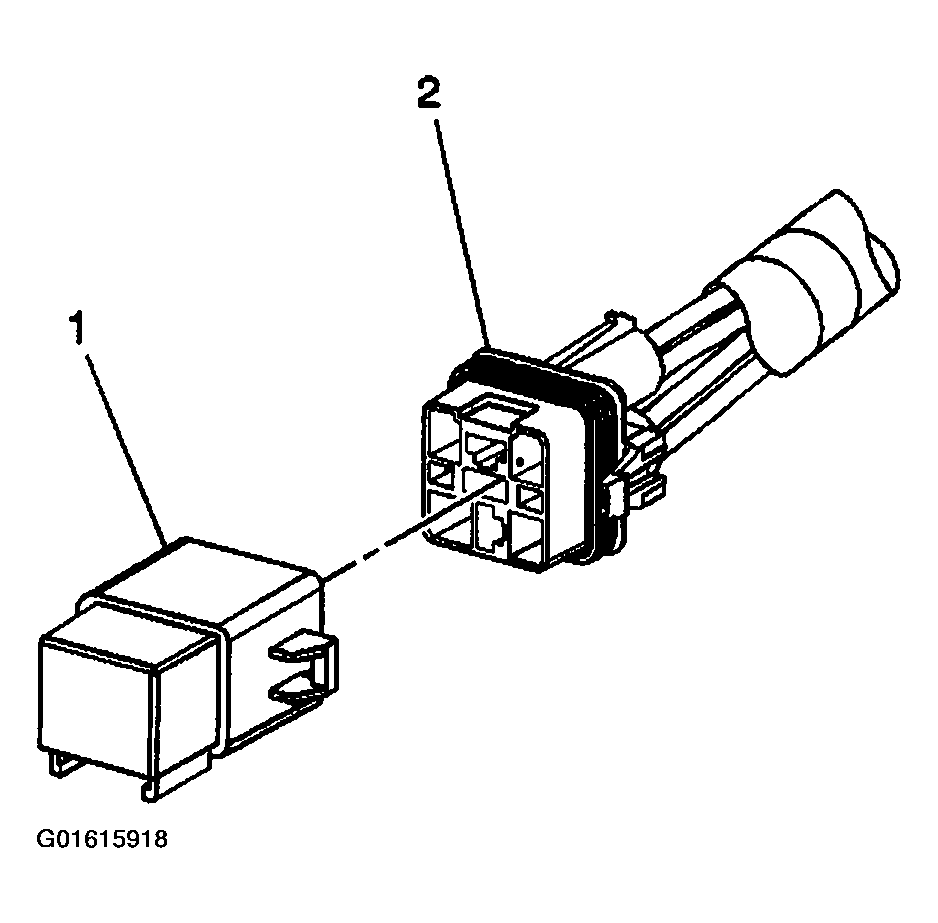

    Fig 1: Relay & Wire Harness Connector
    G01615918Courtesy of GENERAL MOTORS CORP.
