Rear Hoist Pads

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

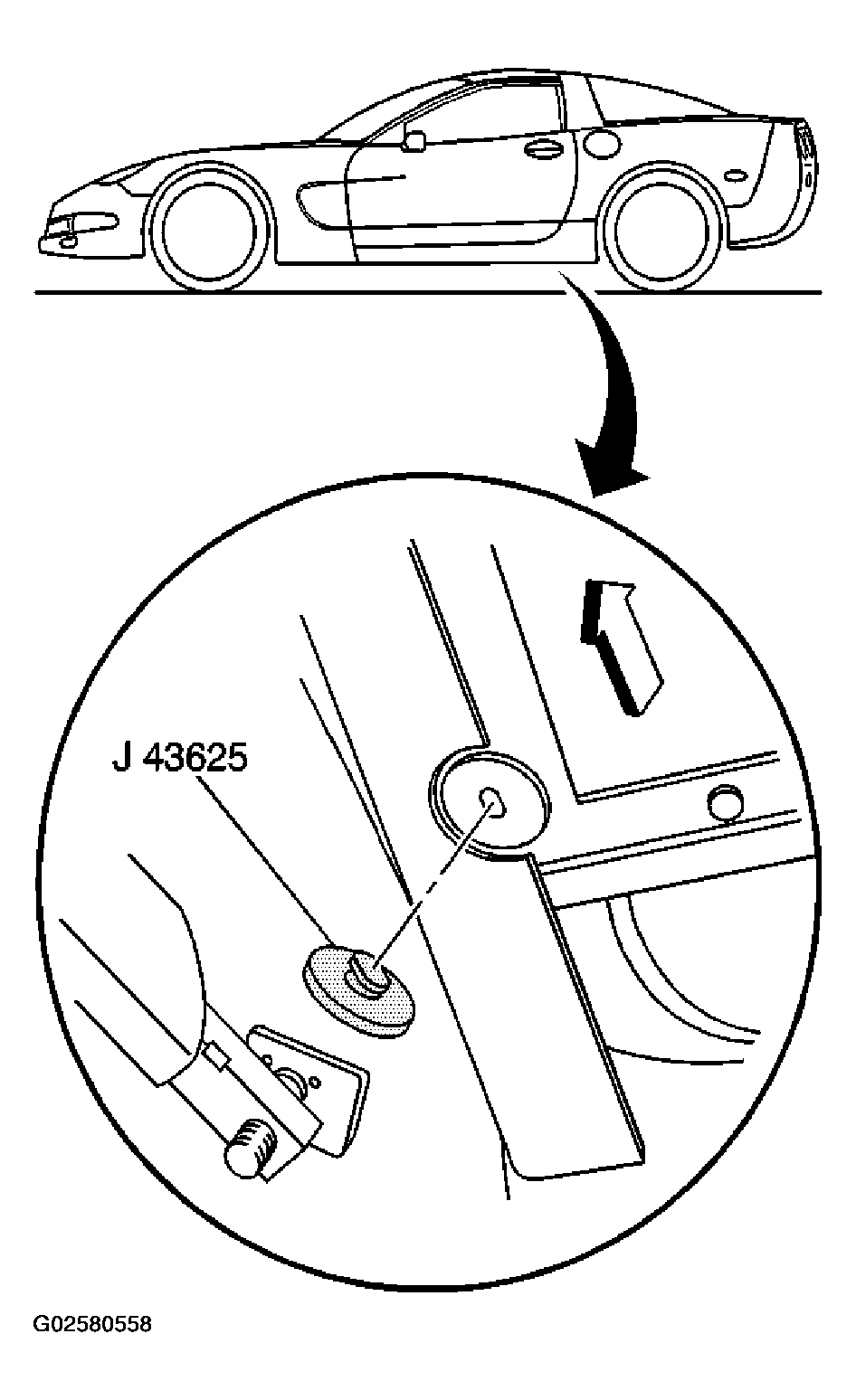

Fig 1: Identifying Vehicle Lifting - Rear Hoist Pads

Courtesy of GENERAL MOTORS CORP.

Important:

The rear hoist pads must not contact the rocker panels to the outside of the frame rail shipping slot reinforcements.
The rear hoist pads must not contact the floor pan.

Install the J 43625 into the rear frame rail shipping slots, lock into place and position the rear hoist pads as follows:

Under the J 43625.
The long sides of the hoist pads perpendicular to the J 43625.
