Under the Frame Rails - Rear

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

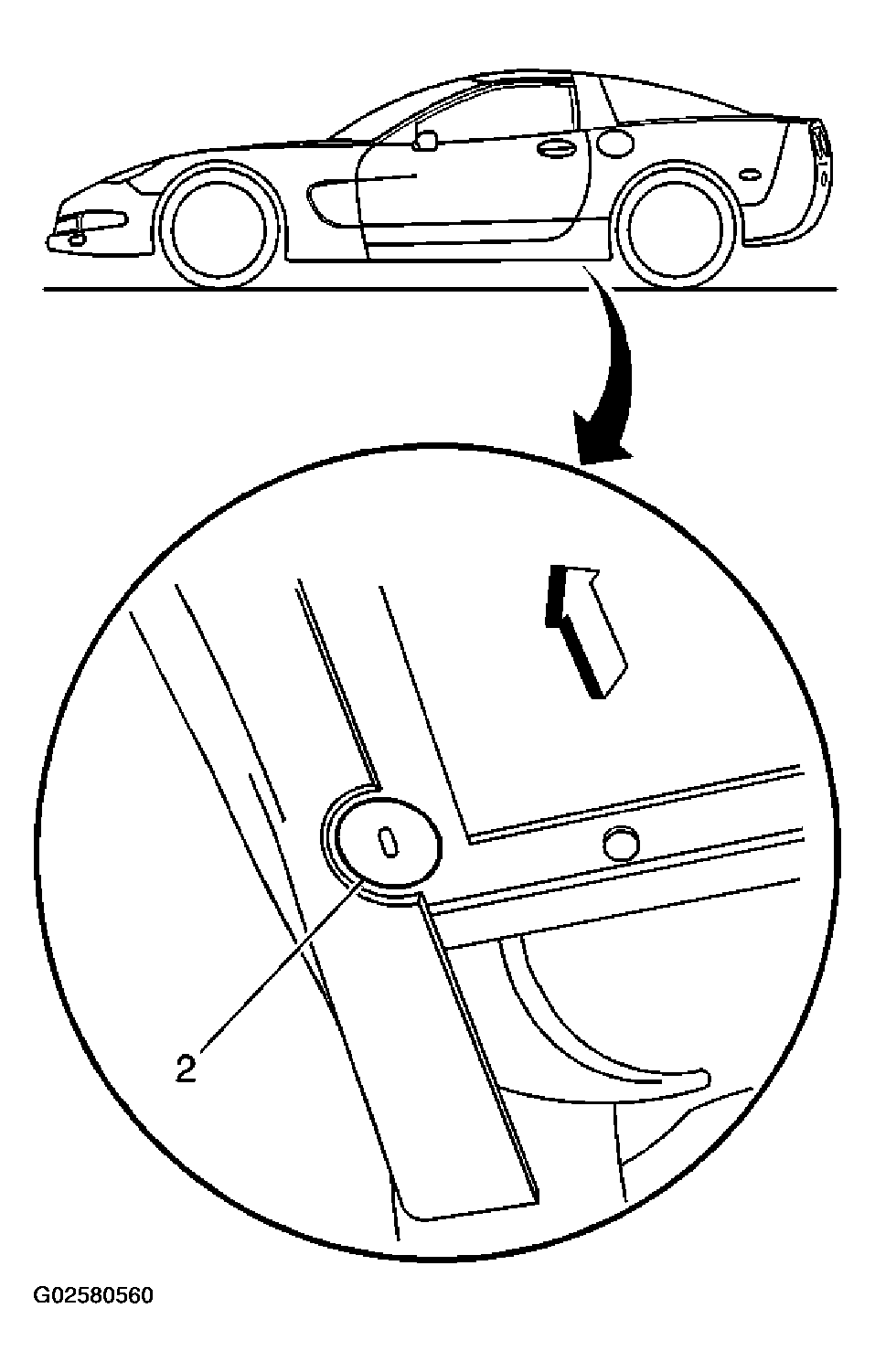

Fig 1: Identifying Vehicle Jacking - Under Frame Rails (Rear)

Courtesy of GENERAL MOTORS CORP.

Important: Use only service jacks utilizing 64 mm (2 1/2 inch) or smaller diameter lifting pads, to reduce the possibility of contact with undesired areas of the vehicle:

The service jack lift pad must not contact the rocker panels, or the floor pan.

Position the service jack lift pad as follows:

Under the frame rail shipping slot reinforcements (2).
