Tire and Wheel Runout Specification

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

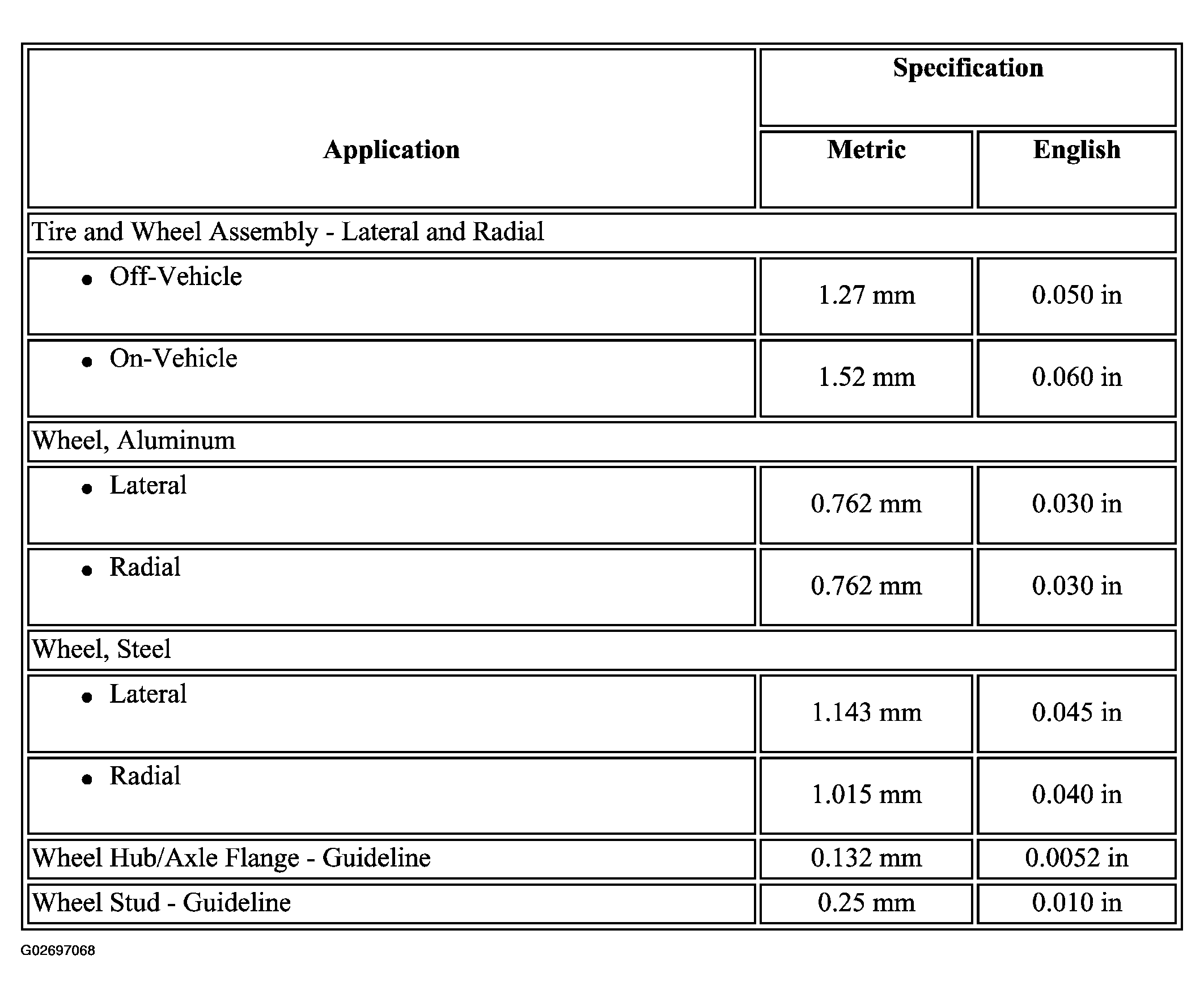

Fig 1: Tire & Wheel Runout Specification
G02697068Courtesy of GENERAL MOTORS CORP.
