Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the removable roof panel.
    Fig 1: Removable Roof Panel
    G01452171Courtesy of GENERAL MOTORS CORP.
  2. Remove the weatherstrip from the retainer. Refer to WEATHERSTRIP REPLACEMENT - ROOF LIFT OFF PANEL REAR  .
  3. Remove the screws attaching the retainer.
  4. Remove the retainer.

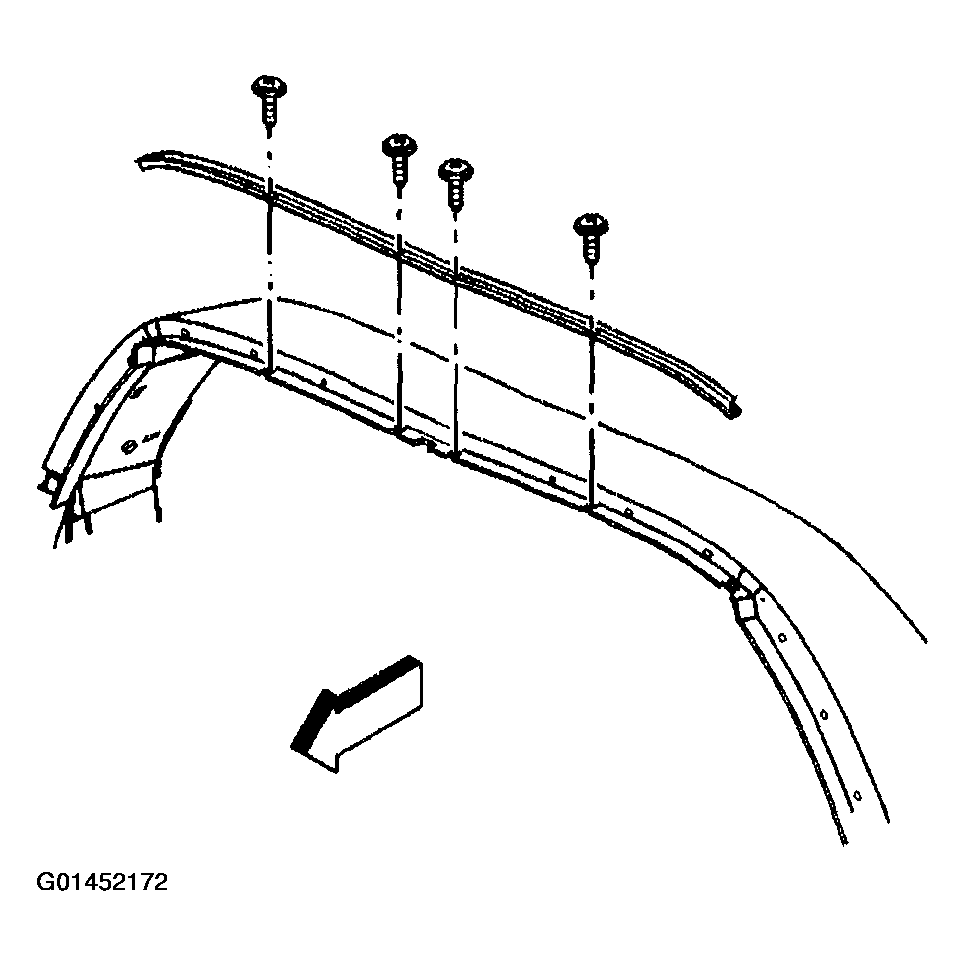

    Fig 2: Removing Screws Attaching Retainer
    G01452172Courtesy of GENERAL MOTORS CORP.
