Removal Procedure

The electronically operated fuel filler door can be manually opened from inside the rear trunk by pulling on the manual release cable located behind the stowage compartment support trim.

1. Open the fuel door and remove the jam nut from the actuator cable.
   Fig 1: Removing Jam Nut From Actuator Cable

   Courtesy of GENERAL MOTORS CORP.
2. Remove the drivers side rear tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.

   Remove the drivers side rear wheelhouse liner panel for cable installation access.

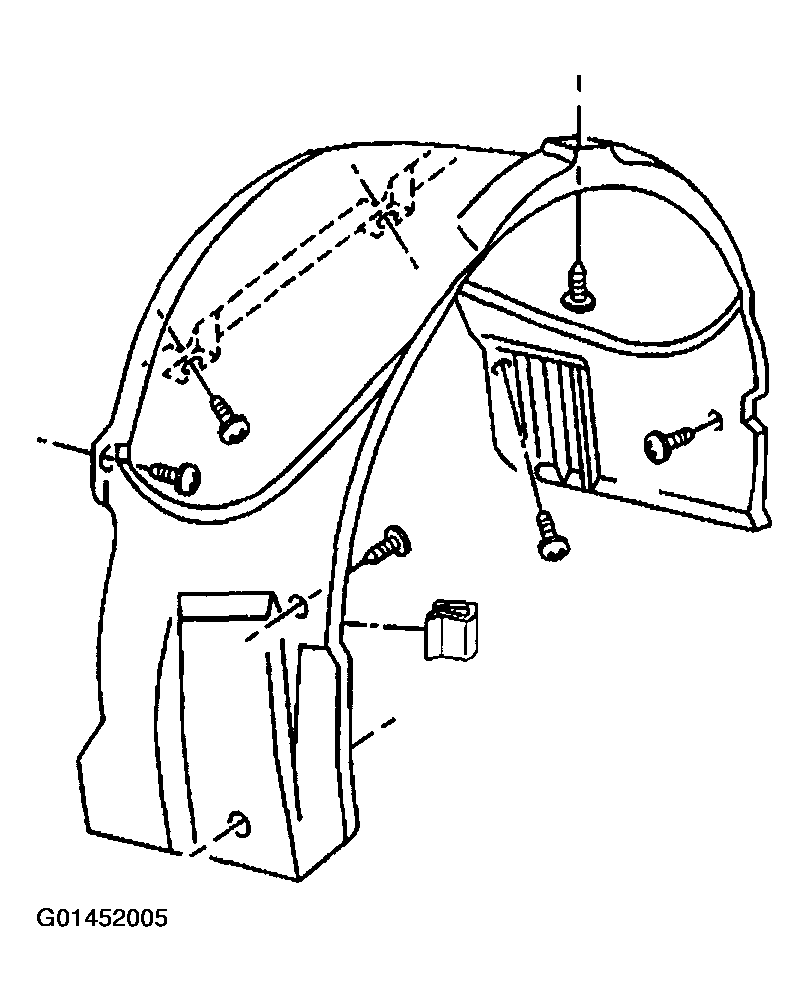

   Fig 2: Drivers Side Rear Wheelhouse Liner Panel

   Courtesy of GENERAL MOTORS CORP.
3. Raise the convertible top.
4. Position the seat forward for better access.

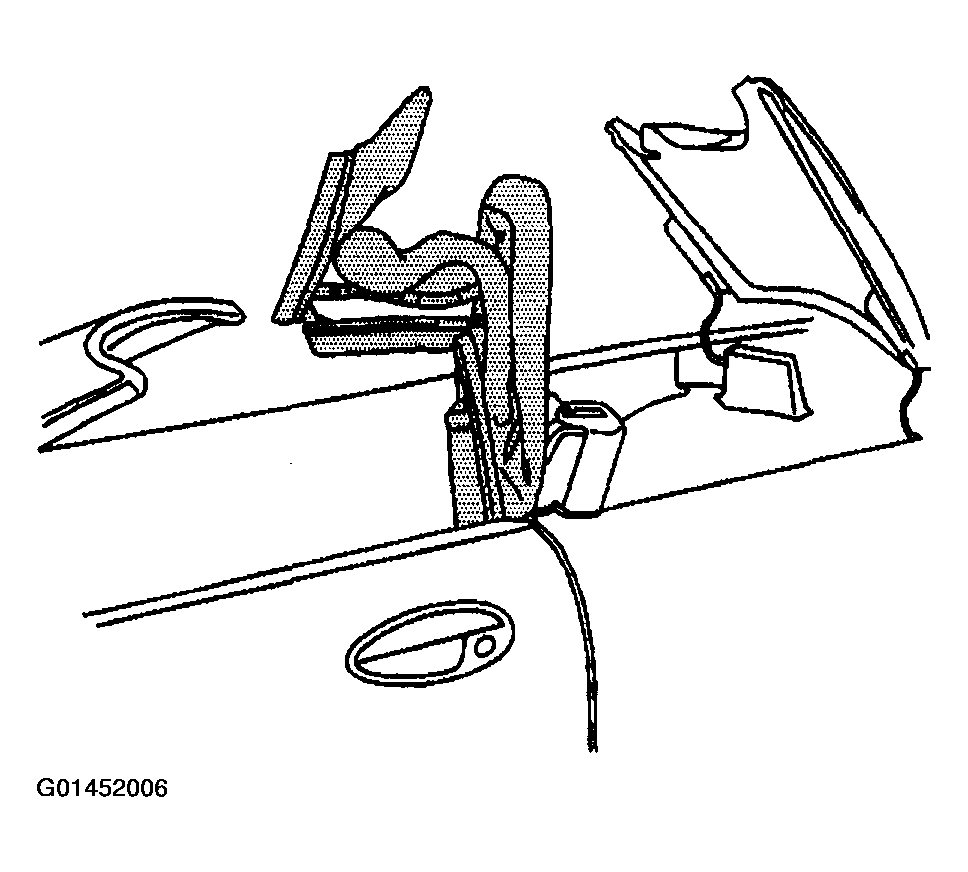

   Fig 3: Raising Convertible Top

   Courtesy of GENERAL MOTORS CORP.
5. Remove the trim panel from the rear compartment support.

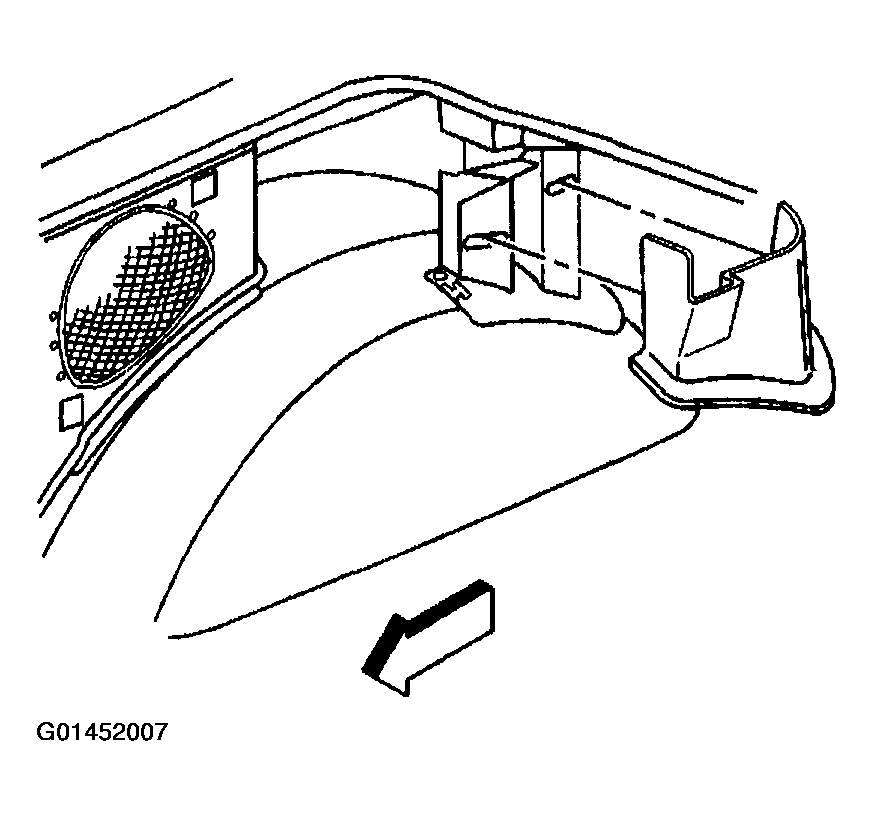

   Fig 4: Removing Trim Panel From Rear Compartment Support

   Courtesy of GENERAL MOTORS CORP.
6. Remove the side trim panel.
7. Reposition the carpet away from the wheel house.

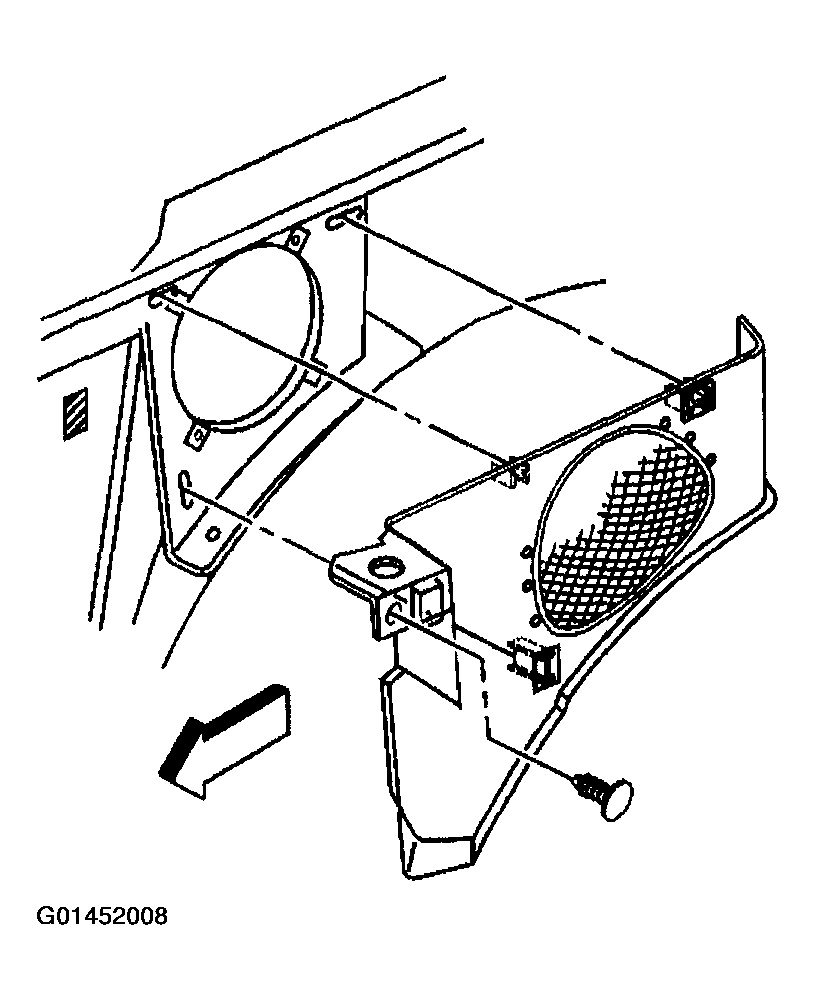

   Fig 5: Side Trim Panel

   Courtesy of GENERAL MOTORS CORP.
8. Disconnect the electrical connector from the actuator.
9. Remove the nut attaching the actuator.
10. Remove the actuator.
    Fig 6: Removing Nut Attaching Actuator

    Courtesy of GENERAL MOTORS CORP.
