Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the actuator.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nut attaching the actuator.

    Tighten

    Tighten the fuel filler door release actuator nut to 2 N.m (18 lb in).

  3. Connect the electrical connection.
  4. Install the cable to the fuel pocket.
  5. Install the nut attaching the fuel filler door release cable to the fuel filler pocket.

    Tighten

    Tighten the fuel filler door release cable nut to 3 N.m (27 lb in).

    Fig 1: Installing Nut Attaching Actuator
    G01452010Courtesy of GENERAL MOTORS CORP.
  6. Install the wheelhouse liner panel with the upper outer bolt.
  7. Install the remaining upper bolts.
  8. Position the lower front corner of the wheelhouse liner panel behind the door opening finish panel and install the attaching bolt.
  9. Install the remaining bolts attaching the wheelhouse liner panel.

    Tighten

    Tighten the wheelhouse liner panel bolts to 2 N.m (18 lb in).

  10. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.

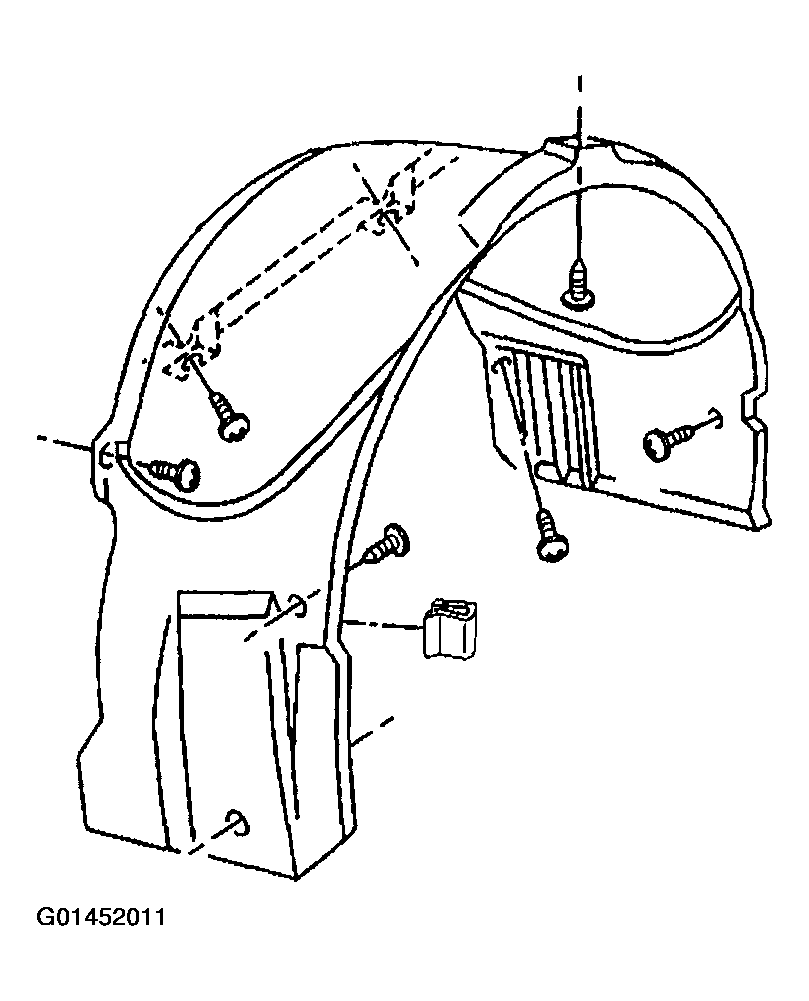

    Fig 2: Wheelhouse Liner Panel
    G01452011Courtesy of GENERAL MOTORS CORP.
  11. Reposition the rear floor carpet over the wheelhouse.
  12. Install the stowage compartment support trim panel.

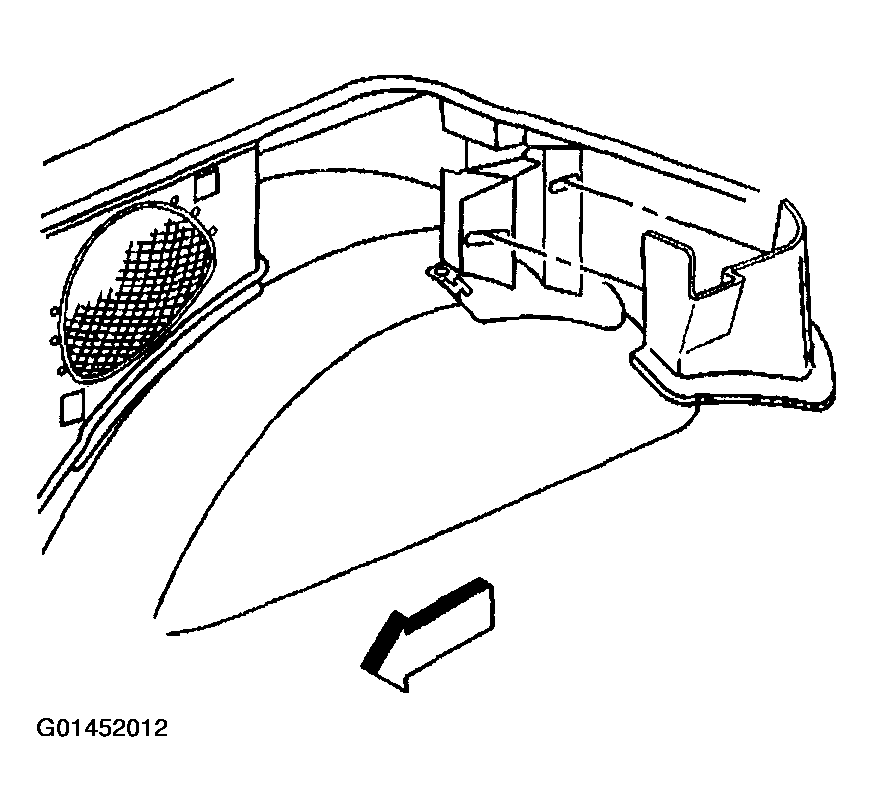

    Fig 3: Stowage Compartment Support Trim Panel
    G01452012Courtesy of GENERAL MOTORS CORP.
  13. Install the side trim panel.

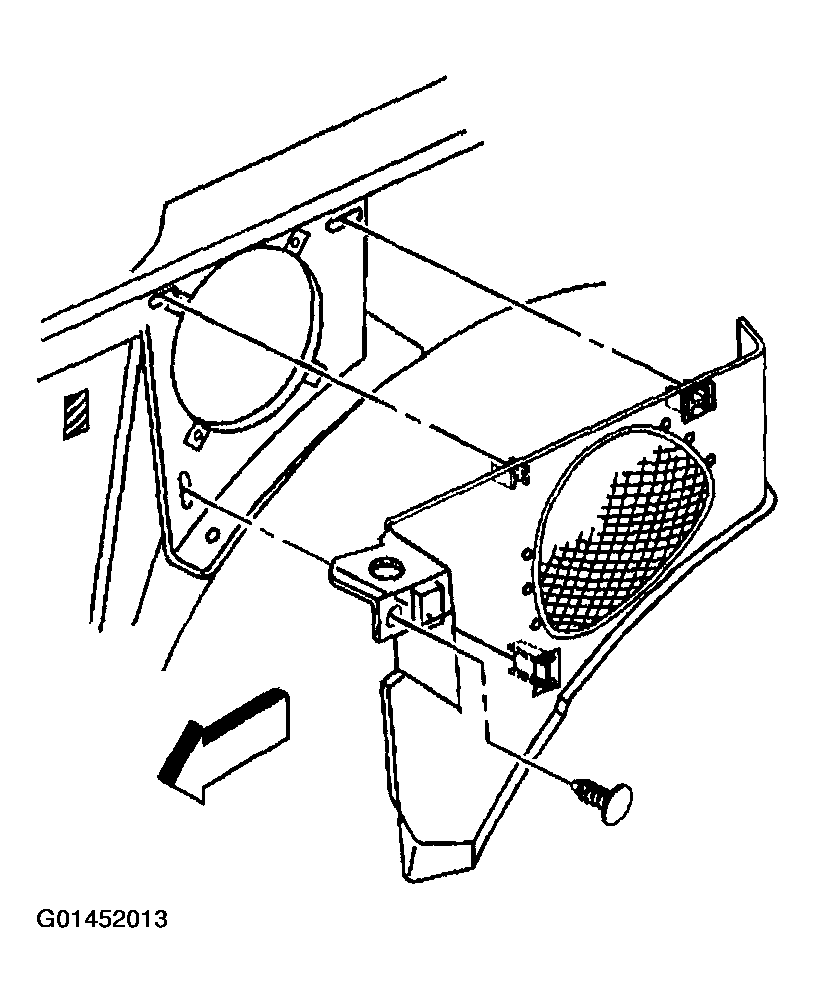

    Fig 4: Side Trim Panel
    G01452013Courtesy of GENERAL MOTORS CORP.
