Symptom List

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

Refer to a symptom diagnostic procedure from the following list in order to diagnose the symptom:

See Fig 1
See Fig 7
See Fig 8
See Fig 10

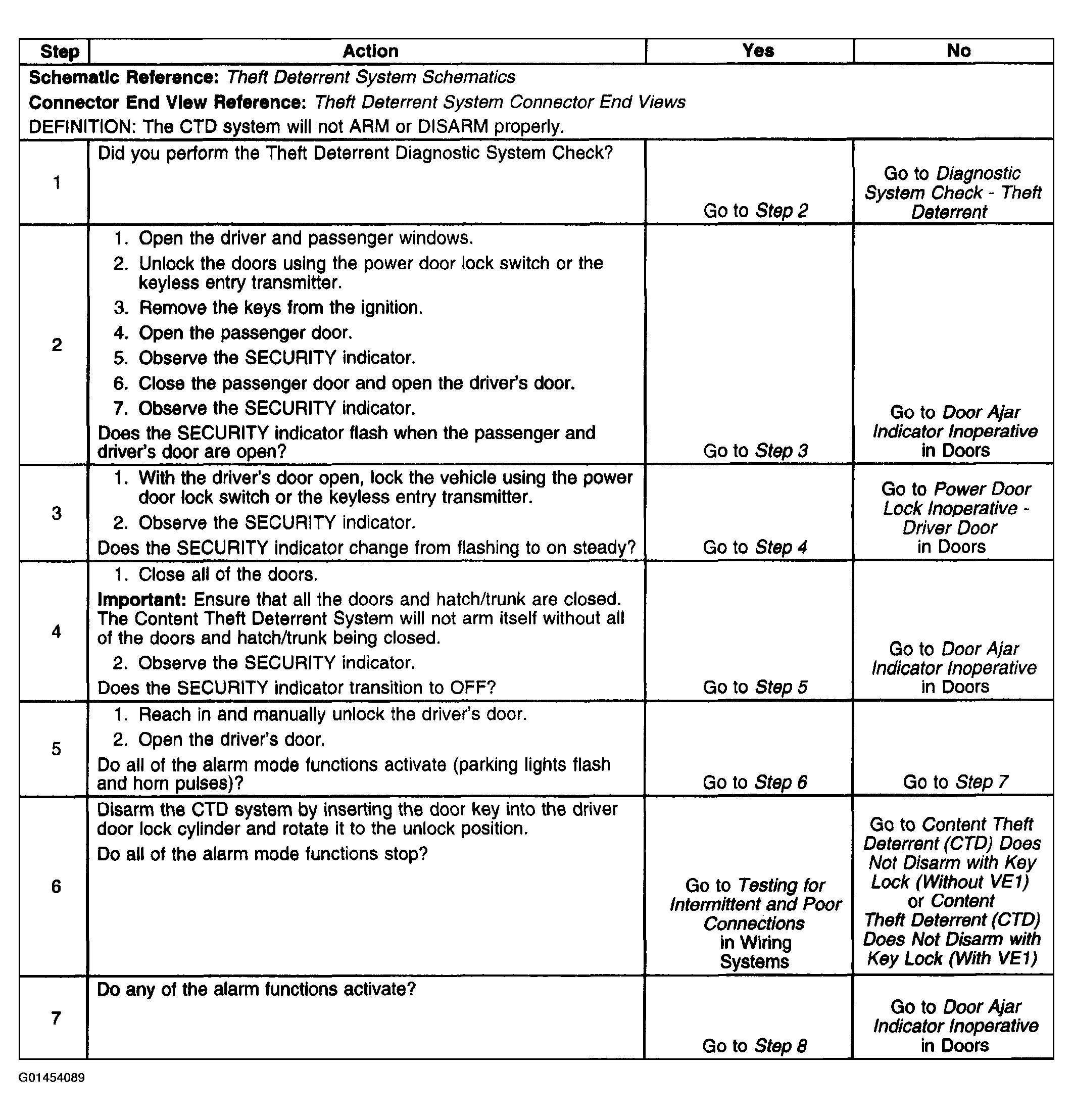

Fig 1: Content Theft Deterrent Alarm Mode Inoperative (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

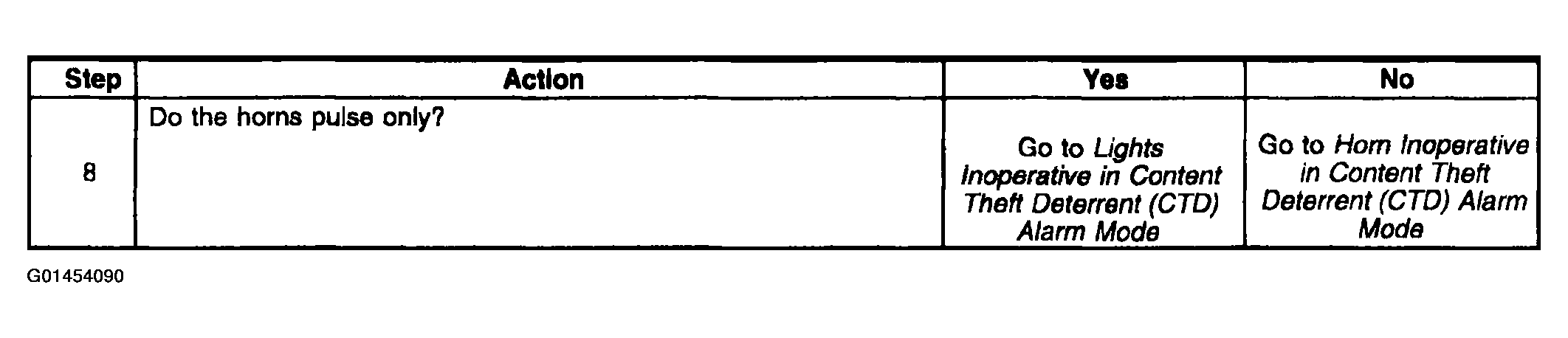

Fig 2: Content Theft Deterrent Alarm Mode Inoperative (2 Of 2)

G01454090

Courtesy of GENERAL MOTORS CORP.

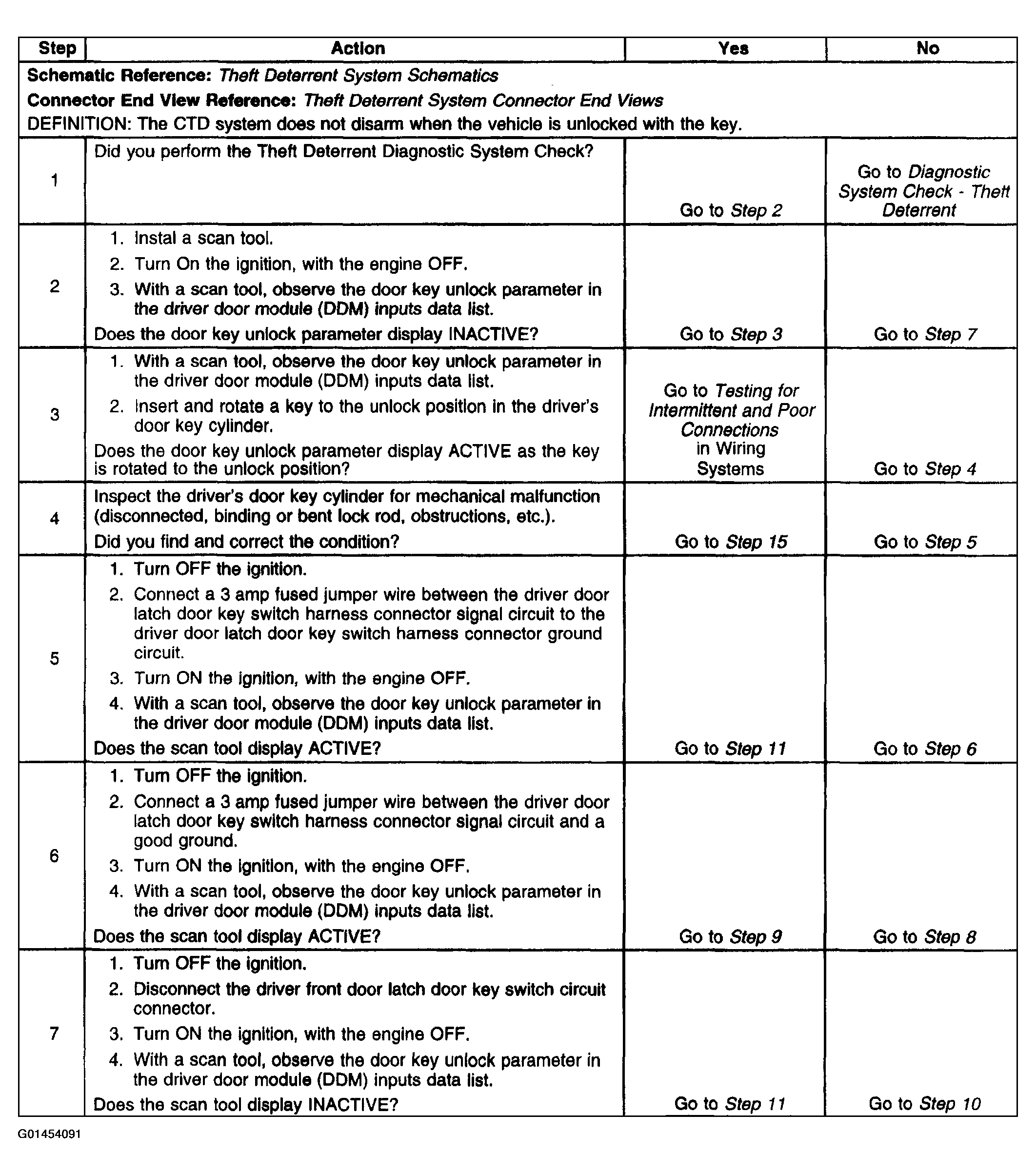

Fig 3: Content Theft Deterrent Does Not Disarm (Without VE1) (1 Of 2)

G01454091

Courtesy of GENERAL MOTORS CORP.

Fig 4: Content Theft Deterrent Does Not Disarm (Without VE1) (2 Of 2)

G01454092

Courtesy of GENERAL MOTORS CORP.

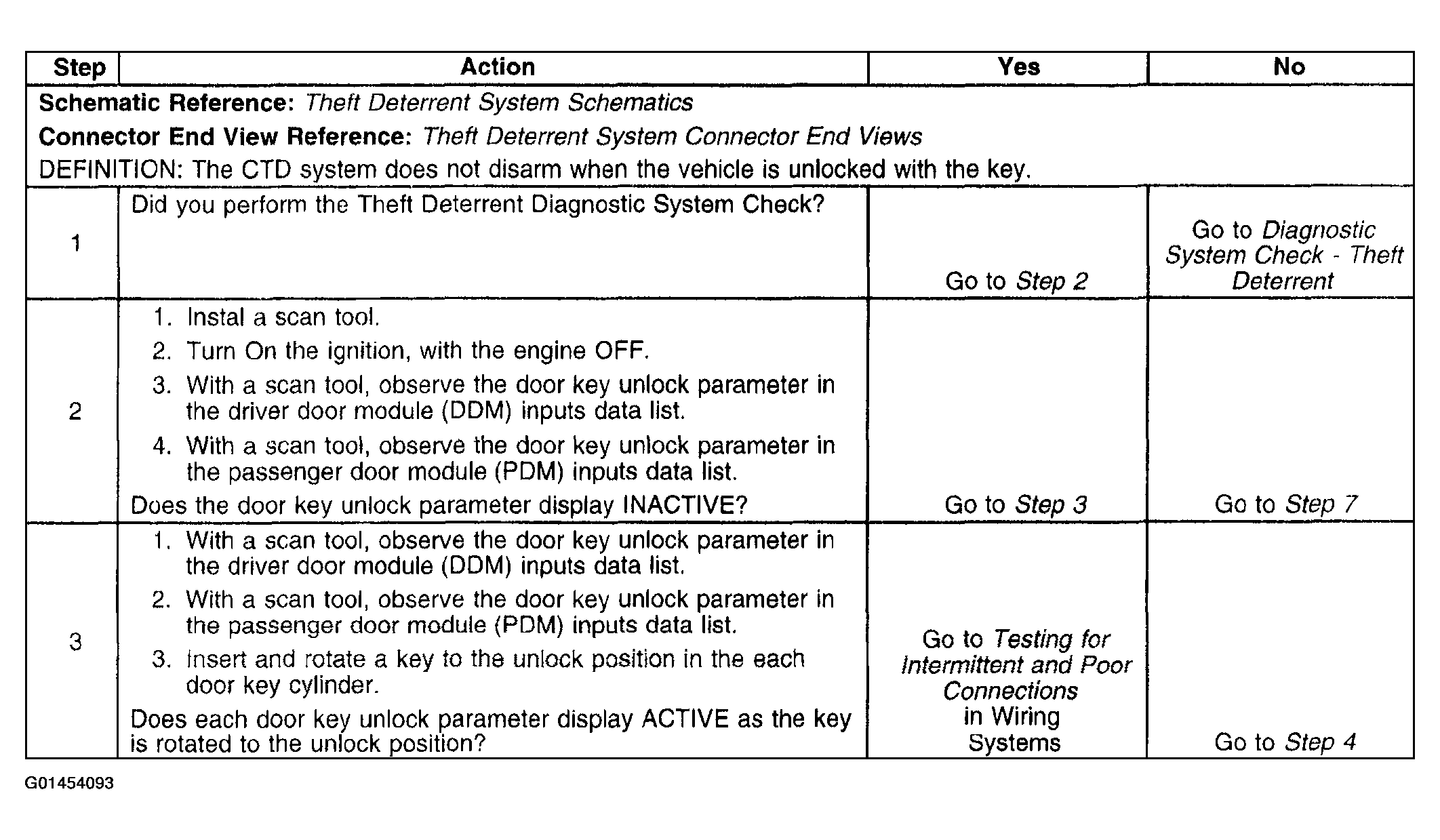

Fig 5: Content Theft Deterrent Does Not Disarm (With VE1) (1 Of 2)

G01454093

Courtesy of GENERAL MOTORS CORP.

Fig 6: Content Theft Deterrent Does Not Disarm (With VE1) (2 Of 2)

G01454094

Courtesy of GENERAL MOTORS CORP.

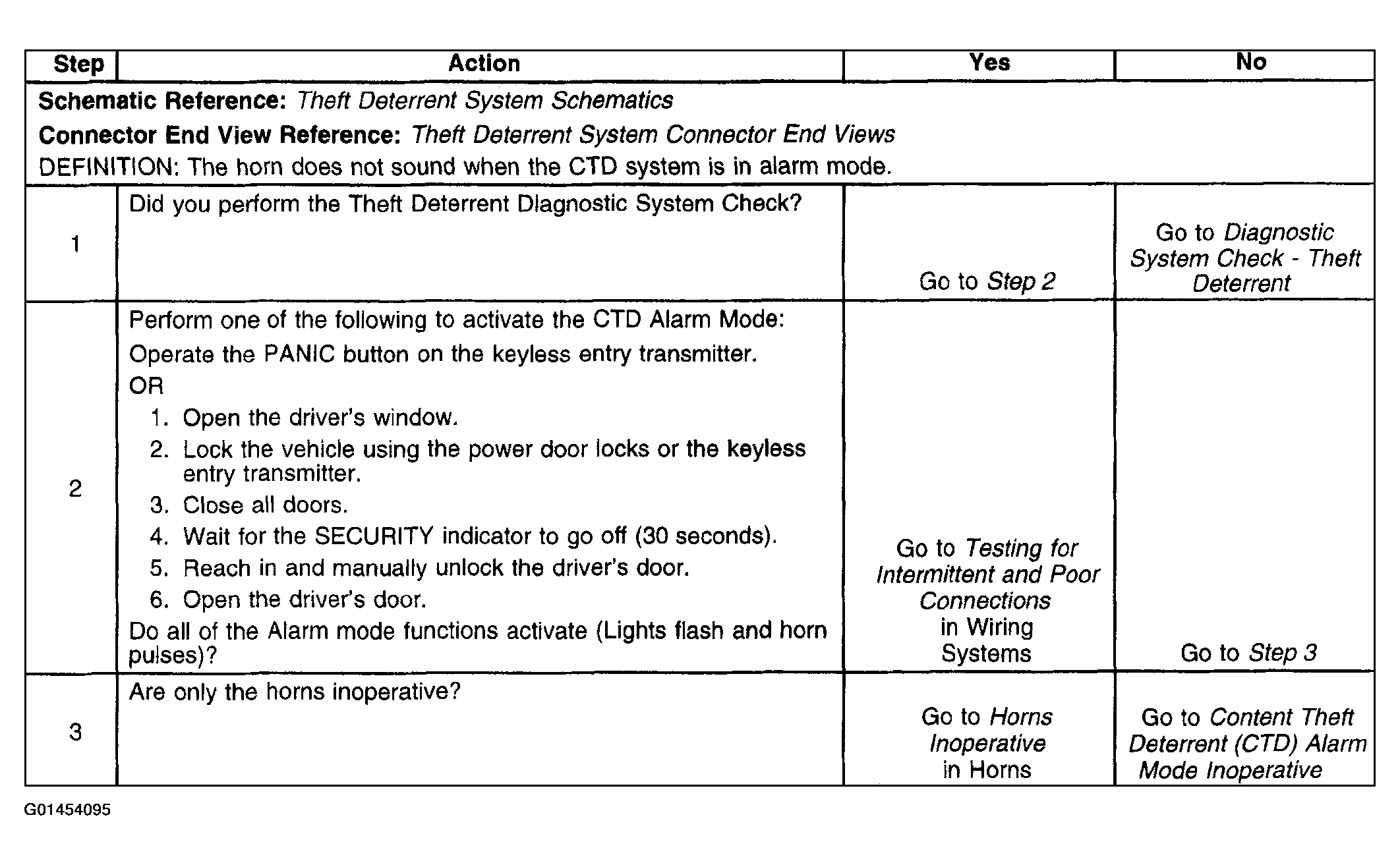

Fig 7: Horn Inoperative In Content Theft Deterrent Alarm Mode

G01454095

Courtesy of GENERAL MOTORS CORP.

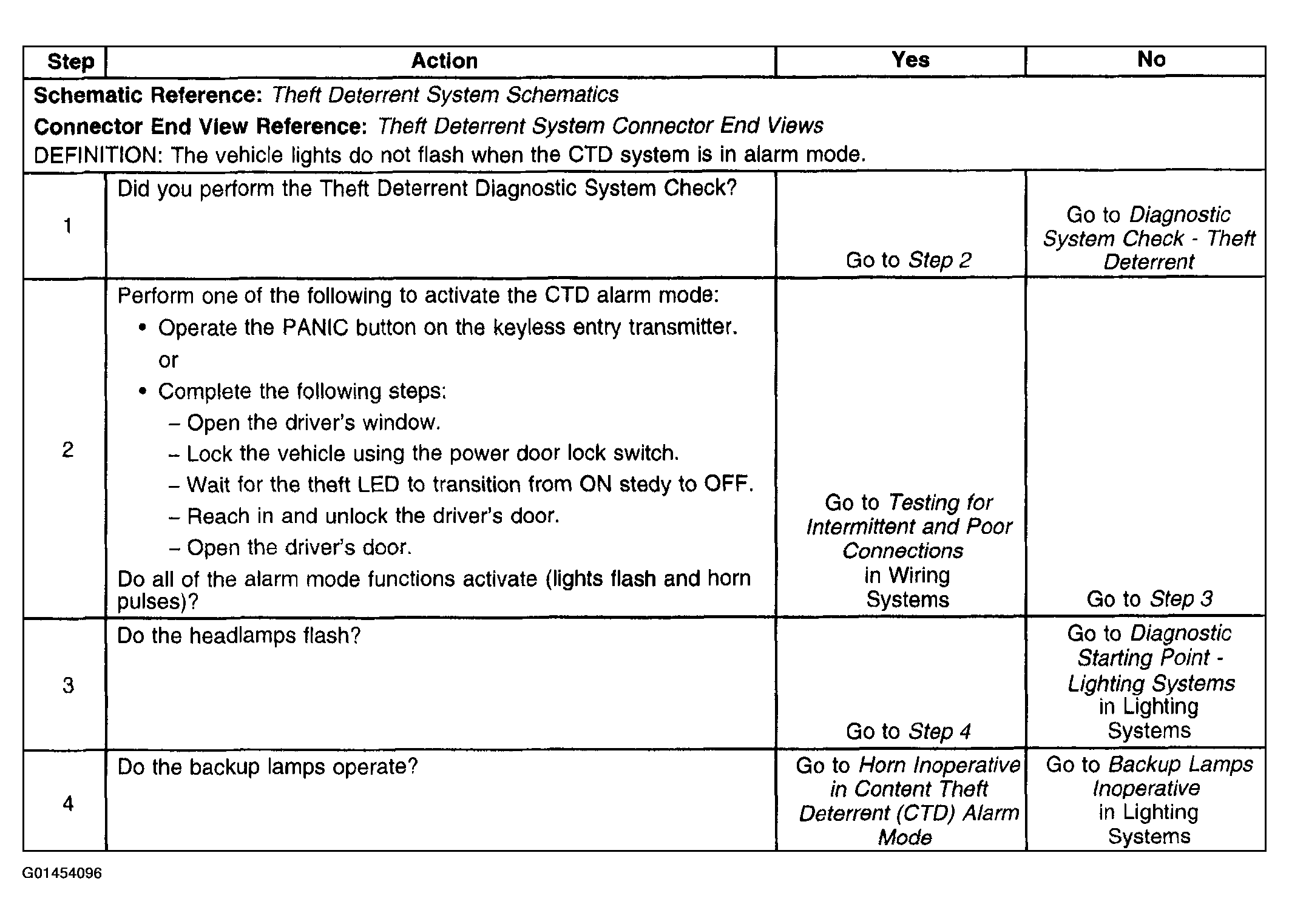

Fig 8: Lights Inoperative In Content Theft Deterrent Alarm Mode

G01454096

Courtesy of GENERAL MOTORS CORP.

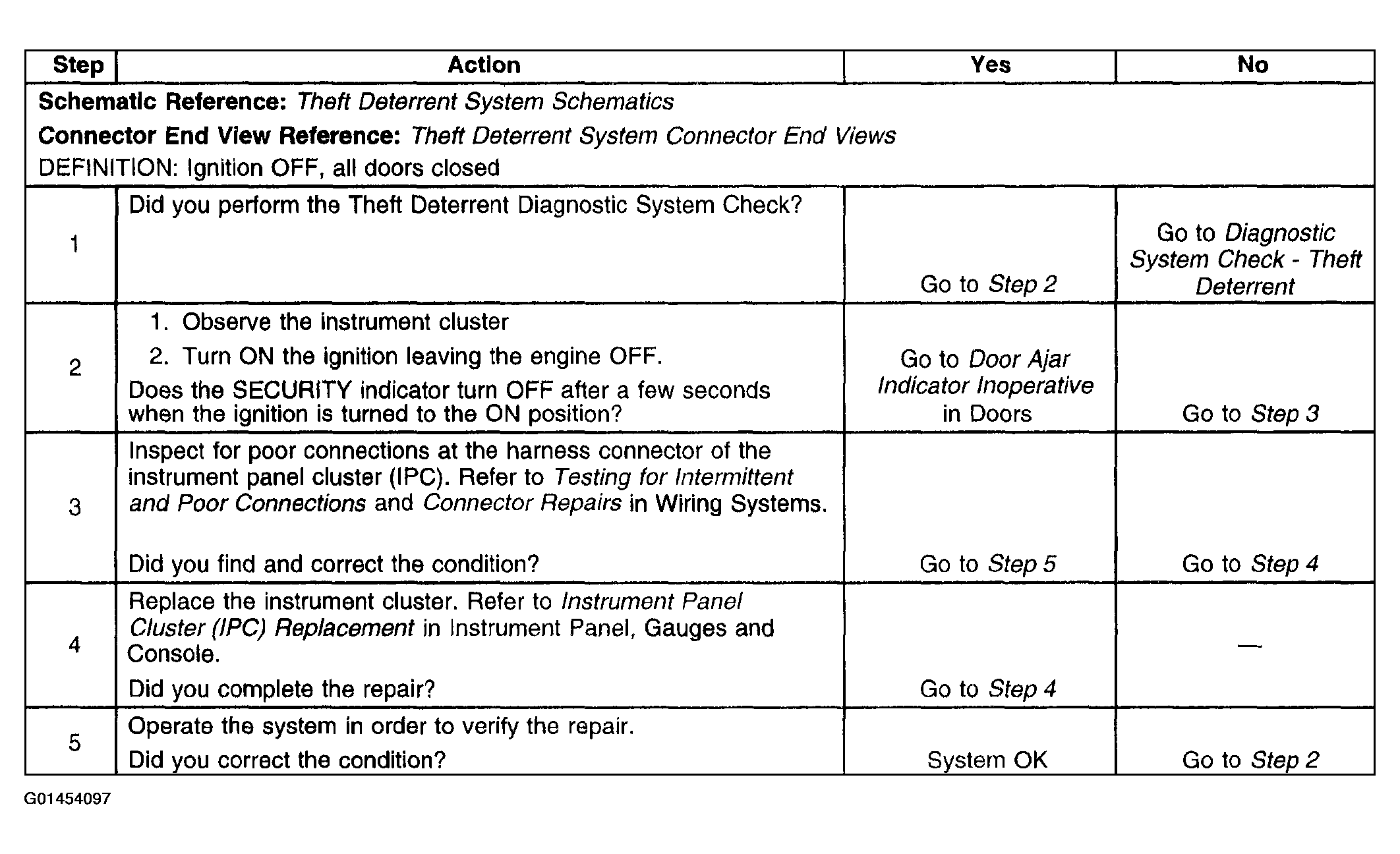

Fig 9: Security Indicator Always On Or Flashing

G01454097

Courtesy of GENERAL MOTORS CORP.

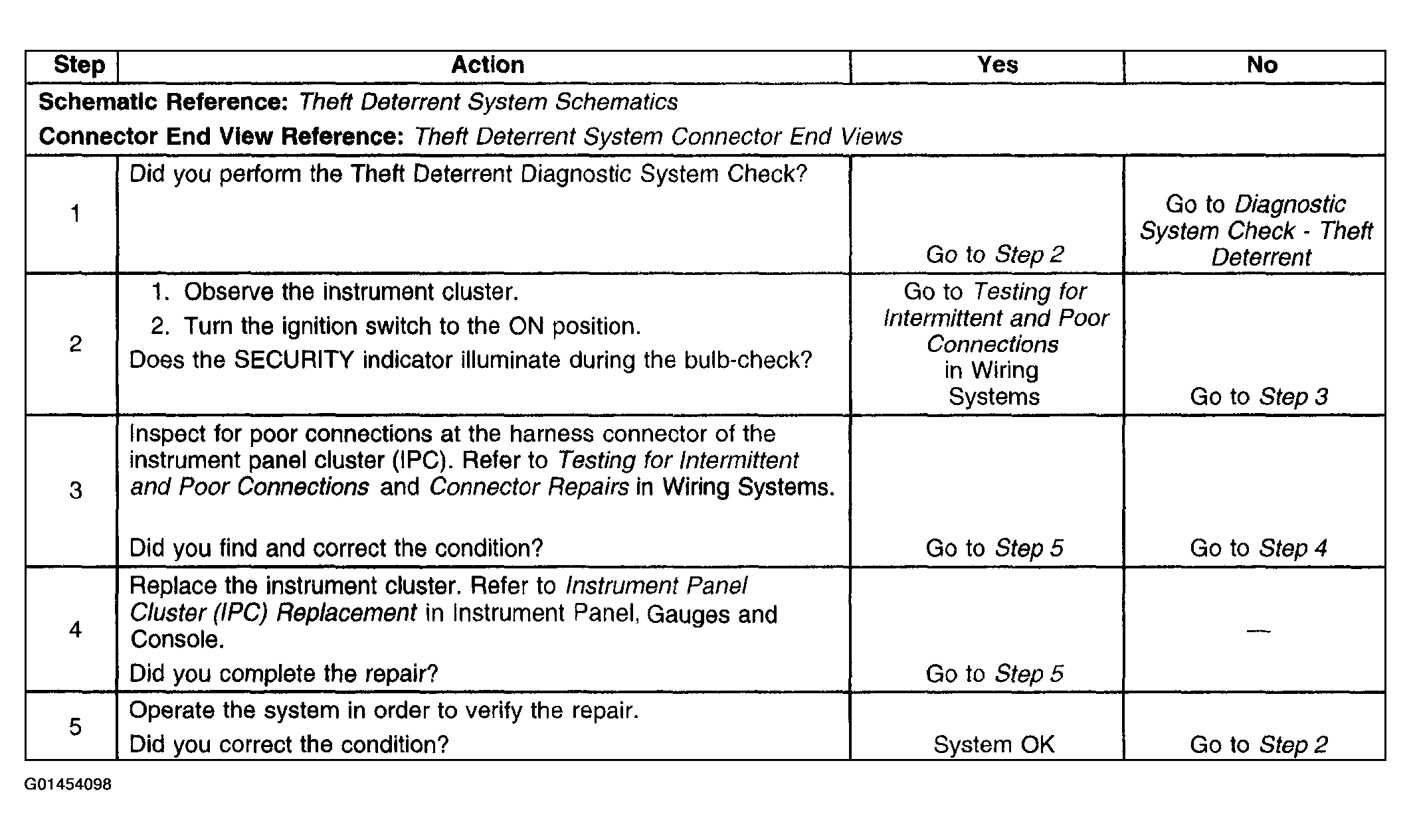

Fig 10: Security Indicator Inoperative

G01454098

Courtesy of GENERAL MOTORS CORP.
